Load Cell Pins/ pin load: The Inline Force Measurement Solution
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7505L
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~50t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7505L
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~50t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load loadpin, load cell pins, pin load
Load Cell Pins/ pin load: The Inline Force Measurement Solution
Our Load Cell Pins/ pin load is a highly versatile and engineered sensor designed to replace existing mechanical pins, bolts, or axles in your equipment. By doing so, it transforms a standard structural component into a precise, inline force measurement device without requiring major design changes.
Ningbo Saintbond Load Cell Pins/ pin load is ideal for applications where space is limited and reliability is critical, our pin load cells provide accurate data for monitoring, control, and safety systems.

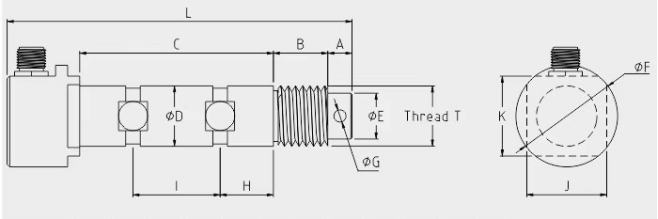

LC7505L Loadpin Dimension:mm
| Capacity | A | B | C | D | E | F | G | H | I | J | K | L | T |
| (Ton) | (mm) | ||||||||||||
| 1/2/3t | 10 | 16 | 59 | 19 | 13 | 32 | 5 | 16 | 27 | 25 | 26 | 115 | 3/4"×10TPI UNC |
| 6.5t | 10 | 22.5 | 80 | 25 | 19 | 42 | 5 | 22 | 36 | 33 | 34 | 142.5 | 1"×8TPI UNC |
| 12t | 15 | 31.5 | 115 | 35 | 25 | 52 | 8.5 | 32 | 51 | 41 | 42 | 191.5 | 1-3/8"×6TPI UNC |
| 25t | 20 | 46 | 165 | 50.8 | 42 | 63 | 11 | 46 | 73 | 54 | 55 | 266 | 2"×4.5TPI UNC |
| 55t | 25 | 63 | 235 | 70 | 62 | 88 | 15 | 65 | 105 | 74 | 75 | 358 | 2-3/4"×4TPI UNC |
LC7505L Loadpin Technical Parameter:
| Rated Load: | 1~50t | ||
| Sensitivity: | (1.0±0.1%) m V/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.5% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.05% F.S | Ultimate Over Load: | 400%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/68 |
| Input Resistance: | 400Ω±20Ω | Element Material: | Alloy / Stainless Steel |
| Output Resistance: | 350Ω±3Ω | Cable: | Length=L:5m~16m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
LC7505L Loadpin Typical Applications:
Load Cell Pins/ pin loads are the perfect solution for a wide range of industries and equipment:
Lifting & Hoisting: Overhead cranes, hoists, winches, and below-the-hook devices.
Marine & Offshore: Mooring systems, anchor tension monitoring, and deck machinery.
Construction:Jacking systems, cable tensioning, and structural testing.
Industrial Automation: Robotic arm force feedback, process control, and weigh modules.
Agriculture:Tractor implement force monitoring.
Load Cell Pins/ pin loads are the perfect solution for a wide range of industries and equipment:
Lifting & Hoisting: Overhead cranes, hoists, winches, and below-the-hook devices.
Marine & Offshore: Mooring systems, anchor tension monitoring, and deck machinery.
Construction:Jacking systems, cable tensioning, and structural testing.
Industrial Automation: Robotic arm force feedback, process control, and weigh modules.
Agriculture:Tractor implement force monitoring.
Why Choose Ningbo Saintbond Loadpin ?
By integrating Ningbo Saintbond Load Cell Pins/ pin load into your design, you gain a critical tool for optimizing performance, ensuring operational safety, and preventing costly overloads. It’s the smart, simple way to add precision force measurement to your machinery.
By integrating Ningbo Saintbond Load Cell Pins/ pin load into your design, you gain a critical tool for optimizing performance, ensuring operational safety, and preventing costly overloads. It’s the smart, simple way to add precision force measurement to your machinery.
Contact us today to find the right load cell pins for your application.

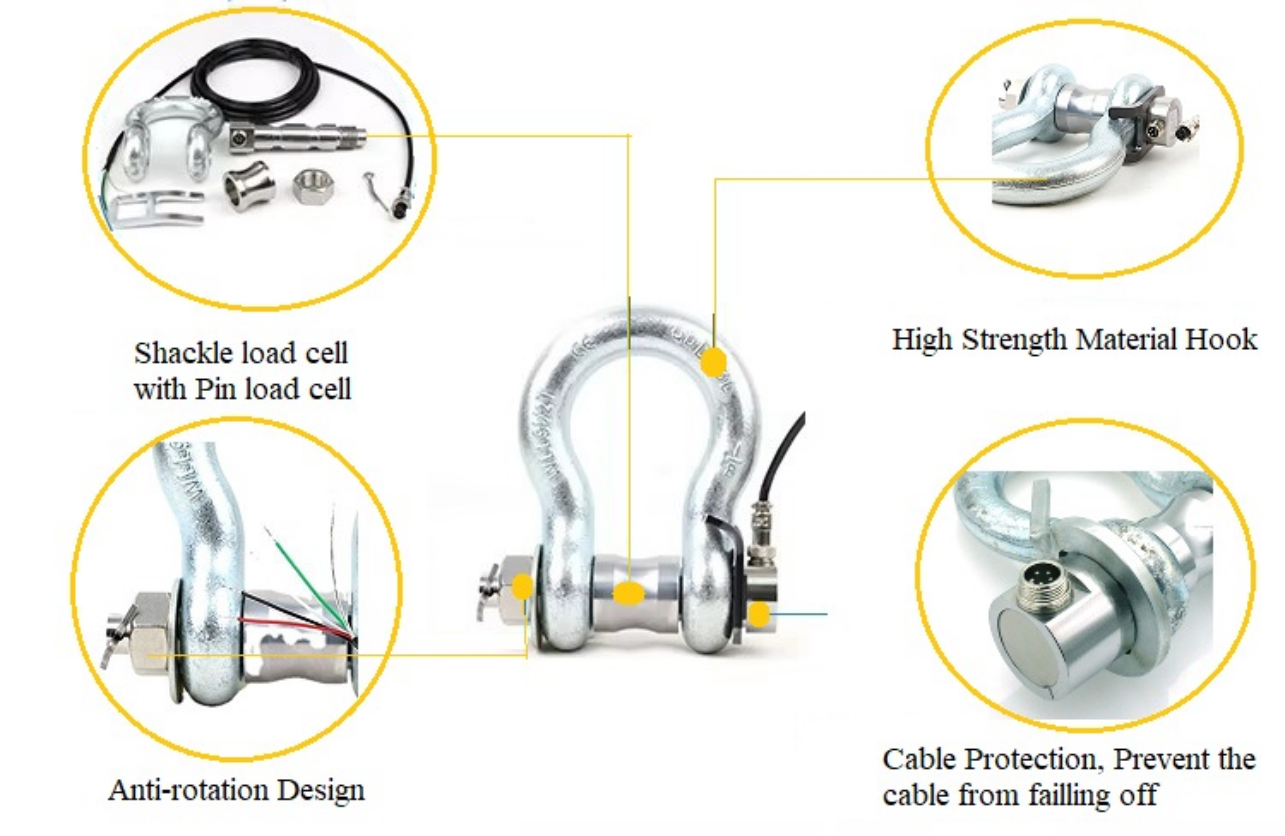

LC7505L Loadpin Application Examples:
