Weighbridge load cell
LC110B
load cell for weigh bridge, truck load cell, Weighbridge load cell is a type of transducer that converts the force exerted by a vehicle’s weight into an electrical signal. This signal can then be processed and displayed as a weight value, allowing for the accurate determination of the vehicle’s load.
Quantity:
Weighbridge load cell also commonly known as a load cell for weigh bridge,truck load cell, are designed for truck and rail scales. Multiple load cells are used in each installation. Our range includes alloy tool steel truck load cell and stainless steel truck load cell offered with environmental ratings up to IP68 suitable for demanding situations where water and dirt are common. Each load cell for weigh bridge can be supplied individually or combined with our state of the art instrumentation for a complete weigh system.

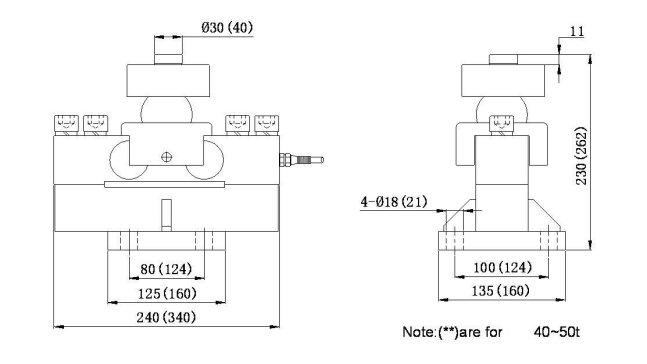

Dimention:mm
Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |
