Load Cell Miniature
LC5005
Load Cell Miniature compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Compact load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. force sensor 100kg for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs.
Quantity:
Load Cell Miniature compact stainless steel design with IP67+ rating, ±0.03%FS accuracy. Capacities 50kg-50t, overload protected. Compact load cell Ideal for platform scales, silos, manufacturing, logistics, and process control, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc. force sensor 100kg for small weights Offers mV/V/digital outputs.Choose from different capacities and configurations to meet your application needs. (load cell miniature, force sensor 100kg, compact load cell )
Load Cell Miniature Features:
✅ Low-profile sealing
✅ Space-saving design
✅ High quality Alloy steel/stainless steel options
✅ Overload protection
✅ Excellent EMI resistance
✅Easy to install;
✅Height of low rigidity;
✅High precision eccentric load resistance ability;
✅ Explosion-proof options

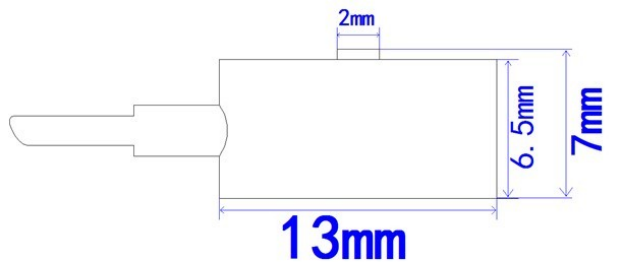

Load Cell Miniature Dimension:
Load Cell Miniature Technical Parameter:
| Rated Load | 0～5/10/20/50/100/500kg | Input Impedence: | 350 ±10Ω |
| Output Sensitivity | 1.5±10%mV/V | Output Impedence: | 350 ± 10Ω |
| Non-linearity | 0.5~1 % F.S. | Insulation Resistance: | ≥1000MΩ/50V DC |
| Recommended Excitation Vol.: | 5~10VDC/AC | Temp. Compensation Range: | - 10ºC ~ 60 ºC |
| Max voltage: | 15V DC/AC | Operating Temp. Range: | - 20 ºC~ 80 ºC |
| Repetitiveness: | 0.1 % F.S. | Safety Overload: | 120 % F.S. |
| Zero Output: | ±0.5 % F.S. | Limit Overload: | 150 % F.S. |
| Hysteresis: | 0.5% F.S. | Cable Size: | 4 Core Φ2mm×2000mm |
| Creep(30min): | 0.5% F.S. | Protection Class: | IP67 |
| TC SANP: | 0.01% F.S./ºC | Material Quality: | Stainless Steel/ Alloy steel |
| TCO: | 0.01 % F.S. /ºC | Tired: | 300 000Times |
