rtnc3 Ring Torsion Load Cell
RTN
Ningbo Saintbond RTNC3 Ring Torsion Load Cell
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC504B
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 1000 ~ 470000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC504B
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 1000 ~ 470000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15 ~ 35Day
Quantity:
rtnc3 Ring Torsion Load Cell, load cell 10 ton, load cell manufacturing rtnc3 Ring Torsion Load Cell, load cell 10 ton, load cell manufacturing rtnc3 Ring Torsion Load Cell, load cell 10 ton, load cell manufacturing rtnc3 Ring Torsion Load Cell, load cell 10 ton, load cell manufacturing
Ningbo Saintbond RTNC3 Ring Torsion Load Cell
Ningbo Saintbond, a specialized load cell manufacturing in the field of precision force measurement, proudly presents the RTNC3 Ring Torsion Load Cell. This high-performance sensor represents the culmination of advanced load cell manufacturing expertise, engineered for applications demanding exceptional reliability, robustness, and accuracy under challenging conditions.
The RTNC3 Ring Torsion Load Cell utilizes a unique ring torsion principle for force measurement. This design offers inherent advantages, including excellent resistance to off-center and moment loads, making it significantly less sensitive to the point of force application compared to conventional shear beam cells. Its robust, sealed stainless steel construction ensures long-term stability and durability in harsh industrial environments.

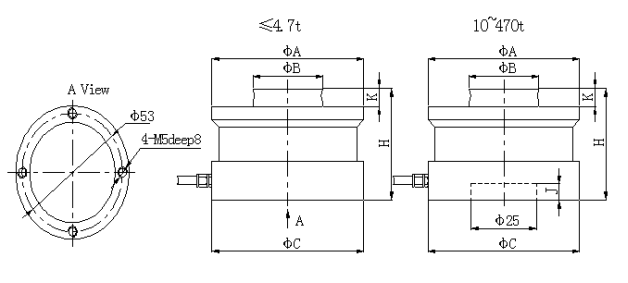

LC504B RTNC3 Ring Torsion Load Cell Dimension: mm
| Cap./Size | 1t | 2.2t | 4.7t | 10t | 15t | 22t | 33t | 47t | 68t | 100t | 150t | 220t | 330t | 470t |
| φA | 49 | 49 | 49 | 74 | 75 | 75 | 95 | 130 | 130 | 150 | 150 | 22.5 | 225 | 270 |
| φB | 20 | 20 | 20 | 30 | 30 | 30 | 40 | 60 | 60 | 70 | 70 | 100 | 100 | 120 |
| φC | 60 | 60 | 60 | 75 | 75 | 75 | 95 | 130 | 130 | 150 | 151 | 22.5 | 225 | 270 |
| H | 43 | 43 | 43 | 50 | 50 | 50 | 65 | 75 | 85 | 90 | 100 | 130 | 145 | 170 |
| J | - | - | - | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 |
| K | 7.5 | 7.5 | 7.5 | 6.5 | 6.5 | 6.5 | 10 | 14 | 14 | 16 | 16 | 24 | 24 | 28 |
| R | 15 | 15 | 15 | 25.4 | 25.4 | 25.4 | 50 | 60 | - | - | - | - | - | - |
| Deep | 2.2 | 2.2 | 2.2 | 3.3 | 3.3 | 3.3 | 3.3 | 5.1 | - | - | - | - | - | - |
LC504B RTNC3 Ring Torsion Load Cell Technical Parameter:
| Rated Load: | 1/2.2/4.7/10/15/22/33/47/68/100/150/220/330/470t | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy / Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
LC504B RTNC3 Ring Torsion Load Cell Key Features & Specifications:
Advanced Operating Principle: The ring torsion design provides superior performance where load introduction may not be perfectly aligned.
High Capacity Range: Available in various capacities, including a robust load cell 10 ton model, ideal for heavy-duty weighing and force monitoring.
Exceptional Environmental Protection: Welded stainless steel housing with IP67/IP68 rating, offering outstanding resistance to dust, moisture, and temporary immersion.
High Accuracy: Meets OIML R60 C3 and NTEP-approved accuracy classes (III L / C3 and above), ensuring reliable and legally-for-trade measurements.
Overload Protection: Designed with high safety factors, providing reliable resistance to shock and side loads.
Versatile Installation: Suitable for both tension and compression loading, with options for swivel heads and rod ends for easy integration.
Advanced Operating Principle: The ring torsion design provides superior performance where load introduction may not be perfectly aligned.
High Capacity Range: Available in various capacities, including a robust load cell 10 ton model, ideal for heavy-duty weighing and force monitoring.
Exceptional Environmental Protection: Welded stainless steel housing with IP67/IP68 rating, offering outstanding resistance to dust, moisture, and temporary immersion.
High Accuracy: Meets OIML R60 C3 and NTEP-approved accuracy classes (III L / C3 and above), ensuring reliable and legally-for-trade measurements.
Overload Protection: Designed with high safety factors, providing reliable resistance to shock and side loads.
Versatile Installation: Suitable for both tension and compression loading, with options for swivel heads and rod ends for easy integration.
LC504B RTNC3 Ring Torsion Load Cell Typical Applications:
The Ningbo Saintbond RTNC3 Ring Torsion Load Cell is perfectly suited for applications requiring ruggedness and high performance, such as:
þ Tank, Silo, and Hopper Weighing Systems
þ Large Platform Scales and Weighbridges
þ Force Measurement in Crane and Lifting Safety Systems
þ Process Control and Batching Systems
þ Heavy-Duty Industrial Weighing
The Ningbo Saintbond RTNC3 Ring Torsion Load Cell is perfectly suited for applications requiring ruggedness and high performance, such as:
þ Tank, Silo, and Hopper Weighing Systems
þ Large Platform Scales and Weighbridges
þ Force Measurement in Crane and Lifting Safety Systems
þ Process Control and Batching Systems
þ Heavy-Duty Industrial Weighing
Why Choose Ningbo Saintbond?
As a professional load cell manufacturing company, Ningbo Saintbond combines innovative design with rigorous production and quality control processes. We ensure every RTNC3 Ring Torsion Load Cell delivers consistent, accurate, and dependable performance, backed by comprehensive technical support.
As a professional load cell manufacturing company, Ningbo Saintbond combines innovative design with rigorous production and quality control processes. We ensure every RTNC3 Ring Torsion Load Cell delivers consistent, accurate, and dependable performance, backed by comprehensive technical support.
For precise, durable, and high-capacity force measurement solutions like the RTNC3 Ring Torsion Load Cell, Ningbo Saintbond is your trusted partner.
