Pancake type Load cell
LC503

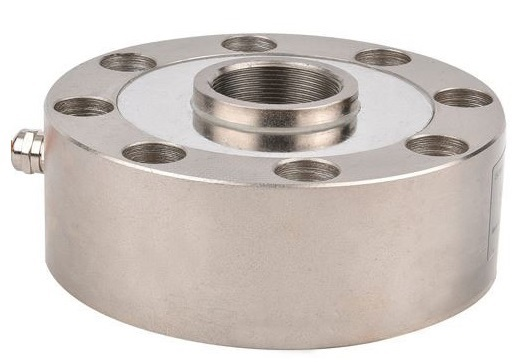

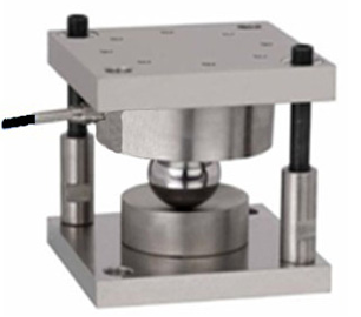

High-precision LC503 Weighing Pancake type Load cell designed for accurate weight measurement in harsh environments. Features robust stainless steel construction, IP67+ protection, and capacities from 500kg to 30t , 1000 kg load cell price. Weighing Pancake type Load cell Ideal for truck scales, silos, and industrial weighing. Provides ±0.03% accuracy, easy installation, and long-term reliability. Suitable for static & dynamic weighing with excellent overload protection. Customizable options available.
Quantity:
High-precision LC503 Weighing Pancake type Load cell designed for accurate weight measurement in harsh environments. Features robust alloy steel / stainless steel construction, IP67+ protection, and capacities from 500kg to 30t , 1000 kg load cell price. Weighing Pancake type Load cell Ideal for truck scales, silos, and industrial weighing. Provides ±0.03% accuracy, easy installation, and long-term reliability. Suitable for static & dynamic weighing with excellent overload protection. Customizable options available. ( pancake type load cell, 1000 kg load cell price, weighing pancake type load cell )

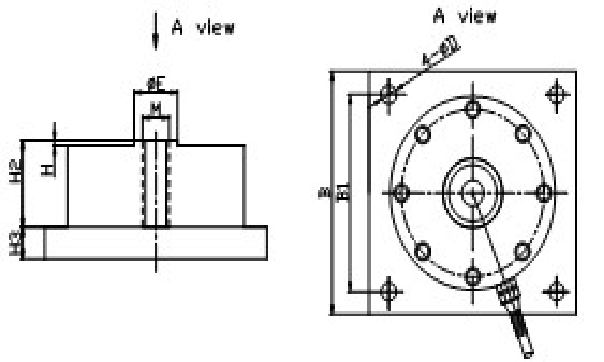

LC503 Weighing Pancake type Load cell Dimension:
| Cap./Size | φE | φD | M | H2 | H3 | H | B | B1 |
| 0.5/1/2/3t | 29 | 11 | 16 | 34.8 | 18 | 3 | 138 | 112 |
| 5/10t | 39 | 13 | 31×2 | 47.8 | 20 | 6.4 | 160 | 130 |
| 20/30t | 50.4 | 18 | 39×3 | 57.2 | 25 | 6.4 | 170 | 133 |
| Cap. / Size | B | B1 | H | H1 | H2 | C |
| 0.5-3t | 138 | 112 | 106.7 | 18 | 18 | 11 |
| 5~10t | 160 | 130 | 143.9 | 20 | 20 | 13 |
| 20~30t | 170 | 133 | 187.6 | 25 | 25 | 18 |
| 40~60t | 220 | 180 | 223.8 | 30 | 30 | 22 |
LC503 Weighing Pancake type Load cell Technical Parameter:
| Rated Load: | 0.5/1/2/3/5/10/25/30t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 703±2Ω | Cable: | 12m~20m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/OIML R60 |
