Ring type Load Cell
LC504
Torsional Ring type Load Cell / ring load cell– High-precision sensor designed to measure torque and rotational forces in real-time. Ideal for industrial automation, robotics, and torque testing applications. Ring type Load Cell / types of load cells features robust construction, high accuracy (±0.1%), and wide measurement ranges. Ring type Load Cell / types of load cells compact design with easy integration via analog or digital outputs. IP-rated for harsh environments. Reliable performance for quality control, R&D, and production monitoring.
Quantity:
Torsional Ring type Load Cell / ring load cell– High-precision sensor designed to measure torque and rotational forces in real-time. Ideal for industrial automation, robotics, and torque testing applications. Ring type Load Cell / types of load cells features robust construction, high accuracy (±0.1%), and wide measurement ranges. Ring type Load Cell / types of load cells compact design with easy integration via analog or digital outputs. IP-rated for harsh environments. Reliable performance for quality control, R&D, and production monitoring. ( types of load cells, ring load cell, ring type load cell )

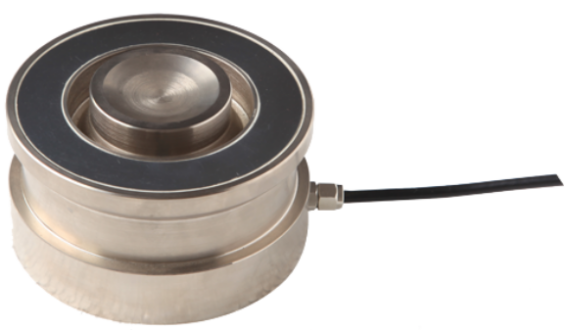

LC504 Ring type Load Cell Characteristics:
✅ LC504A load cells are available for manifold accurate measurement in the capacities 2.2t to 470t.
✅ Alloy steel or Stainless steel, completely welded,oil-proof,waterproof and anti-corrosive gas and medium, suitable for all kinds of environments.
✅ Spoke type,suitable for electronic truck scales,hopper scales, automotive testing equipments other electronic weighing or force measuring fields.

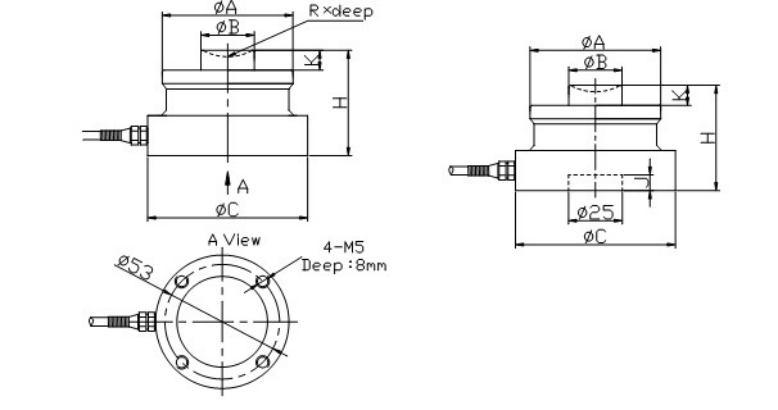

LC504 Ring type Load Cell Dimension:mm

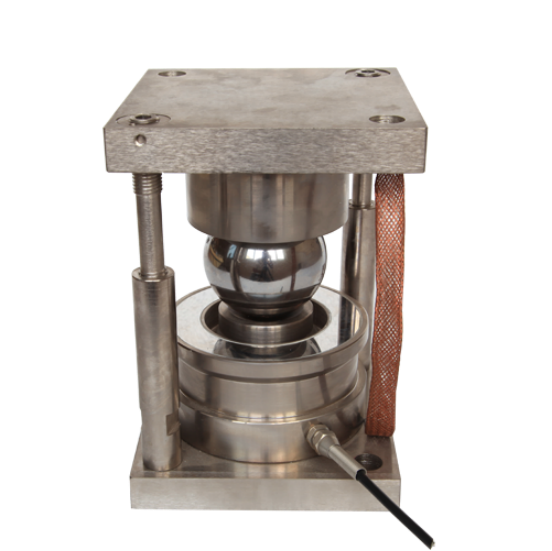

| Cap. | 1t | 2.2t | 4.7t | 10t | 15t | 22t | 33t | 47t | 68t | 100t | 150t | 220t | 330t | 470t |
| φA | 49 | 49 | 49 | 74 | 75 | 75 | 95 | 130 | 130 | 150 | 150 | 22.5 | 225 | 270 |
| φB | 20 | 20 | 20 | 30 | 30 | 30 | 40 | 60 | 60 | 70 | 70 | 100 | 100 | 120 |
| φC | 60 | 60 | 60 | 75 | 75 | 75 | 95 | 130 | 130 | 150 | 151 | 22.5 | 225 | 270 |
| H | 43 | 43 | 43 | 50 | 50 | 50 | 65 | 75 | 85 | 90 | 100 | 130 | 145 | 170 |
| J | - | - | - | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 |
| K | 7.5 | 7.5 | 7.5 | 6.5 | 6.5 | 6.5 | 10 | 14 | 14 | 16 | 16 | 24 | 24 | 28 |
| R | 15 | 15 | 15 | 25.4 | 25.4 | 25.4 | 50 | 60 | - | - | - | - | - | - |
| Deep | 2.2 | 2.2 | 2.2 | 3.3 | 3.3 | 3.3 | 3.3 | 5.1 | - | - | - | - | - | - |
| Cap./Size | A | B | H | H1 | φE |
| 1~4.7t | 94 | 120 | 114.4 | 18 | 13 |
| 10~22t | 94 | 120 | 137.8 | 18 | 13 |
| 33t | 105 | 130 | 181.1 | 22 | 18 |
| 47t | 124 | 160 | 228.7 | 22 | 18 |
LC504 Ring type Load Cell Technical Parameter:
| Rated Load: | 1/2.2/4.7/10/15/22/33/47/68/100/150/220/330/470t | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A:Alloy / Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
