Load Shackle
LC7505-2
Ningbo Saintbond load cell companies: Crane & Lifting Load Cell Specialist
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7505
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~1200t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7505
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~1200t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 sheets
Supply Ability
20000sheets / Month
Country of Origin
China
Stock Time
30Day
Quantity:
load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies load shackle, crane load cell manufacturers, load cell companies
Ningbo Saintbond load cell companies: Crane & Lifting Load Cell Specialist
Ningbo Saintbond is a specialized crane load cell manufacturers and manufacturer of weighing solutions, primarily for the crane and lifting industry.
A Shackle Load Cell is a highly innovative and practical type of force sensor designed to replace a standard shackle pin in a lifting or rigging assembly. It seamlessly integrates into existing systems, transforming ordinary shackles into intelligent, load-monitoring devices. By accurately measuring the tensile force (load) applied to it, it provides critical data for safety, control, and process optimization in countless lifting and weighing applications.
LC7505 Load Shackle Dimension:mm
| Load | Shackle Load | W | D | d | E | P | S | L | O | Weight |
| (t) | (t) | (mm) | (kg) | |||||||
| LC7505-0.5t | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 29 | 37 | 20 | 0.05 |
| LC7505-0.7t | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 31 | 45 | 21.5 | 0.1 |
| LC7505-1t | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 54 | 26 | 0.13 |
| LC7505-1.5t | 1.5 | 19 | 14 | 11 | 27 | 11 | 43 | 62 | 29.5 | 0.22 |
| LC7505-2t | 2 | 20.5 | 16 | 13 | 30 | 13 | 48 | 71.5 | 33 | 0.31 |
| LC7505-3t | 3.25 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 89 | 43 | 0.67 |
| LC7505-4t | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 105 | 51 | 1.14 |
| LC7505-5t | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 121 | 58 | 1.76 |
| LC7505-8t | 8.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 136.5 | 68.5 | 2.58 |
| LC7505-9t | 9.5 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 149.5 | 74 | 3.96 |
| LC7505-10t | 12 | 51.5 | 36 | 33 | 76 | 35 | 119 | 164.5 | 82.5 | 5.06 |
| LC7505-13t | 13.5 | 57 | 39 | 36 | 84 | 38 | 133.5 | 179 | 92 | 7.29 |
| LC7505-15t | 17 | 60.5 | 42 | 39 | 92 | 41 | 146 | 194.5 | 98.5 | 8.75 |
| LC7505-25t | 25 | 73 | 52 | 47 | 106.5 | 57 | 178 | 234 | 127 | 14.22 |
| LC7505-30t | 35 | 82.5 | 60 | 53 | 122 | 61 | 197 | 262.5 | 146 | 21 |
| LC7505-55t | 55 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 339 | 184 | 42.12 |
| LC7505-80t | 85 | 127 | 85 | 76 | 165 | 92 | 330 | 394 | 200 | 74.8 |
| LC7505-100t | 120 | 133.5 | 95 | 92 | 203 | 104.5 | 371.4 | 444 | 228.5 | 123.6 |
| LC7505-150t | 150 | 140 | 110 | 104 | 228.5 | 116 | 368 | 489 | 254 | 165.9 |
| LC7505-200t | 200 | 184 | 130 | 115 | 270 | 115 | 396 | 580 | 280 | 237 |
| LC7505-300t | 300 | 200 | 150 | 130 | 320 | 130 | 450 | 644 | 300 | 363 |
| LC7505-500t | 500 | 240 | 185 | 165 | 390 | 165 | 557.5 | 779 | 360 | 684 |
| LC7505-800t | 800 | 300 | 240 | 207 | 493 | 207 | 660 | 952 | 440 | 1313 |
| LC7505-1000t | 1000 | 390 | 270 | 240 | 556 | 240 | 780.5 | 1136 | 560 | 2024 |
| LC7505-1200t | 1250 | 400 | 300 | 260 | 620 | 260 | 850 | 1225 | 560 | 2511 |
LC7505 Load Shackle Technical Parameter:
| Rated Load: | 1~1200t | ||
| Sensitivity: | (1.0±0.1%) m V/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.5% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.05% F.S | Ultimate Over Load: | 400%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/68 |
| Input Resistance: | 400Ω±20Ω | Element Material: | Alloy / Stainless Steel |
| Output Resistance: | 350Ω±3Ω | Cable: | Length=L:5m~16m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
How Does Load Shackle Work?
The working principle is based on strain gauge technology. The load cell body, which is the shackle pin itself, is engineered with precision. When a load is applied, the pin undergoes minute deformation (strain). This deformation is detected by strain gauges bonded to the pin, which change their electrical resistance proportionally to the applied force. This signal is then converted by an integrated or external transmitter into a standardized, readable output (such as mV/V, 4-20mA, or digital signals like RS485) for displays, PLCs, or data acquisition systems.
The working principle is based on strain gauge technology. The load cell body, which is the shackle pin itself, is engineered with precision. When a load is applied, the pin undergoes minute deformation (strain). This deformation is detected by strain gauges bonded to the pin, which change their electrical resistance proportionally to the applied force. This signal is then converted by an integrated or external transmitter into a standardized, readable output (such as mV/V, 4-20mA, or digital signals like RS485) for displays, PLCs, or data acquisition systems.
LC7505 Load Shackle Typical Applications:
Shackle load cells are ubiquitous across industries that involve lifting, pulling, or tensioning:
Lifting & Hoisting: Overhead cranes, mobile cranes, winches, and hoists.
Marine & Offshore: Mooring line tension monitoring, anchor handling, and deck cranes.
Construction: Monitoring loads on lifting gear, cable tensioning in bridges and structures.
Renewable Energy: Tension monitoring in guy wires for wind turbines and communication towers.
Manufacturing & Logistics: Process weighing, force measurement in test stands, and suspended scale systems.
Agriculture: Monitoring loads on spreaders and other heavy machinery.
In summary,Ningbo Saintbond is special crane load cell manufacturers / load cell companies the Load Shackle is an essential tool for modern industry, merging the simple utility of a shackle with the sophisticated capability of a precision sensor to create a safer, smarter, and more efficient lifting environment.

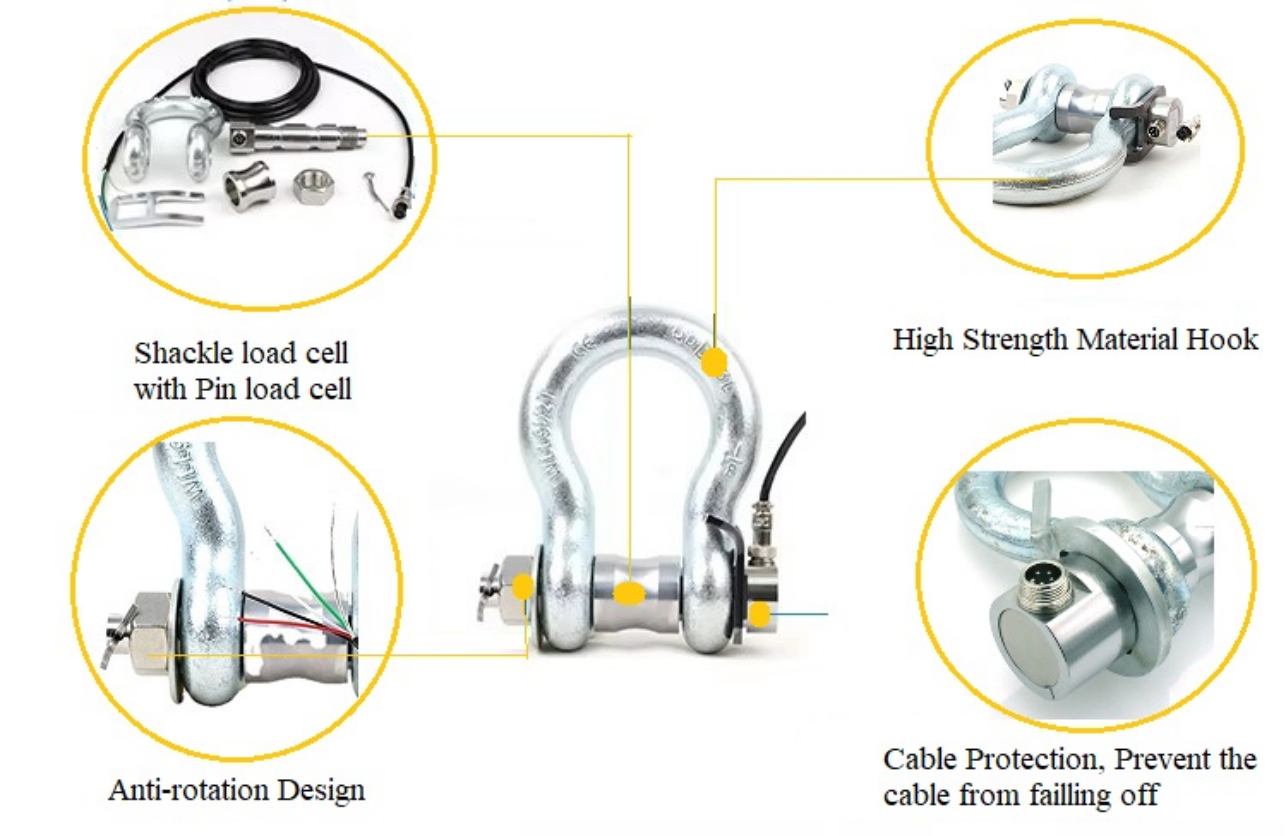

LC7505 Load Shackle Product Detailed Illustrated Description:
