Vehicle Weighing Pads
WS1101-W
Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Quantity:
Weigh pads for trucks Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Weigh pads for trucks can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected

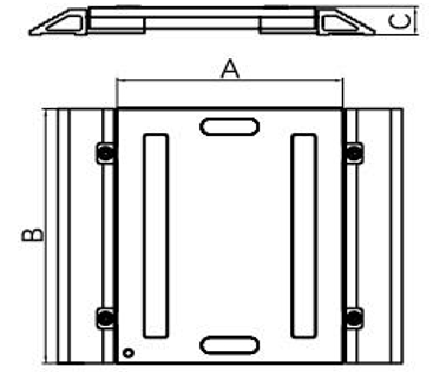

WS1101-W Axle Weigh Pad Dimension (mm):
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Pad) | (Each Pad) | |
| WS1101 | 300×400×56.5 | 500~8000Kg | 4pcs LC348 LoadCell,10m CableCapacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348 LoadCell,10m CableCapacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348 LoadCell,10m CableCapacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348 LoadCell,10m CableCapacity:10000/15000/200000Kg |
| Product Parameters | |
| Rated load:1/2/3/5/6/10/20/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3%F.S (5~10km/h) | Static error:0.1~0.3%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatability: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/45kg |
Axle weigh pad are portable vehicle weighing scales ideal for mobile and temporary applications. Weigh pads for trucks offer an adaptable solution for vehicle weighing. With unmatched accuracy, Ningbo Saintbond vehicle weighing pads capture wheel or axle weights, either individually or in sets of up to 18 axle weigh pads.
An accurate, durable, and axle weigh pad is essential for monitoring loads, avoiding overloading, and preventing premature mechanical failure. Ningbo Saintbond manufactures a range of high-quality weigh pads for trucks weighing underground mining vehicles, underground utility vehicles and industrial truck load weighing applications.
WS1101-W Axle Weigh Pad Weighing Applications:
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
