Trailer Weighing System
WS1131-1
Ningbo SAINTBOND trailer weighing system are ideal for weighing vans or trucks and can be supplied either the touch screen or more basic unit, truck scales for sale near me are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, trailer weighing near me are used to determine the individual axle weights and total gross weight of any type of vehicle.
Delivery
FOB
minimum order
1 piece
Supply Ability
20000piece / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Ningbo Saintbond trailer scale system measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This trailer scale system is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. trailer scale system allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
Ningbo Saintbond is the world’s largest manufacturer of trailer scale system, best onboard truck scales, loader weigh system in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and portable axle weighing systems that provide essential features for multiple industries.
Ningbo Saintbond manufactures trailer scale system, best onboard truck scales, loader weigh system to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of trailer scale system, best onboard truck scales, loader weigh system helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
loader weigh system, also referred to as best onboard truck scaless or trailer scale system, measure a vehicles axle weights in order to determine a vehicle’s overall weight.

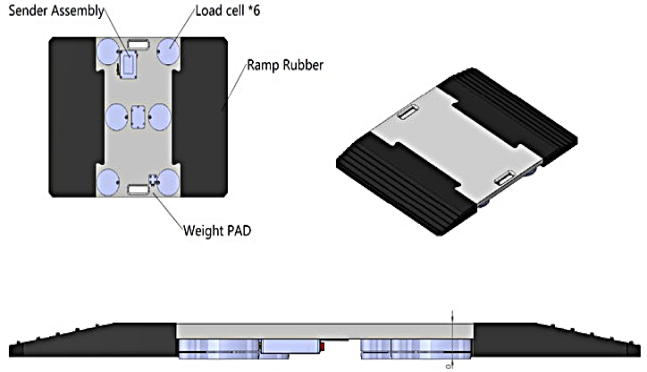

| Dimension:mm |
| Note: Both cable and spring tube are available on requests. |
| Product Detail: |
| Technical Specification: | |||
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance : | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity : | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
| Applications: | |||
| 1:Load control and weighing for the vehicles; | |||
| 2:Measuring the weight and barycenter of aeroplane; | |||
| 3:Measuring weight for special purpose; |
