Axle Pad Scales
WS1132
Semi truck scale weights cand be used with levellers for multi axle vehicles and is fitted with wheels for easy transportation, Ningbo SAINTBOND trailer load scale are ideal for weighing vans or trucks and can be supplied either the touch screen or more basic unit, axle pad scales are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 piece
Supply Ability
20000piece / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
semi truck scale weights, trailer load scale, axle pad scales semi truck scale weights, trailer load scale, axle pad scales semi truck scale weights, trailer load scale, axle pad scales semi truck scale weights, trailer load scale, axle pad scales
Ningbo Saintbond axle pad scales measures the individual weight of a vehicle's axles and can provide the total weight of a vehicle. This axle pad scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. axle pad scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
Axle pad scales for sale are state-of-the-art, portable van weighing scaleaxle pad scales systems designed to provide fast, accurate, and reliable measurement of axle loads, gross vehicle weights (GVW), and trailer load scale, trailers, and other commercial vehicles. Unlike traditional, fixed weighbridges, these innovative pads offer unparalleled flexibility, allowing for on-site weighing anywhere, anytime.
Axle semi truck scale weights is ideal for law enforcement, logistics companies, waste management, construction sites, and agricultural operations, our semi truck scale weights are the ultimate tool for ensuring compliance with road safety regulations, optimizing load distribution, and preventing costly overweight fines and vehicle damage.
Axle pad scales, also referred to as trailer load scale or semi truck scale weights, measure a vehicles axle weights in order to determine a vehicle's overall weight.

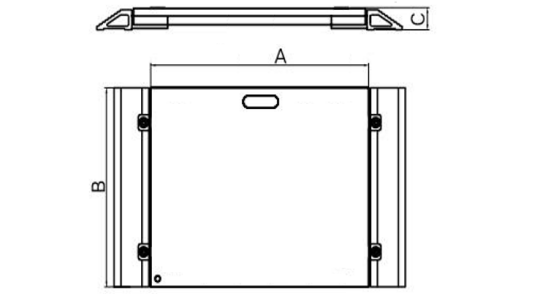

| WS1132 Axle Pad Scales Dimension:mm |
1: A×B×C:1000×800×58mm, the ramp size:800×800mm;
2: Weight: About 60kg;
3: The weigh pad material:Aviation aluminum, The ramp: rubber;
2: Weight: About 60kg;
3: The weigh pad material:Aviation aluminum, The ramp: rubber;
| WS1132 Axle Pad Scales Technical Parameters: | |
| Rated load:1/2/3/5/6/10t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3%F.S (5~10km/h) | Static error:0.1~0.3%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatability: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:58kg |
Why Choose Our Axle Weigh Pads?
Our Axle Weigh Pads represent the perfect synergy of portability, precision, and power. We are committed to providing our clients with solutions that are not just tools, but strategic assets for improving safety, efficiency, and profitability. Ditch the fixed costs and limitations of a traditional weighbridge and step into the future of vehicle weighing.
Our Axle Weigh Pads represent the perfect synergy of portability, precision, and power. We are committed to providing our clients with solutions that are not just tools, but strategic assets for improving safety, efficiency, and profitability. Ditch the fixed costs and limitations of a traditional weighbridge and step into the future of vehicle weighing.
