Axle Pad Scale
WS1150
Ningbo SAINTBOND axle pad scale are ideal for weighing vans or trucks and can be supplied either the touch screen or more basic unit, lorry weighing machine near me cand be used with levellers for multi axle vehicles and is fitted with wheels for easy transportation, vehicle scale system are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
出厂
minimum order
1
Supply Ability
20000 /
Stock Time
5~30Day
Quantity:
( lorry weighing machine near me,axle pad scale , vehicle scale system lorry weighing machine near me,axle pad scale , vehicle scale system lorry weighing machine near me,axle pad scale , vehicle scale system lorry weighing machine near me,axle pad scale , vehicle scale system lorry weighing machine near me,axle pad scale , vehicle scale system)
axle pad scales are highly specialized, compact scales designed to measure the load exerted by individual wheels or axles. As a critical subset of semi truck scale weights, they provide the granular data necessary to ensure perfect load distribution, prevent axle overloading, and guarantee vehicle safety and compliance. Their ultra-portable design allows for instant deployment in the most confined spaces, from logistics yards to roadside checkpoints.
Ningbo Saintbond manufactures lorry weighing machine near me,axle pad scale , vehicle scale system to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of lorry weighing machine near me,axle pad scale , vehicle scale system helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.

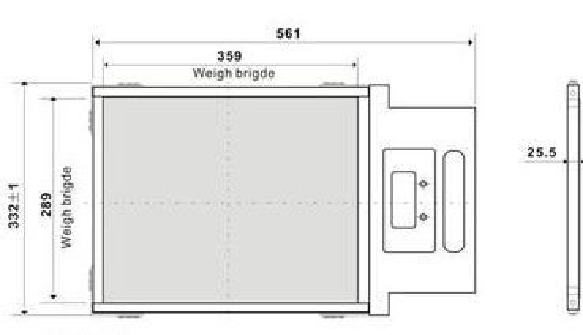

| WS1150 Axle Pad Scales Dimension:mm |
| WS1150 Axle Pad Scales Product Details: |
| Aluminum-alloy; Ultra thin weigh pad design; Light-weighted, portable; Slope can be mounted or unmounted; 5 digits LED display; Larger weigh-pad size to suit different vehicles; This product is mainly used to measure the weight of wheel & axle (when two weigh-pads are used) of vehicles statically to help adjust the wheel & axle accurately. One AS1150 can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. AS1150 is widely used in measuring the weight of motorcar, auto car and little electrical bicycle. |
| WS1150 Axle Pad Scales Technical Parameter: | |
| Rated load: 1/2/3t | Static error:0.2%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Indicator use temp. range: 0~+50℃ | Compensated temp.range: 0~+50℃ |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effecton zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| repeatability: 0.05%F.S | Safe overload: 120% |
| Zerobalance: ±1%F.S | Ultimate overload: 150% |
| Excitation voltage: 9~15 VDC | Netweight: 10 kg |
| Recommended voltage(V): 10 | Defend grade: IP66 |
WS1150 Axle Pad Scales Applications:
Mobile Law Enforcement & Overload Control: Perfect for setting up temporary checkpoints on highways and roads to efficiently identify and penalize overloaded trucks, enhancing road safety.
✅ Logistics & Freight Management: Enable shipping companies and warehouses to perform quick load checks, optimize cargo distribution, and ensure compliance with weight regulations.
✅ Industrial & Construction Sites: Ideal for weighing inbound and outbound trucks at quarries, mines, and construction sites for rapid inventory management and billing.
✅ Agriculture & Harvesting: Used for weighing harvests like grains and cotton directly in the field or at purchase points.
✅ Emergency & Military Use: Critical for assessing the load capacity of bridges and infrastructure in emergency response or military logistics.
Mobile Law Enforcement & Overload Control: Perfect for setting up temporary checkpoints on highways and roads to efficiently identify and penalize overloaded trucks, enhancing road safety.
✅ Logistics & Freight Management: Enable shipping companies and warehouses to perform quick load checks, optimize cargo distribution, and ensure compliance with weight regulations.
✅ Industrial & Construction Sites: Ideal for weighing inbound and outbound trucks at quarries, mines, and construction sites for rapid inventory management and billing.
✅ Agriculture & Harvesting: Used for weighing harvests like grains and cotton directly in the field or at purchase points.
✅ Emergency & Military Use: Critical for assessing the load capacity of bridges and infrastructure in emergency response or military logistics.
Why Choose Our Axle Pad Scales?
Our Axle Pad Scales are engineered for those who cannot be tied down. They transform any location into an instant weighing station, providing the data you need with the precision you can trust. Whether for enforcing the law, optimizing logistics, or managing resources, our portable scales deliver a powerful, flexible, and cost-effective weighing solution.
Our Axle Pad Scales are engineered for those who cannot be tied down. They transform any location into an instant weighing station, providing the data you need with the precision you can trust. Whether for enforcing the law, optimizing logistics, or managing resources, our portable scales deliver a powerful, flexible, and cost-effective weighing solution.
In summary, Axle Pad Scales are the smart, mobile choice for modern weight control, offering a perfect blend of precision, durability, and unparalleled convenience.
