Axle Load Scale
WS1161
Ningbo SAINTBOND vehicle weighing systems are ideal for weighing vans or trucks and can be supplied either the touch screen or more basic unit, digital car scales cand be used with levellers for multi axle vehicles and is fitted with wheels for easy transportation, axle load scale are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
出厂
minimum order
1
Supply Ability
20000 /
Country of Origin
中国宁波
Stock Time
5~30Day
Quantity:
vehicle weighing systems, digital car scales, axle load scale vehicle weighing systems, digital car scales, axle load scale vehicle weighing systems, digital car scales, axle load scale vehicle weighing systems, digital car scales, axle load scale vehicle weighing systems, digital car scales, axle load scale
An Axle Load Scale / digital car scales is an essential weighing system designed to accurately measure the weight carried by each axle of a vehicle, as well as its total Gross Vehicle Weight (GVW). These robust and reliable scales are critical for ensuring compliance with road safety regulations, preventing road damage, and optimizing load distribution for safe vehicle operation.
Axle Load Scale / digital car scales is ideal for weigh stations, logistics hubs, construction sites, and law enforcement, our axle load scales provide the trusted data needed to enforce laws, prevent costly fines, and protect infrastructure.
Ningbo Saintbond manufactures vehicle weighing systems, digital car scales, axle load scale to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of vehicle weighing systems, digital car scales, axle load scale helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
digital car scales, also referred to as axle load scale or vehicle weighing systems, measure a vehicles axle weights in order to determine a vehicle’s overall weight.

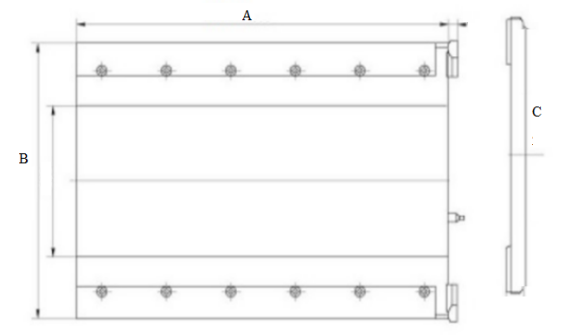

| WS1161 Axle Load Scale Dimension: mm |
| Dimension(mm) | Capacity(kg) | |
| A×B×C | 200×200×24 | 200/500/1000/1500kg |
| A×B×C | 250×250×24 | 2000/3000kg |
| A×B×C | 300×300×28 | 3000/5000kg |
| Note:Customizable size according to customer requirements | ||
| WS1161 Axle Load Scale Technical Specification: | |
| Rated load: 0.2/0.5/1/2/3/5t | Static comprehensive error: 0.1-0.3%F.S |
| Rated output: 1.0±0.1mV/V | Insulation resistance≥5000MΩ(100VDC) |
| Non-linearity:0.2%F.S | Compensated temp.range:-10~+50℃ |
| Error on corners: 0.2%F.S | Use temp.range:-30~+80℃ |
| Repeatariy:0.05%F.S | Temp.effect on zero: 0.03F.S/10℃ |
| Zero balance:±1%F.S | Temp.effect on span: 0.05F.S/10℃ |
| Excitation voltage:9~15VDC | Safe overload:120% |
| Recommended voltage:10V | Ultimate overload:150% |
| Defend Grade: IP66 | Netweight:6/8/10kg |
