Tension and Compression Load Cell
LC526-2
Ningbo Saintbond, specializes in the R&D and manufacturing of high-precision, high-reliability weighing and force measurement sensors. A core product in our portfolio is the tension and compression load cell, widely used in industrial automation, process control, safety monitoring, and testing systems, providing customers with precise force measurement solutions.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC526
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:200~500000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC526
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:200~500000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
35Day
Quantity:
tension and compression load cell, load cell strain gauge, 5 ton load cell tension and compression load cell, load cell strain gauge, 5 ton load cell tension and compression load cell, load cell strain gauge, 5 ton load cell
Ningbo Saintbond, specializes in the R&D and manufacturing of high-precision, high-reliability weighing and force measurement sensors. A core product in our portfolio is the tension and compression load cell, widely used in industrial automation, process control, safety monitoring, and testing systems, providing customers with precise force measurement solutions.

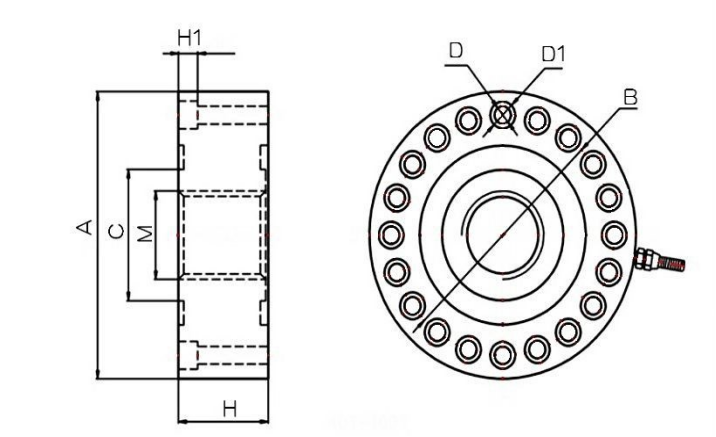

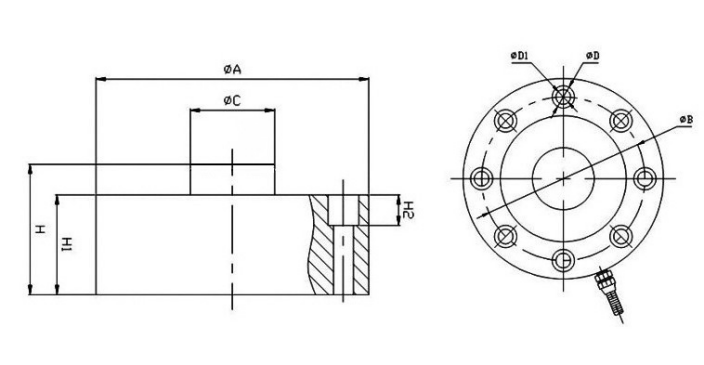

LC526 Tension and Compression Load Cell Dimension:mm
| Cap. | A | B | C | D | D1 | H | H1 | H2 | M |
| ( t ) | ( mm ) | ||||||||
| 0.2~0.7t | 74 | 63 | 24 | 9 | 6 | 34 | 30 | 7.2 | M16×1.5 |
| 1~5t | 105 | 89 | 32 | 11 | 7 | 37 | 34 | 7.2 | M16×1.5 |
| 10~20t | 120.6 | 101.8 | 39 | 14 | 9 | 53.5 | 41 | 10.5 | M32×1.5 |
| 30t | 141 | 116.8 | 50.4 | 18 | 11 | 57.2 | 50.8 | 11 | M40×1.5 |
| Cap. | A | B | C | D | D1 | H | H1 | M |
| ( t ) | ( mm ) | |||||||
| 40~80t | 208 | 174 | 95 | 20 | 13 | 70 | 15 | M40×1.5 |
| 100~250t | 280 | 230 | 120 | 30 | 17 | 57.2 | 50.8 | M64×3 |
| 300~450t | 360 | 300 | 190 | 40 | 25 | 110 | 20 | M100×3 |
LC526 Tension and Compression Load Cell Technical Parameter:
| Rated Load: | 0.2/0.7/1/3/5/10/20/30//40/50/80/100/250/300/450t | ||
| Sensitivity: | (2.0±0.1%)) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03%F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy/Stainless Steel |
| Output Resistance: | 701±2Ω | Cable: | 13m(0.2~30t),16m(40~450t) |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
The Saintbond tension and compression load cell is a versatile sensor designed for accurate measurement of both tensile (pulling) and compressive (pushing) forces. It features an optimized elastomer structure, combined with high-performance load cell strain gauge technology and meticulous compensation processes. This ensures stable and reliable signal output even in complex working conditions. The 5 ton load cell is a classic mid-range model within our series, perfectly balancing high load capacity with high-precision requirements.
LC526 Tension and Compression Load Cell Applications:
Industrial Weighing: Hopper scales, reactor weighing, track scales, crane scales (using 5-ton load cells, etc.).
Process & Force Control: Cable tension monitoring, rolling mill force measurement, injection molding machine clamping force control, bolt tightening force testing.
Safety Monitoring: Overload protection systems, structural health monitoring (e.g., bridges, rigging), safe lifting equipment.
Testing & Laboratory: Material testing machines, fatigue test benches, automotive component testing.
Industrial Weighing: Hopper scales, reactor weighing, track scales, crane scales (using 5-ton load cells, etc.).
Process & Force Control: Cable tension monitoring, rolling mill force measurement, injection molding machine clamping force control, bolt tightening force testing.
Safety Monitoring: Overload protection systems, structural health monitoring (e.g., bridges, rigging), safe lifting equipment.
Testing & Laboratory: Material testing machines, fatigue test benches, automotive component testing.
Choosing Ningbo Saintbond means choosing reliability and precision. We are committed to providing comprehensive solutions—from standard 5 ton load cell to customized tension and compression load cells—through advanced strain gauge technology and stringent quality control. We empower your equipment and systems to achieve superior performance and dependability.
For detailed specifications or custom engineering consultation, please feel free to contact us.
