single Point Load Cell
LC3543
Ningbo Saintbond specializes in the design and manufacture of high-precision single point load cells (also commonly referred to as single-point load cells or single point cells). These sensors are engineered to provide accurate and reliable weighing in applications where the load is applied to a single platform or point.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3543
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10/20/40/80kg
Material: Aluminium
Protection Class: IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC3543
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10/20/40/80kg
Material: Aluminium
Protection Class: IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
10 pieces
Supply Ability
50000pieces / Month
Country of Origin
Ningbo, China
Stock Time
5~35Day
Quantity:
single point load cell, Single-point load cells, single point cells single point load cell, Single-point load cells, single point cells single point load cell, Single-point load cells, single point cells single point load cell, Single-point load cells, single point cells
Ningbo Saintbond specializes in the design and manufacture of high-precision single point load cells (also commonly referred to as single-point load cells or single point cells). These sensors are engineered to provide accurate and reliable weighing in applications where the load is applied to a single platform or point.
Our Single-point load cells /single point cells are the ideal solution for platform scales, bench scales, checkweighers, and various industrial and commercial weighing systems. Their unique design allows for easy installation and robust performance even under off-center loading conditions.

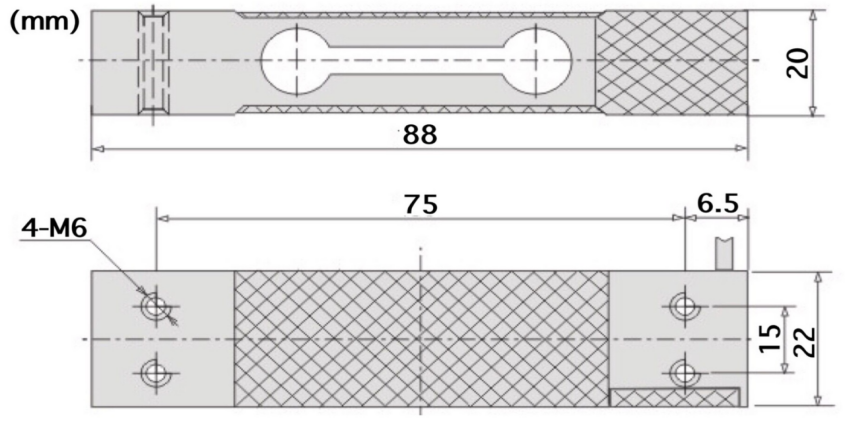

LC3543 Single Point Load Cell Dimension: mm
LC3543 Single Point Load Cell Technical Parameter:
| Capacity | 10/20/40/80kg | ||
| Rated output | 2.0±0.1 | Insulation resistance | 5000MΩ |
| Accuracy class | C3 | Recommended excitation vol. | 10-15V |
| Combined erro | ≤±0.020%RO | Compensated temp.range | -10~+40℃ |
| Creep | 0.017%RO | Operating temp.range | 20~+70℃ |
| Temp. effect on sensitivity | 0.0017%RO/℃ | Safe overload | 150%RO |
| Temp. effect on zero | 0.002%RO/℃ | Ultimate overload | 200%RO |
| Zero balance | ±1.5%RO | load cell material | Aluminium |
| Input resistance | 401±5Ω | Maximum number of verification intervals | 3000 |
| Output resistance | 350±3Ω | Minimum load cell verification intervals | Emax/7500 |
LC3543 Single Point Load Cell Features & Advantages:
High Accuracy & Stability: Delivers consistent and precise measurement results.
Excellent Off-Center Load Compensation: True to the nature of advanced single point cells, they maintain accuracy even when the load is not perfectly centered.
Robust Construction: Typically made from alluminum with hermetic sealing (e.g., IP66/IP67), ensuring durability in harsh environments.
Easy Installation: Simplified mounting requires only a few fasteners, reducing assembly time and cost.
Versatile Capacity Range: Available in various capacities (e.g., from 10kg to 80kg or more) to suit diverse applications.
Standardized Output: Compatible with most standard weight indicators and instrumentation.
High Accuracy & Stability: Delivers consistent and precise measurement results.
Excellent Off-Center Load Compensation: True to the nature of advanced single point cells, they maintain accuracy even when the load is not perfectly centered.
Robust Construction: Typically made from alluminum with hermetic sealing (e.g., IP66/IP67), ensuring durability in harsh environments.
Easy Installation: Simplified mounting requires only a few fasteners, reducing assembly time and cost.
Versatile Capacity Range: Available in various capacities (e.g., from 10kg to 80kg or more) to suit diverse applications.
Standardized Output: Compatible with most standard weight indicators and instrumentation.
LC3543 Single Point Load Cell Typical Applications:
þ Platform Scales
þ Bench Scales
þ Bagging Scales
þ Checkweighing Systems
þ Industrial Process Control
þ Medical Equipment
þ Retail Weighing Systems
þ Platform Scales
þ Bench Scales
þ Bagging Scales
þ Checkweighing Systems
þ Industrial Process Control
þ Medical Equipment
þ Retail Weighing Systems
Why Choose Ningbo Saintbond Single-Point Load Cells?
We combine rigorous quality control, advanced manufacturing technology, and extensive industry expertise to produce single point load cells / single point cells that offer outstanding value, reliability, and performance. Our products are designed to meet international standards and cater to the specific needs of our global clientele.
We combine rigorous quality control, advanced manufacturing technology, and extensive industry expertise to produce single point load cells / single point cells that offer outstanding value, reliability, and performance. Our products are designed to meet international standards and cater to the specific needs of our global clientele.
For detailed specifications, technical drawings, and customization options, please contact our sales engineering team. Ningbo Saintbond is your trusted partner for precise weighing solutions.
