High Precision Weight Sensor
LC3990
Aluminum low weight load cell /plc weight sensor excellent for weighing and harsh industrial environments due to their robust construction and resistance to corrosion. Ideal for platform scales and force measurement.
Quantity:
Our aluminum low weight load cell /plc weight sensor offer high precision and stability in a compact, lightweight design. Aluminum low weight load cell /plc weight sensor excellent for weighing and harsh industrial environments due to their robust construction and resistance to corrosion. Ideal for platform scales and force measurement. ( high precision weight sensor, plc weight sensor, low weight load cell)

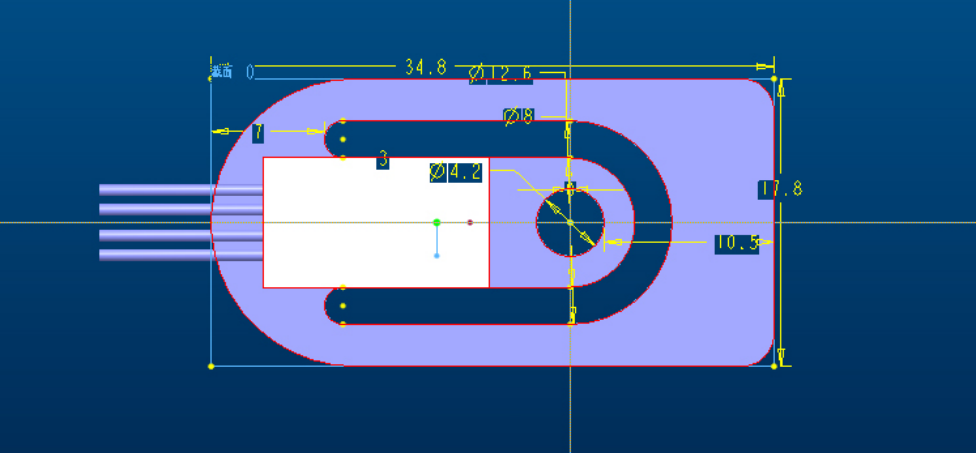

LC3990 High Precision Weight Sensor Dimension:
LC3990 High Precision Weight Sensor Technical Parameter:
| Rated Capacity: | 50kg | Zero balance: | ±0.3%F.S |
| Full Scale Output: | 1.0 ± 0.2mV/V | Insulation resistance: | ≥2000MΩ |
| Zero output: | ± 1.0mV/V | Temp. effect on span: | ±0.3%F.S/10℃ |
| Linearity: | 0.1%FS | Temp. effect on zero: | ±0.1%F.S/10℃ |
| Hysteresis: | ±0.1%F.S | Compensated temp. range: | -10～+40℃ |
| Creep: | ±0.05%F.S/3min | Use temp. range: | -10～+40℃ |
| Repeatability | ±0.05%F.S | Excitation voltage: | 5～10V(DC) |
| Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
| Output resistance: | 1000±10Ω | Comprehensive accuracy: | 0.3%F.S |
