Body Scale Load Cell
LC3991
This high-precision body load cell accurately measures tensile and compressive forces. Designed for durability in demanding environments, The body load 10kg cell 1kg load cell arduino ensures reliable performance for industrial weighing, material testing, and process control applications. Its robust construction guarantees long-term stability.
Quantity:
LC3991 Body Load Cell Product Description:
This high-precision body load cell accurately measures tensile and compressive forces. Designed for durability in demanding environments, The body load 10kg cell 1kg load cell arduino ensures reliable performance for industrial weighing, material testing, and process control applications. Its robust construction guarantees long-term stability. ( body load cell, 10kg cell, 1kg load cell arduino )
This high-precision body load cell accurately measures tensile and compressive forces. Designed for durability in demanding environments, The body load 10kg cell 1kg load cell arduino ensures reliable performance for industrial weighing, material testing, and process control applications. Its robust construction guarantees long-term stability. ( body load cell, 10kg cell, 1kg load cell arduino )
The body load 10kg cell 1kg load cell arduino planar beam load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.

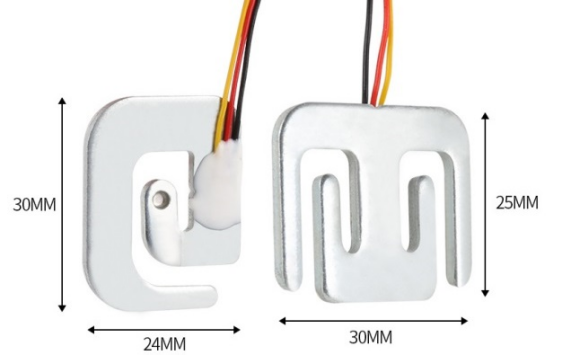

LC3991 Body Load Cell Dimension:
LC3991 Body Load Cell Technical Parameter:
| Rated Capacity: | 50Kg | Insulation resistance: | ≥2000MΩ |
| Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
| Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
| Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10～+40℃ |
| Creep: | ±0.05%F.S/3min | Use temp. range: | -10～+40℃ |
| Zero balance: | ±0.3%F.S | Excitation voltage: | 3～8V(DC) |
| Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
| Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
