Aluminum Planar Load Cell
LC3992
aluminium planar load cell, very low profile,matched output.Aluminum construction with surface anodized.Aluminium planar load cell / 20 kg load cell price mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.
Quantity:
LC3992 Aluminum Planar Load Cell Description:
aluminium planar load cell, very low profile,matched output.Aluminum construction with surface anodized.Aluminium planar load cell / 20 kg load cell price mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc. ( aluminum planar load cell, aluminium planar load cell, 20 kg load cell price )
aluminium planar load cell, very low profile,matched output.Aluminum construction with surface anodized.Aluminium planar load cell / 20 kg load cell price mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc. ( aluminum planar load cell, aluminium planar load cell, 20 kg load cell price )

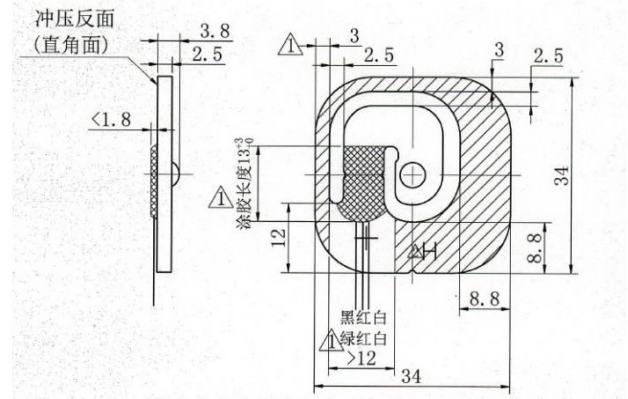

LC3992 Aluminum Planar Load Cell Dimension:
LC3992 Aluminum Planar Load Cell Technical Parameter:
| Rated Capacity: | 50Kg | Insulation resistance: | ≥2000MΩ |
| Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
| Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
| Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10～+40℃ |
| Creep: | ±0.05%F.S/3min | Use temp. range: | -10～+40℃ |
| Zero balance: | ±0.3%F.S | Excitation voltage: | 3～8V(DC) |
| Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
| Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
