Low Force Load Cell

Low Force Load Cell

LC3993
This aluminium low force load cell delivers high-precision measurement for delicate applications. Its robust yet lightweight aluminium construction ensures excellent durability and stability, making it ideal for medical devices, precision scales, and sensitive industrial testing. This aluminium low force load cell offers reliable performance in compact spaces.
Quantity:
Contact Now
add to cart
All Products
LC3993 Low Force Load Cell Description:
This aluminium low force load cell  /120 kg load cell delivers high-precision measurement for delicate applications. Its robust yet lightweight aluminium construction ensures excellent durability and stability, making it ideal for medical devices, precision scales, and sensitive industrial testing. This aluminium low force load cell  /120 kg load cell offers reliable performance in compact spaces. ( low force load cell, aluminium low force load cell, 120 kg load cell )

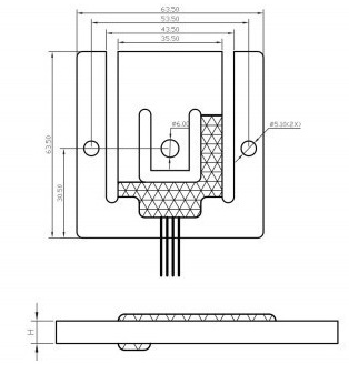

LC3993 Low Force Load Cell Dimension:


LC3993 Low Force Load Cell Technical Parameter:
ModelLC3993Temp.Effect on Output±0.05%F.S/10℃
Capacity50/75/90/150KgZero Output±0.2%F.S
Comprehensive Error0.25Input Resistance1157±10Ω
Output Sensitivity1.0±0.1mV/VOutput Resistance1000±10Ω
Non-linearity±0.05%F.SInsulation Resistance≥2000MΩ (50V)
Repeatability±0.05%F.SExcitation Voltage5~10(DC)V
Hysteresis±0.05%F.SOperation Temp.Range-10--+40℃
Creep±0.05(20min)%F.SOverload Capacity150%F.S
Temp.Effect on Zero±0.05%F.S/10℃Recommended UseOmpact Scales,Bench
and floor scales
