Heavy Vehicle Weighbridge
WS1110-1
Ningbo Saintbond trailer weight gauge is apply to weighing in the road, Ningbo Saintbond have over 20 years experience in heavy vehicle weighbridge, truck axle scales for sale offer a large weighing surface and can accommodate dual axle truck weighing and tri-axle truck trailer weighing.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 piece
Supply Ability
20000piece / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale)
Ningbo Saintbond heavy vehicle weighbridge measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This heavy vehicle weighbridge is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. heavy vehicle weighbridge allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
Ningbo Saintbond is the world’s largest manufacturer of trailer weight gauge, heavy vehicle weighbridge, truck axle scales for sale in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and portable axle weighing systems that provide essential features for multiple industries.
Heavy Vehicle Weighbridge designed specifically for the transportation and logistics industry, these robust pads allow you to check the weight of each axle and the total gross vehicle weight right at your loading bay or depot.

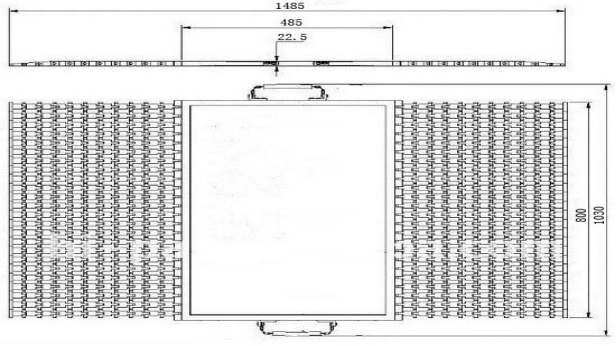

Heavy Vehicle Weighbridge Dimension:mm
Heavy Vehicle Weighbridge Technical Specification:
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.1~0.3% |
How Heavy Vehicle Weighbridge Works:
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
✅ Position: Place one pad under each wheel or set of wheels on the same axle.
✅ Connect: Link all pads wirelessly to a single, easy-to-read digital indicator.
✅ Weigh: Get simultaneous, accurate readings for each axle and the total weight in seconds.
