Car Weighbridge
WS1111
Ningbo Saintbond truck scale weight near me is apply to weighing in the road, Car weighbridge are designed for creating static wheel and axle weighing and dynamic axle weighing stations, weighing machine for lorry with Low Profile Portable Weigh pad.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 piece
Supply Ability
20000piece / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( truck scale weight near me, car weighbridge, weighing machine for lorry truck scale weight near me, car weighbridge, weighing machine for lorry truck scale weight near me, car weighbridge, weighing machine for lorry truck scale weight near me, car weighbridge, weighing machine for lorry truck scale weight near me, car weighbridge, weighing machine for lorry )
Axle car weighbridgeare highly specialized, compact scales designed to measure the load exerted by individual wheels or axles. As a critical subset of car weighbridgeare, they provide the granular data necessary to ensure perfect load distribution, prevent axle overloading, and guarantee vehicle safety and compliance. Their ultra-portable design allows for instant deployment in the most confined spaces, from logistics yards to roadside checkpoints.
Ningbo Saintbond is the world’s largest manufacturer of truck scale weight near me, car weighbridge, weighing machine for lorry in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and portable axle weighing systems that provide essential features for multiple industries.
Ningbo Saintbond manufactures truck scale weight near me, car weighbridge, weighing machine for lorry to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of truck scale weight near me, car weighbridge, weighing machine for lorry helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
car weighbridge, also referred to as truck scale weight near me or weighing machine for lorry, measure a vehicles axle weights in order to determine a vehicle's overall weight.

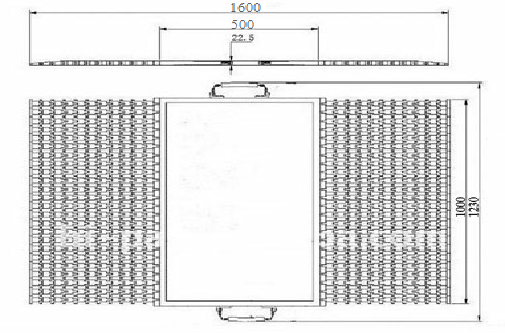

| WS1111 Car Weighbridge Dimension: mm |
| Rated Load:0~40t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.1~0.3% |
WS1150 Axle Pad Scales Applications:
Mobile Law Enforcement & Overload Control: Perfect for setting up temporary checkpoints on highways and roads to efficiently identify and penalize overloaded trucks, enhancing road safety.
✅ Logistics & Freight Management: Enable shipping companies and warehouses to perform quick load checks, optimize cargo distribution, and ensure compliance with weight regulations.
✅ Industrial & Construction Sites: Ideal for weighing inbound and outbound trucks at quarries, mines, and construction sites for rapid inventory management and billing.
✅ Agriculture & Harvesting: Used for weighing harvests like grains and cotton directly in the field or at purchase points.
✅ Emergency & Military Use: Critical for assessing the load capacity of bridges and infrastructure in emergency response or military logistics.
Mobile Law Enforcement & Overload Control: Perfect for setting up temporary checkpoints on highways and roads to efficiently identify and penalize overloaded trucks, enhancing road safety.
✅ Logistics & Freight Management: Enable shipping companies and warehouses to perform quick load checks, optimize cargo distribution, and ensure compliance with weight regulations.
✅ Industrial & Construction Sites: Ideal for weighing inbound and outbound trucks at quarries, mines, and construction sites for rapid inventory management and billing.
✅ Agriculture & Harvesting: Used for weighing harvests like grains and cotton directly in the field or at purchase points.
✅ Emergency & Military Use: Critical for assessing the load capacity of bridges and infrastructure in emergency response or military logistics.
Why Choose Our Axle Pad Scales?
Our Axle Pad Scales are engineered for those who cannot be tied down. They transform any location into an instant weighing station, providing the data you need with the precision you can trust. Whether for enforcing the law, optimizing logistics, or managing resources, our portable scales deliver a powerful, flexible, and cost-effective weighing solution.
Our Axle Pad Scales are engineered for those who cannot be tied down. They transform any location into an instant weighing station, providing the data you need with the precision you can trust. Whether for enforcing the law, optimizing logistics, or managing resources, our portable scales deliver a powerful, flexible, and cost-effective weighing solution.
In summary, Portable Car Weight Scales are the smart, mobile choice for modern weight control, offering a perfect blend of precision, durability, and unparalleled convenience.
