Zemic Load Cell H8C
H8C-M

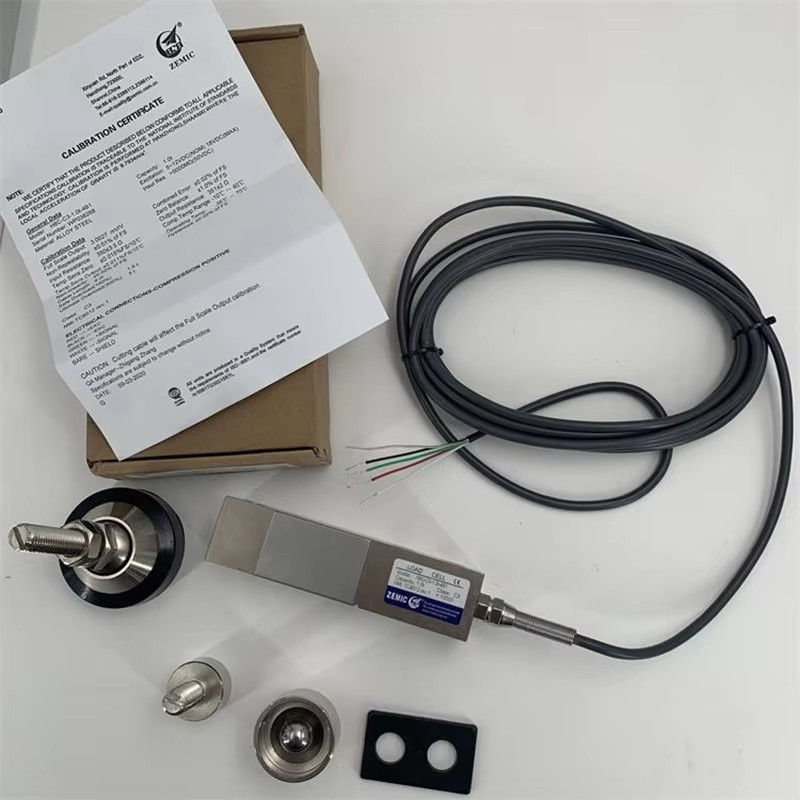

The zemic h8c load cell is a high-precision, low-profile compression load cell manufactured by ZEMIC, a globally recognized leader in weighing sensor technology.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: H8C
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~5000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: H8C
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:500~5000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
zemic load cell h8c, zemic h8c c3 2.0 t 4b, zemic h8c load cell zemic load cell h8c, zemic h8c c3 2.0 t 4b, zemic h8c load cell zemic load cell h8c, zemic h8c c3 2.0 t 4b, zemic h8c load cell zemic load cell h8c, zemic h8c c3 2.0 t 4b, zemic h8c load cell
The zemic h8c load cell is a high-precision, low-profile compression load cell manufactured by ZEMIC, a globally recognized leader in weighing sensor technology. Designed for rugged industrial environments, the load cell ZEMIC h8c load cell series offers exceptional reliability and accuracy in demanding applications such as platform scales, hopper weighing, and process control systems. A typical model, such as the zemic h8c c3 2.0 t 4b, exemplifies the series' robust construction and precise measurement capabilities.

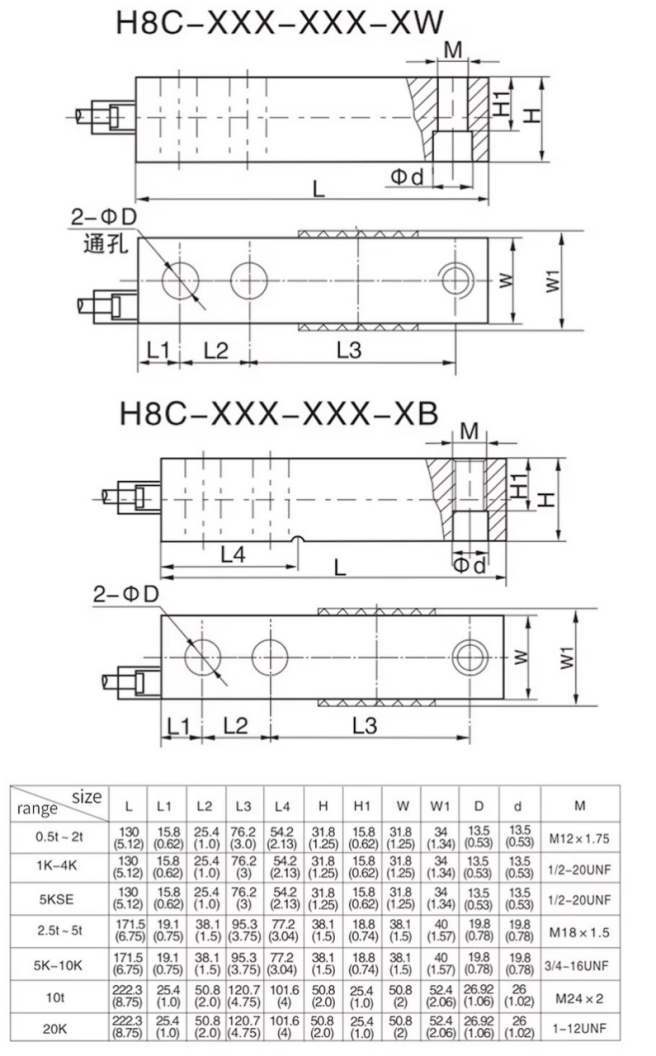

Zemic H8C Load Cell Dimension:
Zemic Load Cell H8C Technical Specifications (Typical):
Rated Output (Sensitivity): 2.0 ± 0.002 mV/V
Non-Linearity: ≤ ±0.017 % F.S. (C3 grade)
Hysteresis: ≤ ±0.017 % F.S. (C3 grade)
Creep (20 min): ≤ ±0.017 % F.S.
Temperature Effect on Zero: ≤ ±0.0029 % F.S. / 10°C
Temperature Effect on Span: ≤ ±0.0016 % F.S. / 10°C
Compensated Temperature Range: -20°C to +70°C
Input / Output Resistance: 380 ± 3.5 Ω / 350 ± 3 Ω
Recommended Excitation: 5-12 VDC (10V typical)
Safe Overload: 150% of F.S.
Ultimate Overload: 300% of F.S.
Rated Output (Sensitivity): 2.0 ± 0.002 mV/V
Non-Linearity: ≤ ±0.017 % F.S. (C3 grade)
Hysteresis: ≤ ±0.017 % F.S. (C3 grade)
Creep (20 min): ≤ ±0.017 % F.S.
Temperature Effect on Zero: ≤ ±0.0029 % F.S. / 10°C
Temperature Effect on Span: ≤ ±0.0016 % F.S. / 10°C
Compensated Temperature Range: -20°C to +70°C
Input / Output Resistance: 380 ± 3.5 Ω / 350 ± 3 Ω
Recommended Excitation: 5-12 VDC (10V typical)
Safe Overload: 150% of F.S.
Ultimate Overload: 300% of F.S.
Zemic Load Cell H8C Applications:
þ The Zemic Load Cell H8C is versatile and commonly used in:
þ Industrial Platform Scales & Floor Scales
þ Tank, Hopper, and Silo Weighing Systems
þ Belt Weighers and Conveyor Scales
þ Force Measurement in Process Control
þ Filling and Batching Systems
þ The Zemic Load Cell H8C is versatile and commonly used in:
þ Industrial Platform Scales & Floor Scales
þ Tank, Hopper, and Silo Weighing Systems
þ Belt Weighers and Conveyor Scales
þ Force Measurement in Process Control
þ Filling and Batching Systems
