Load Cell Beam Type
LC340
Shear beam load cell manufacturer / load cell gauge– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.5-30t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond shear beam load cell manufacturer.
Quantity:
Shear beam load cell manufacturer / load cell gauge– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.5-30t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond shear beam load cell manufacturer. ( load cell beam type, load cell gauge, shear beam load cell manufacturer )
Features & Applications:
✅ The Load Cell Beam Type adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance;
✅ Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement;
✅ Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use;
✅ Interconnect the plates to the earthing.
✅ In case of structure with four-point support, proceed to the height adjustment, if one-point does not in contact with the upper part of the mounting kit.

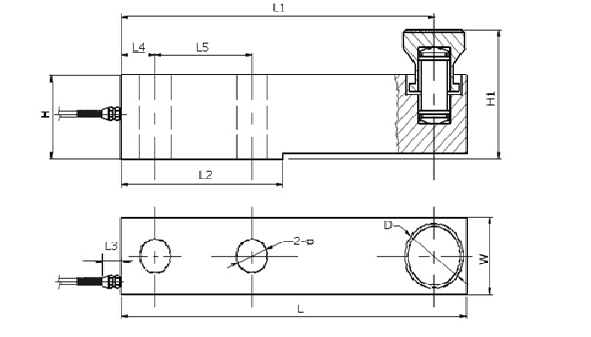

LC340 Load Cell Beam Type Dimensions Unit:mm
| Cap./Size | L | L1 | L2 | L3 | L4 | L5 | H | H1 | ø | D | W |
| (t) | ( mm ) | ||||||||||
| 0.5/1/2/3t | 203 | 181 | 95 | 24 | 19 | 64 | 43 | 57.9 | 13 | 35 | 37 |
| 5/8t | 235 | 213 | 110 | 24 | 23 | 66 | 52 | 78.9 | 21 | 42 | 48 |
| 10t | 279 | 247 | 133 | 24 | 25 | 82 | 67 | 127.7 | 28 | 57 | 60 |
| 20/25/30t | 318 | 280 | 153 | 24 | 32 | 89 | 82.5 | 143.5 | 34 | 70 | 70 |
LC340 Load Cell Beam Type Technical Parameter:
| Rated Load: | 0.5/1/2/3/5/7.5/8/10/20/25/30t | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel/ Stainless Steel |
| Output Resistance: | 351±2Ω | Cable: | Length=L:6m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
