Shear type Load Cell
LC303
Tank load cells / load cell 5000 kg– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.1-10t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond tank load cells manufacturer.
Quantity:
Tank load cells / load cell 5000 kg– Robust, high-precision sensor for industrial weighing (tanks, hoppers, conveyors). Stainless steel, IP67 rated, 0.1-10t capacity. mV/V or 4-20mA output. CE/OIML certified. Reliable in harsh conditions. Easy installation. Ningbo Saintbond tank load cells manufacturer. ( tank load cells, load cell 5000 kg, shear type load cell )
LC303 Shear type Load Cell Features & Applications:
✅ The shear type load cell adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance;
✅ Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement;
✅ Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use;
✅ Interconnect the plates to the earthing.
✅ In case of structure with four-point support, proceed to the height adjustment, if one-point does not in contact with the upper part of the mounting kit.

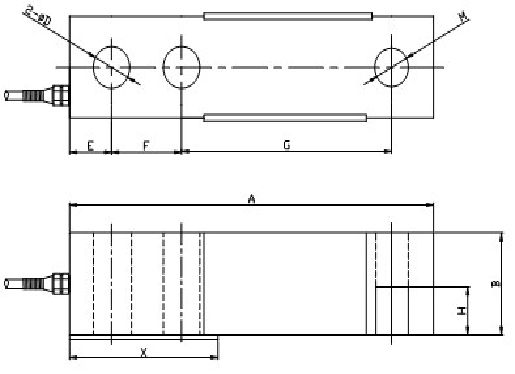

LC303 Shear type Load Cell Dimensions Unit:mm
| Cap./Size | A | B | C | D | E | F | H | G | M | X |
| ( t ) | ( mm ) | |||||||||
| 100~2500 kg | 130 | 32 | 32 | 13 | 15 | 25.4 | 15 | 75 | M12×1.25 | 55 |
| 3000~5000 kg | 172 | 38 | 38 | 21 | 19 | 38.1 | 19 | 95 | M20×1.50 | 76 |
| 7500~10000 kg | 223 | 50 | 50 | 25 | 25 | 50.8 | 25 | 120 | M24×2.00 | 100 |
LC303 Shear type Load Cell Technical Parameter:
| Rated Load: | 0.1/0.15/0.2/0.25/0.3/0.5/0.75/1.5/2.5/3/5/7.5/10t | ||
| Sensitivity: | (2.0±0.1%) m V/V, | Operating Temp. Range: | -30~+70℃ |
| (3.0±0.1%) m V/V | |||
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | A:Alloy Steel, SS:Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
