Weigh Load Pin
LC782
High-quality weigh load pins replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy.4 wire load cell testing applied weighing load cells Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. Contact us for specs!
Quantity:
Weigh Load Pin – Precision Force Measurement
High-quality weigh load pins replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy.4 wire load cell testing applied weighing load cells Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. Contact us for specs! (Weigh Load Pin, applied weighing load cells, 4 wire load cell testing )

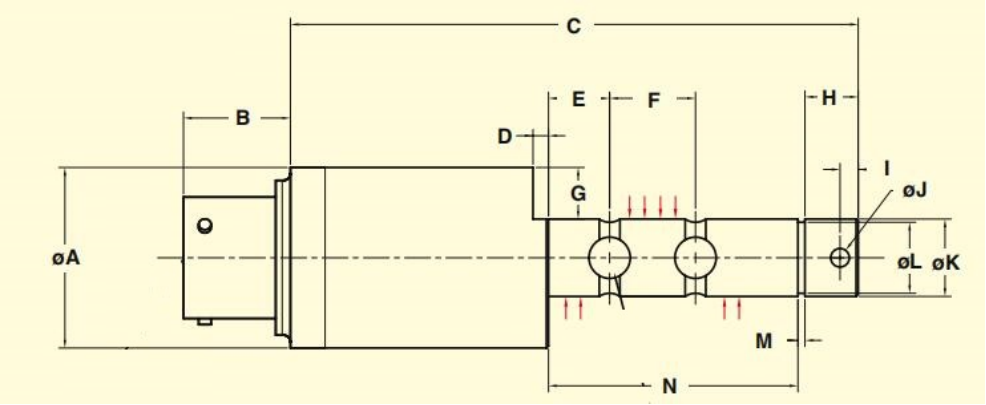

LC782 Weigh Load Pin Dimension:
| Cap. | øA | B | C | D | E | F | G | H | I | øJ | øK | øL | M | N |
| Kg(lb) | mm (inch) | |||||||||||||
| 272kg /600lb | 22.2 | 12.4 | 69.9 | 1.9 | 7.5 | 10.6 | 6.4 | 6.6 | 2.3 | 2.3 | 9.47(0.373) | 8.7 | 0.9 | 30.7 |
| -0.88 | -0.49 | -2.75 | -0.08 | -0.3 | -0.42 | -0.25 | -0.26 | -0.09 | -0.09 | 9.53(0.375) | -0.34 | -0.03 | -1.21 | |
| 340kg/750lb | 22.2 | 12.4 | 69.9 | 1.9 | 7.5 | 10.6 | 6.4 | 6.6 | 2.3 | 2.3 | 9.47(0.373) | 8.7 | 0.9 | 30.7 |
| -0.88 | -0.49 | -2.75 | -0.08 | -0.3 | -0.42 | -0.25 | -0.26 | -0.09 | -0.09 | 9.53(0.375) | -0.34 | -0.03 | -1.21 | |
| 680kg/1500lb | 22.2 | 12.4 | 69.9 | 1.9 | 7.5 | 10.6 | 6.4 | 6.6 | 2.3 | 2.3 | 9.47(0.373) | 8.7 | 0.9 | 30.7 |
| -0.88 | -0.49 | -2.75 | -0.08 | -0.3 | -0.42 | -0.25 | -0.26 | -0.09 | -0.09 | 9.53(0.375) | -0.34 | -0.03 | -1.21 | |
| 907kg/2000lb | 38.1 | 12.4 | 88.9 | 5.1 | 12.7 | 19.1 | 6.4 | 6.6 | 2.3 | 2.3 | 12.6(0.498) | 11.7 | 1 | 44.5 |
| -1.5 | -0.49 | -3.5 | -0.2 | -0.5 | -0.75 | -0.25 | -0.26 | -0.09 | -0.09 | 12.7(0.500) | -0.46 | -0.04 | -1.75 | |
| 1360kg /3000lb | 38.1 | 12.4 | 88.9 | 5.1 | 12.7 | 19.1 | 6.4 | 6.6 | 2.3 | 2.3 | 12.6(0.498) | 11.7 | 1 | 44.5 |
| -1.5 | -0.49 | -3.5 | -0.2 | -0.5 | -0.75 | -0.25 | -0.26 | -0.09 | -0.09 | 12.7(0.500) | -0.46 | -0.04 | -1.75 | |

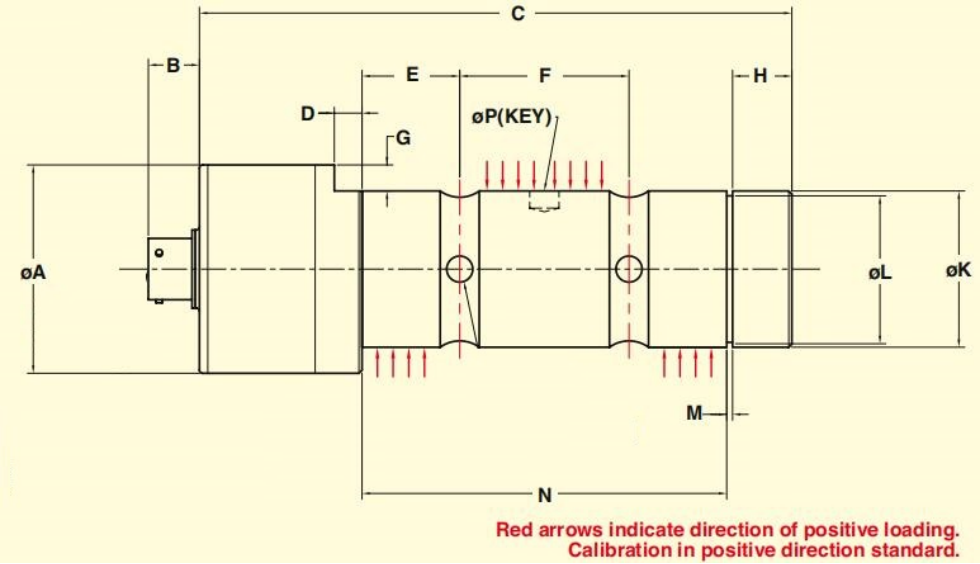

| Cap. | øA | B | C | D | E | F | G | H | øK | øL | M | N | øP |
| Kg(lb) | mm (inch) | ||||||||||||
| 2268kg/5000lb | 38.1 | 12.4 | 101.3 | 5.1 | 15 | 25.4 | 6.4 | 7.9 | 19.0(0.748) | 17.9 | 1.2 | 55.4 | 4 |
| -1.5 | -0.49 | -3.99 | -0.2 | -0.59 | -1 | -0.25 | -0.31 | 19.1(0.75) | -0.7 | -0.05 | -21.8 | -0.16 | |
| 2722kg/6000lb | 38.1 | 12.4 | 101.3 | 5.1 | 15 | 25.4 | 6.4 | 7.9 | 19.0(0.748) | 17.9 | 1.2 | 55.4 | 4 |
| -1.5 | -0.49 | -3.99 | -0.2 | -0.59 | -1 | -0.25 | -0.31 | 19.1(0.75) | -0.7 | -0.05 | -21.8 | -0.16 | |
| 4536kg/ 10000lb | 38.1 | 12.4 | 108.2 | 5.1 | 16 | 25.4 | 6.4 | 12.7 | 25.3(0.998) | 23.9 | 1.2 | 57.4 | 5.6 |
| -1.5 | -0.49 | -4.26 | -0.2 | -0.63 | -1 | -0.25 | -0.5 | 25.4(1.00) | -0.94 | -0.05 | -2.26 | -0.22 | |
| 5670kg/12500lb | 38.1 | 12.4 | 108.2 | 5.1 | 16 | 25.4 | 6.4 | 12.7 | 25.3(0.998) | 23.9 | 1.2 | 57.4 | 5.6 |
| -1.5 | -0.49 | -4.26 | -0.2 | -0.63 | -1 | -0.25 | -0.5 | 25.4(1.00) | -0.94 | -0.05 | -2.26 | -0.22 | |
| 8165kg / 18000 | 50.1 | 12.4 | 133.4 | 6.9 | 20.6 | 35.1 | 6.4 | 16 | 31.7(1.248) | 30 | 1.4 | 76.2 | 5.6 |
| -2 | -0.49 | -5.25 | -0.27 | -0.81 | -1.38 | -0.25 | -0.63 | 31.8(1.25) | -1.2 | -0.06 | -3 | -0.22 | |
| 9072kg / 20000lb | 50.1 | 12.4 | 133.4 | 6.9 | 20.6 | 35.1 | 6.4 | 16 | 31.7(1.248) | 30 | 1.4 | 76.2 | 5.6 |
| -2 | -0.49 | -5.25 | -0.27 | -0.81 | -1.38 | -0.25 | -0.63 | 31.8(1.25) | -1.2 | -0.06 | -3 | -0.22 | |
| 13608kg/ 30000lb | 50.1 | 12.4 | 157.5 | 6.9 | 23.9 | 41.1 | 6.4 | 14.5 | 38.0(1.498) | 35.7 | 1.4 | 88.9 | 7.1 |
| -2 | -0.49 | -6.2 | -0.27 | -0.94 | -1.62 | -0.25 | -0.57 | 38.1(1.50) | -1.41 | -0.06 | -3.5 | -0.28 | |
LC782 Weigh Load Pin Technical Parameter:
| Sensitivity: | 1~1.5mV/V nominal (dependent on range) | ||
| Operating Modes: | Tension/Compression / Tension & Compression | ||
| Rated Load: | 272/340/680/907/1360/2268/2722/4536/5670/8165/9072/13608kg | ||
| 600/750/1500/2000/3000/5000/6000/10,000/12,500/18,000/20,000/30,000lb | |||
| Combined Error: | ±0.02% F.S | Operating Temp. Range: | -10~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load:: | 300%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP67/68 |
| Output Resistance: | 350±5Ω | Element Material: | Alloy /Stainless Steel |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
Remarks:
1: You can choose analog signals such as 0~5V, 0~10V, 4~20mA output from the transmitter, or opt for a digital transmitter, which can be used in conjunction with RS232/RS485 and smart instruments.
2: The measuring range, size, installation location, etc. can be customized according to customer requirements;
