Van Weighing Scales
WS1131C1
Ningbo Saintbond truck scale cost is ideal for On-Board Weighing, These lorry scales are designed to help you get accurate weight readings on large vehicles, Ningbo Saintbond van weighing scales offer a large weighing surface and can accommodate dual axle truck weighing and tri-axle truck trailer weighing.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
truck scale cost, lorry scales, van weighing scales truck scale cost, lorry scales, van weighing scales truck scale cost, lorry scales, van weighing scales truck scale cost, lorry scales, van weighing scales truck scale cost, lorry scales, van weighing scales
Axle van weighing scales for sale are state-of-the-art, portable van weighing scales systems designed to provide fast, accurate, and reliable measurement of axle loads, gross vehicle weights (GVW), and individual wheel weights for trucks, trailers, and other commercial vehicles. Unlike traditional, fixed weighbridges, these innovative pads offer unparalleled flexibility, allowing for on-site weighing anywhere, anytime.
Axle van weighing scales for sale are state-of-the-art, portable van weighing scales systems designed to provide fast, accurate, and reliable measurement of axle loads, gross vehicle weights (GVW), and individual wheel weights for trucks, trailers, and other commercial vehicles. Unlike traditional, fixed weighbridges, these innovative pads offer unparalleled flexibility, allowing for on-site weighing anywhere, anytime.
Axle van weighing scales for sale is ideal for law enforcement, logistics companies, waste management, construction sites, and agricultural operations, our van weighing scales are the ultimate tool for ensuring compliance with road safety regulations, optimizing load distribution, and preventing costly overweight fines and vehicle damage.
Van weighing scales is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,lorry scales are an economical, adaptable and portable solution for vehicle and truck weighing.An van weighing scales measures the individual weight of a vehicle's axles and can provide the total weight of a vehicle. This type of lorry scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. van weighing scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

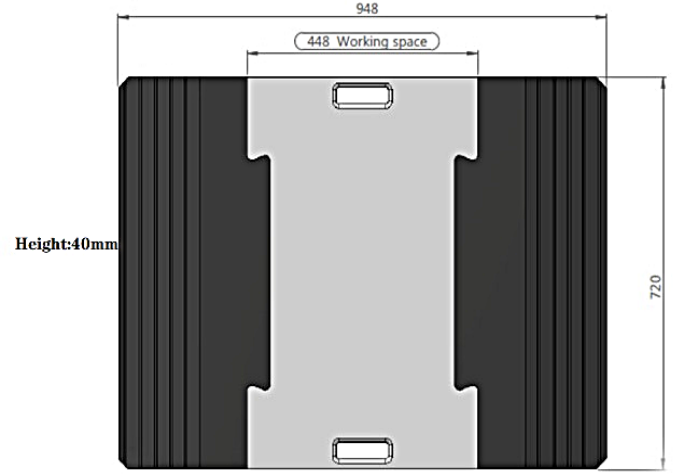

| WS1131C Van Weighing Scales Dimension:mm |
| Note: Both cable and spring tube are available on requests. |

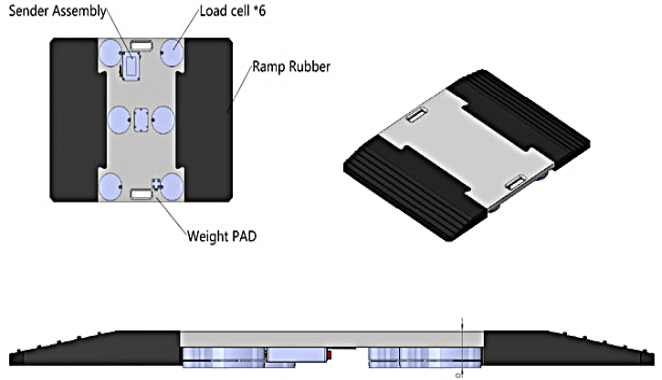

| WS1131C Van Weighing Scales Detail: |
| WS1131C Van Weighing Scales Technical Specification: | |||
| Dynamic error (%F.S): | 3~5 (5~10km/h) | Static error (%F.S): | 0.3~0.5 |
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance: | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity: | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
WS1131C Van Weighing Scales Weighing Indicator: ( Optional)
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
