Mobile Weighing
WS1140C-I
Ningbo Saintbond is mobile weighing Manufacturers and Suppliers, heavy duty portable truck scales are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, axle scales for sale are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
mobile weighing, heavy duty portable truck scales, axle scales for sale mobile weighing, heavy duty portable truck scales, axle scales for sale mobile weighing, heavy duty portable truck scales, axle scales for sale mobile weighing, heavy duty portable truck scales, axle scales for sale
A heavy duty portable truck scales is a compact, portable, and highly durable scale system designed for weighing individual axles or entire vehicles by placing pads under each wheel. Unlike fixed scales, weighing changing pads offer ultimate flexibility, allowing for on-demand weighing virtually anywhere with a firm, level surface.
A heavy duty portable truck scales is a compact, portable, and highly durable scale system designed for weighing individual axles or entire vehicles by placing pads under each wheel. Unlike fixed scales, weighing changing pads offer ultimate flexibility, allowing for on-demand weighing virtually anywhere with a firm, level surface.
Heavy duty portable truck scales /mobile weighing are the go-to solution for quick, temporary, and mobile weighing applications where permanent infrastructure is not available or practical.

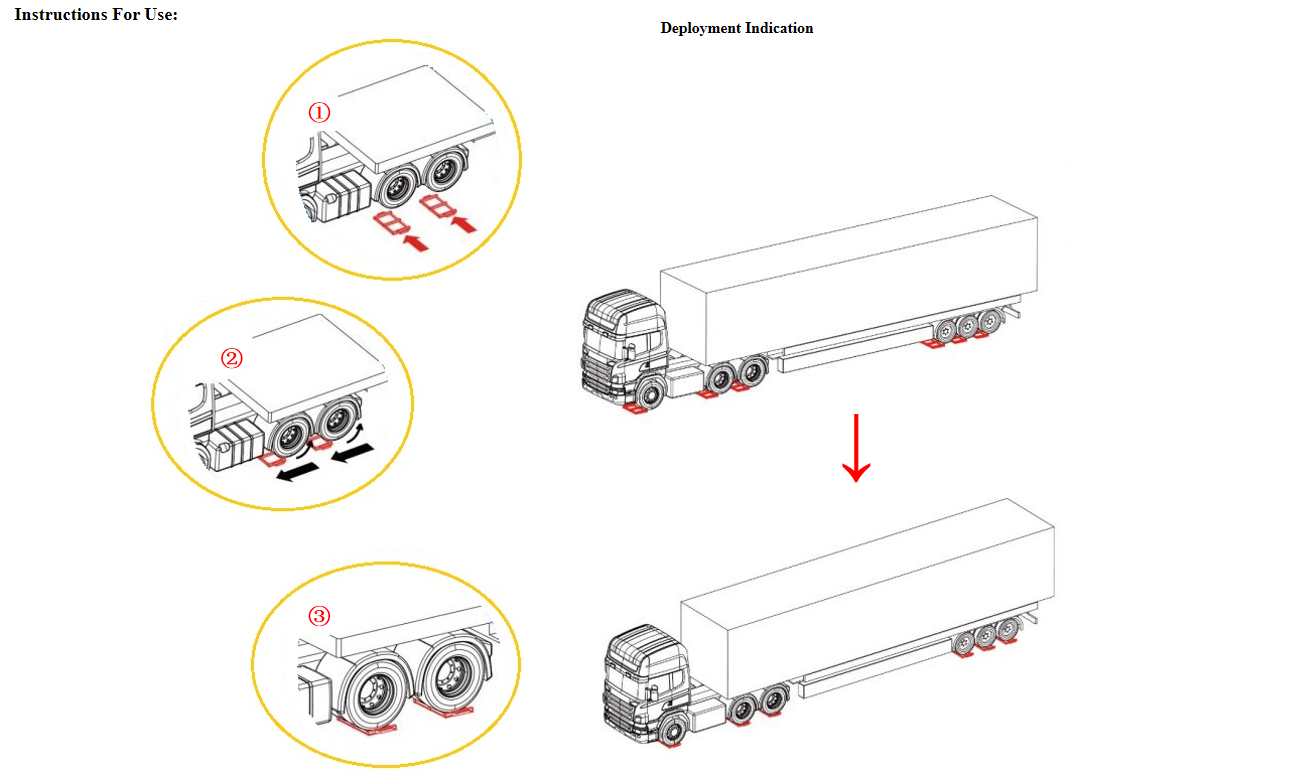

Mobile weighing is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,mobile weighing are an economical, adaptable and portable solution for vehicle and truck weighing.An heavy duty portable truck scales measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of heavy duty portable truck scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed.mobile weighing allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
| Heavy Duty Portable Truck Scales Dimension: mm |
| WS1140-II 950×480×60mm |
| Heavy Duty Portable Truck Scales Dimension:mm |
| WS1140-I 540×480×60mm |
| Heavy Duty Portable Truck Scales Technical Specification: | ||
| Model | WS1140-II | WS1140-I |
| Dimension | 95×48×6cm | 54×48×6cm |
| Weight | 22.5kg | 12.5kg |
| Material | Structural Aluminum | Structural Aluminum |
| Ground Clearance | 2cm | 2cm |
| Weighing | ||
| Capacity | 10~12000kg | 10~8000kg |
| Composite Deviation | 1‰ | 1‰ |
| Max. Working Time | About 50 Hours | About 50 Hours |
| Charging Time | About 5 Hours | About 5 Hours |
| Load Cell | ||
| Capacity (Single load cell) | 1/2/3t (Optional) | 1/2/3t (Optional) |
| Material | Alloy / Stainless steel (Optional) | Alloy / Stainless steel (Optional) |
| Quantity | 6 Pcs | 4 Pcs |
| Protection Class | IP67/68 | IP67/68 |
| Working Temperature | -20℃~60℃ | -20℃~60℃ |
| Heavy Duty Portable Truck Scales Parameter Technical: | |
| Rated load:1/2/3/5/10/12t | Compensated temp.range:-10~+50℃ |
| Static comprehensive error: 0.1%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatability: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:10kg |
Heavy Duty Portable Truck Scales Weighing Indicator: (Optional )
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
