Axle Load Scales
WS1140C-II
Ningbo SAINTBOND axle load scales for static axle weigh bridge or a dynamic low-speed in-motion weighing system, weight scale pad are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, motorsport corner weight scales are used to determine the individual axle weights and total gross weight of any type of vehicle.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( axle load scales, weight scale pad, motorsport corner weight scales axle load scales, weight scale pad, motorsport corner weight scales axle load scales, weight scale pad, motorsport corner weight scales axle load scales, weight scale pad, motorsport corner weight scales axle load scales, weight scale pad, motorsport corner weight scales axle load scales, weight scale pad, motorsport corner weight scales )
Our advanced axle load scales / weight scale pads are engineered for precision, durability, and efficiency. Whether you need a portable solution for dynamic checkpoints or a permanent installation for high-volume sites, our axle load scales/ weight scale pads provide the critical weight data you need to protect your assets, comply with regulations, and optimize your operations.
Our advanced axle load scales / weight scale pads are engineered for precision, durability, and efficiency. Whether you need a portable solution for dynamic checkpoints or a permanent installation for high-volume sites, our axle load scales/ weight scale pads provide the critical weight data you need to protect your assets, comply with regulations, and optimize your operations.
Ningbo Saintbond manufactures axle load scales, weight scale pad, motorsport corner weight scales to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of axle load scales, weight scale pad, motorsport corner weight scales helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
Axle load scales is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,axle load scales are an economical, adaptable and portable solution for vehicle and truck weighing.An axle load scales measures the individual weight of a vehicle's axles and can provide the total weight of a vehicle. This type of motorsport corner weight scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. axle load scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
| Weight Scale Pad Dimension:mm |

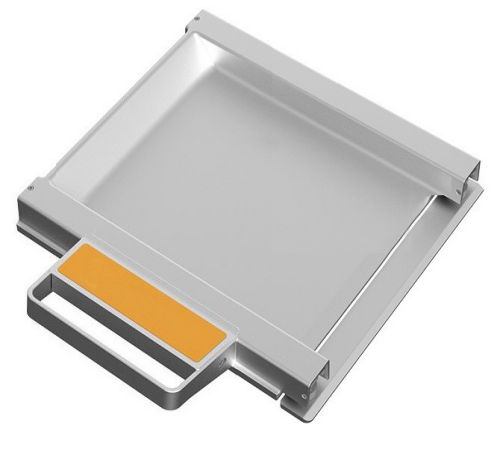

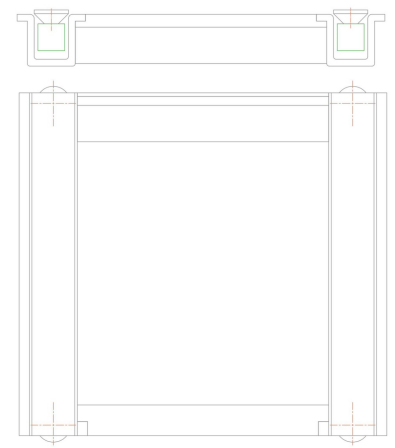

| WS1140-I 540×480×60mm |
| Weight Scale Pad Dimension:mm |

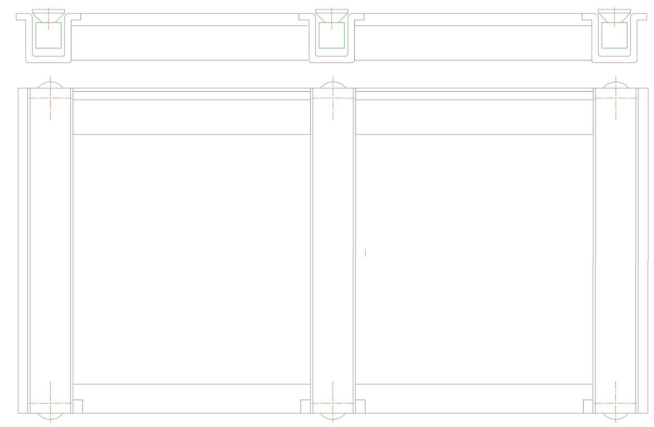

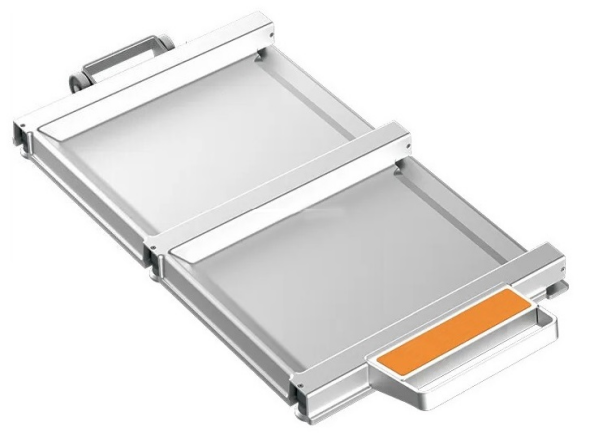

| WS1140-II 950×480×60mm |
| Weight Scale Pad Technical Specification: | ||
| Model | WS1140-II | WS1140-I |
| Dimension | 95×48×6cm | 54×48×6cm |
| Weight | 22.5kg | 12.5kg |
| Material | Structural Aluminum | Structural Aluminum |
| Ground Clearance | 2cm | 2cm |
| Weighing | ||
| Capacity | 10~12000kg | 10~8000kg |
| Composite Deviation | 1‰ | 1‰ |
| Max. Working Time | About 50 Hours | About 50 Hours |
| Charging Time | About 5 Hours | About 5 Hours |
| Load Cell | ||
| Capacity (Single load cell) | 1/2/3t (Optional) | 1/2/3t (Optional) |
| Material | Alloy / Stainless steel (Optional) | Alloy / Stainless steel (Optional) |
| Quantity | 6 Pcs | 4 Pcs |
| Protection Class | IP67/68 | IP67/68 |
| Working Temperature | -20℃~60℃ | -20℃~60℃ |
| Weight Scale Pad Parameter Technical: | |
| Rated load:1/2/3/5/10/12t | Compensated temp.range:-10~+50℃ |
| Static comprehensive error: 0.1%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatability: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:10kg |
Weight Scale Pad Weighing Indicator: ( Optional )
 |   | ||
| MWI03 Technical Parameters: ( Dynamic ) | MWI01 MWI02 Technical Parameter: ( Static ) | ||
| 1:Full range temperature coefficient 5ppm/C; | ◎Wireless Axle wheel/Container Indicator; | ||
| 2:Inner resolution 24 Bit; | ◎Dynamic and static weighing; | ||
| 3:Sampling Ratio 200 times/S; | ◎Built in thermal printer; | ||
| 4:Display refresher rate 12.5 times/s; | ◎Rechargeable battery; | ||
| 5:System nonlinear <0.01%; | ◎LCD display with backlight; | ||
| 6:Sensor excitation power supply DC 5V±2%; | ◎Up to N Platforms for Wireless and 4 for wired; | ||
| 7:Operating temperature 0C--40C; | ◎Over Load Protection and alarm; | ||
| 8:Power consumption (not including sensor): 70mA(under condition of no printing and turning off the backlight), 1000mA(when print); | ◎Portable & watertight case; | ||
| ◎Indicators for measuring axle; | |||
| 9:Power supply: with 6V/7AH lead-acid maintenance-free battery and also can be connected to. | ◎Thermal printer is built in; | ||
| 10:There are tow types single channel and dual channel, and dual channel type can detect vehicle load coefficient; | ◎Possible to use Weight-In-Motion mode and Static mode; | ||
