S Shape Load Cell
LC2011
The S-Type dyly 103 load cell tas501 is a versatile and robust force sensor designed for accurate measurement of both tensile (pulling) and compressive (pushing) forces. Its distinctive "S" shape provides an optimal balance of strength and sensitivity, making it an ideal solution for a wide array of industrial weighing and force monitoring applications. Engineered for durability and precision, this S-Type dyly 103 load cell tas501ensures reliable performance in demanding environments.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2010
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2010
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5kg ~ 5t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501 dyly, dyly 103 load cell, tas501
The S-Typedyly 103 load cell tas501 is a versatile and robust force sensor designed for accurate measurement of both tensile (pulling) and compressive (pushing) forces. Its distinctive"S"shape provides an optimal balance of strength and sensitivity, making it an ideal solution for a wide array of industrial weighing and force monitoring applications. Engineered for durability and precision, this S-Type dyly 103 load cell tas501ensures reliable performance in demanding environments.

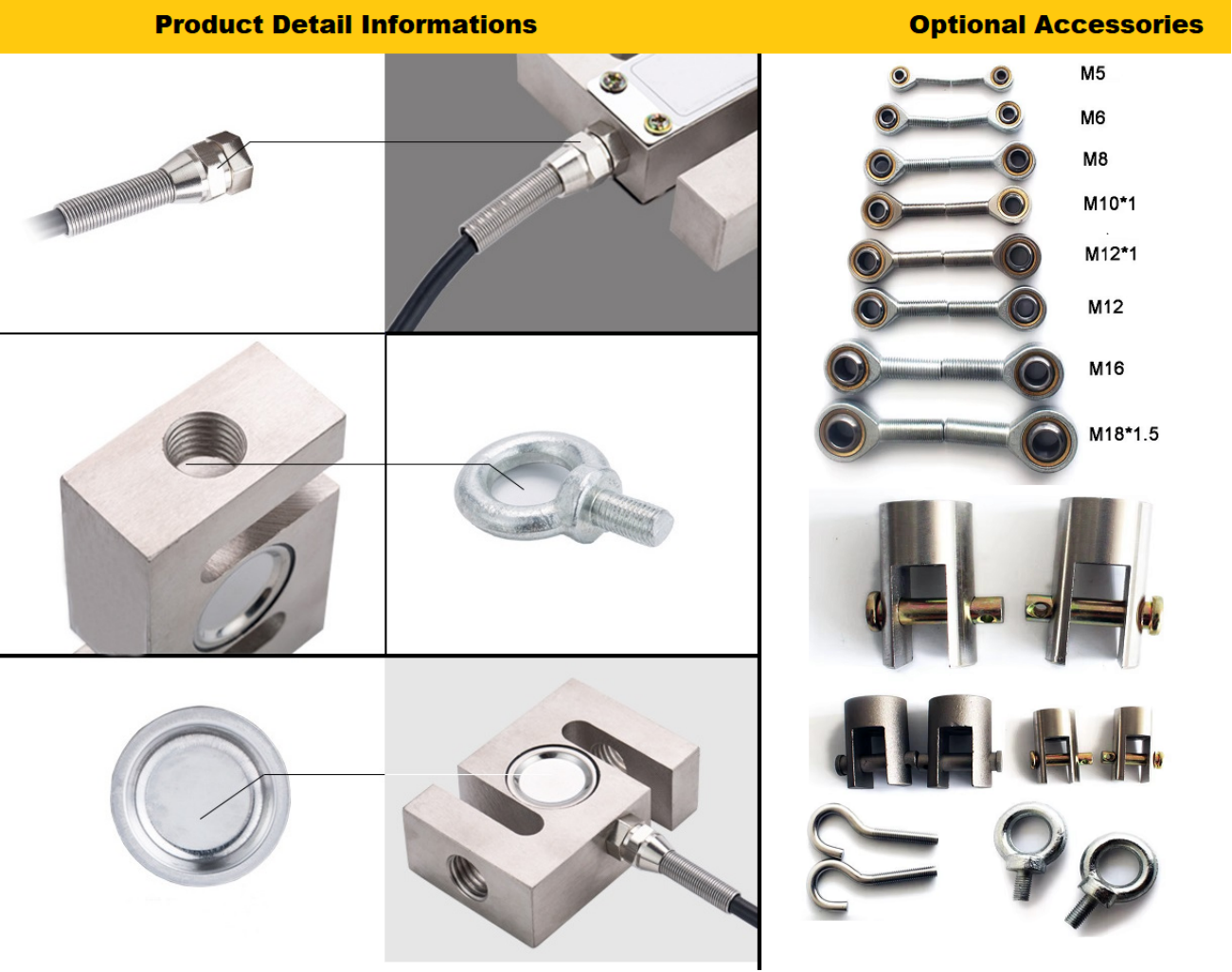

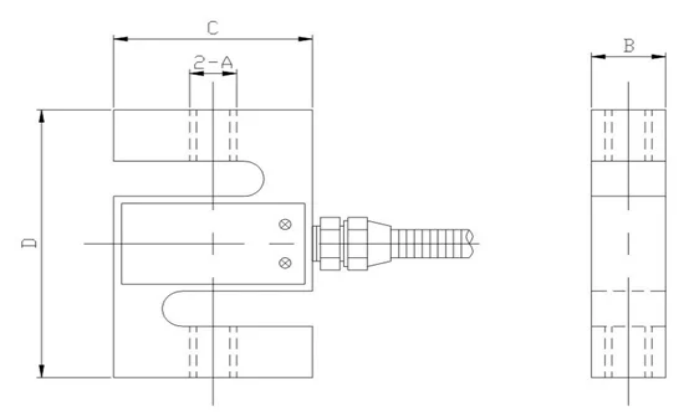

LC2011dyly 103 Load Cell Dimension:mm
| Capacity | A | B | C | D |
| (kg) | (mm) | |||
| 5-50kg | M8 X 1.25 | 12.7 | 50.8 | 63.5 |
| 100-300kg | M12 X1.75 | 19 | 50.8 | 76.2 |
| 500kg-1t | M12X1.75 | 25.4 | 50.8 | 76.2 |
| 2t-5t | M18 X1.5 | 25.4 | 76.2 | 108 |
LC2011dyly 103 Load Cell Technical Parameter:
| Capacity | 5kg ~ 5t | Output Impedance | 350±5Ω |
| Rated output | 2.0±10%mV/V | Input Impedance | 350±20Ω |
| Zero Output | ±1%F.S. | Insulation | >5000MΩ/10VDC |
| Non-Linear | 0.03%F.S. | Operating voltage | 5-15v |
| Hysteresis | 0.03%F.S. | Excitation max | 10V |
| Repeatability | 0.03%F.S. | Operating temperature range | -20-80℃ |
| Creep(30min) | 0.03%F.S. | Safety overload | 150% |
| Temp.effect on output | 0.03% F.S./10ºC | Ultimate overload | 200% |
| Temp.effect on zero | 0.05% F.S./10ºC | Material | Alloy /Stainless steel |
LC2011dyly 103 Load Cell Typical Applications:
Industrial Weighing: Hoppers, silos, tanks, bins, and platform scales.
Force Monitoring: Overload protection in cranes, hoists, and winches.
Process Control: Assembly fixtures, production line testing, and checkweighers.
Test & Measurement: Material testing machines, spring testers, and structural monitoring.
Logistics & Automation: Weighing systems in conveyor belts and lifting equipment.
Industrial Weighing: Hoppers, silos, tanks, bins, and platform scales.
Force Monitoring: Overload protection in cranes, hoists, and winches.
Process Control: Assembly fixtures, production line testing, and checkweighers.
Test & Measurement: Material testing machines, spring testers, and structural monitoring.
Logistics & Automation: Weighing systems in conveyor belts and lifting equipment.
LC2011dyly 103 Load Cell Operation Principle:
The S-Type dyly 103 load cell tas501 operates on the strain gauge principle. When force is applied, the sensing element deforms elastically. Strain gauges bonded to this element change their electrical resistance in proportion to the deformation. This change is converted into a millivolt output signal through a Wheatstone bridge circuit, which is then interpreted by a connected indicator or controller to display the precise weight or force.
The S-Type dyly 103 load cell tas501 operates on the strain gauge principle. When force is applied, the sensing element deforms elastically. Strain gauges bonded to this element change their electrical resistance in proportion to the deformation. This change is converted into a millivolt output signal through a Wheatstone bridge circuit, which is then interpreted by a connected indicator or controller to display the precise weight or force.
Ordering & Customization:
We offer standard models for common applications and full customization options, including different capacity ranges, materials, cable lengths, and connectors to meet your specific requirements.
We offer standard models for common applications and full customization options, including different capacity ranges, materials, cable lengths, and connectors to meet your specific requirements.
Contact us today to discuss your application needs.
