Tension loadlink: The Essential Tool for Direct In-Line Tension Measurement
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LCSW7
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~500t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LCSW7
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~500t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
10-35Day
Quantity:
loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer loadlink, rlp6t5, load cell dynamometer
Tension loadlink: The Essential Tool for Direct In-Line Tension Measurement
A rlp6t5 LCSW7 load cell dynamometer is a robust force measurement device designed to be installed directly into a system where a tensile (pulling) force needs to be measured or monitored. It functions as both a critical mechanical link in the assembly and a precision sensor.
Think of it as a high-strength shackle or link that has been engineered with built-in sensing technology. Its primary purpose is to provide real-time, accurate data on load, weight, or tension in applications ranging from crane safety to marine mooring.
Wireless loadlinks Typical Specifications:
| Rate Load: | 1/3/5/12/25/35/50/55/85/100/150/200/250/300/500t | ||
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | System Range: | 50~100m(Open Area),800~1500m (Optional) |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 430MHz to 470MHz |

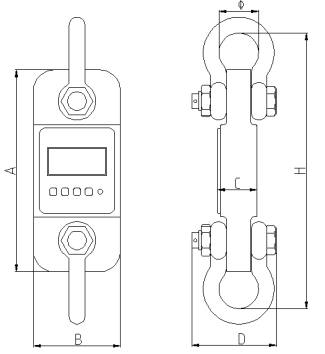

LCSW7 Loadlink Dimension:
| Model | Cap. | Div | A | B | C | D | φ | H | Material |
| ( Ton ) | (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| LCSW7-01 | 1t | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW7-02 | 2t | 1 | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW7-03 | 3t | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| LCSW7-05 | 5t | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| LCSW7-10 | 10t | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy /Stainless Steel |
| LCSW7-20 | 20t | 10 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy /Stainless Steel |
| LCSW7-30 | 30t | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy /Stainless Steel |
| LCSW7-50 | 50t | 20 | 465 | 150 | 100 | 305 | 184 | 930 | Alloy /Stainless Steel |
| LCSW7-55 | 55t | 20 | 465 | 150 | 100 | 305 | 188 | 940 | Alloy /Stainless Steel |
| LCSW7-85 | 85t | 50 | 500 | 180 | 120 | 365 | 200 | 1050 | Alloy /Stainless Steel |
| LCSW7-100 | 100t | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy /Stainless Steel |
| LCSW7-150 | 150t | 50 | 680 | 303 | 140 | 400 | 252 | 1311 | Alloy /Stainless Steel |
| LCSW7-200 | 200t | 100 | 700 | 350 | 144 | 440 | 280 | 1380 | Alloy /Stainless Steel |
| LCSW7-250 | 250t | 100 | 700 | 350 | 144 | 500 | 305 | 1880 | Alloy /Stainless Steel |
| LCSW7-300 | 300t | 200 | 806 | 426 | 150 | 500 | 305 | 1955 | Alloy /Stainless Steel |
| LCSW7-500 | 500t | 200 | 930 | 570 | 150 | 500 | 305 | 2065 | Alloy /Stainless Steel |
LCSW7 Loadlink Weight:
| Model | 1t | 2t | 3t | 5t | 10t | 20t | 30t | 50/55t |
| Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 | 39 |
| Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 | 128 |
| Model | 85t | 100t | 150t | 200t | 250t | 300t | 500t | |
| Weight(kg) | 50 | 81 | 90 | 95 | 95 | 125 | 210 | |
| Weight with shackles(kg) | 195 | 321 | 435 | 585 | 822 | 865 | 1600 |
LCSW7 Loadlink Typical Applications:
Tension load cell dynamometers are indispensable in any industry requiring direct force monitoring in a tensile configuration:
Lifting & Crane Safety: Monitoring load weight on cranes, hoists, and winches to prevent dangerous overload situations.
Marine & Offshore: Measuring tension in mooring lines, anchor lines, and tow cables.
Construction & Geotechnical: Monitoring force in tie-back rods, cables, and structural supports.
Logging & Forestry: Measuring pull force in cable yarding systems and skidders.
Manufacturing & Testing: Used in test rigs for pull-testing materials, wires, ropes, and components.
Tension load cell dynamometers are indispensable in any industry requiring direct force monitoring in a tensile configuration:
Lifting & Crane Safety: Monitoring load weight on cranes, hoists, and winches to prevent dangerous overload situations.
Marine & Offshore: Measuring tension in mooring lines, anchor lines, and tow cables.
Construction & Geotechnical: Monitoring force in tie-back rods, cables, and structural supports.
Logging & Forestry: Measuring pull force in cable yarding systems and skidders.
Manufacturing & Testing: Used in test rigs for pull-testing materials, wires, ropes, and components.
How LCSW7 Loadlink Works?
The load cell dynamometer is machined with a sensing element at its core. When a tensile force is applied, the material of the link deforms minutely (strain). This strain is detected by precision strain gauges bonded to the link, which change their electrical resistance proportionally to the applied force. This signal is conditioned by onboard electronics and converted into a standardized output (e.g., 4-20mA) or a digital reading for display and recording.
The load cell dynamometer is machined with a sensing element at its core. When a tensile force is applied, the material of the link deforms minutely (strain). This strain is detected by precision strain gauges bonded to the link, which change their electrical resistance proportionally to the applied force. This signal is conditioned by onboard electronics and converted into a standardized output (e.g., 4-20mA) or a digital reading for display and recording.
