Load Pin
LC703
Load Pin load cell sensor – Heavy-duty force sensor for cranes and rigging. Load Pin gauge load cell alloy steel or stainless steel, IP67/68, high overload capacity (1t - 2000t). Load Pin load cell sensor measures radial/axial loads. Marine & construction use. Reliable in harsh conditions. Customizable.
Quantity:
Load Pin load cell sensor – Heavy-duty force sensor for cranes and rigging. Load Pin gauge load cell alloy steel or stainless steel, IP67/68, high overload capacity (1t - 2000t). Load Pin load cell sensor measures radial/axial loads. Marine & construction use. Reliable in harsh conditions. Customizable. ( load pin, load cell sensor, gauge load cell )

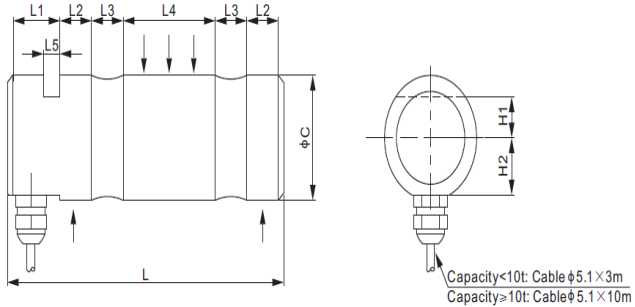

LC703 Load Pin Dimensions:Unit:mm
| Capacity | C | H1 | H2 | L | L1 | L2 | L3 | L4 | L5 |
| Ton | mm | ||||||||
| 2~5 | 35 | 11.5 | 16 | 105 | 20 | 12 | 12 | 35 | 6.3 |
| 10 | 50 | 20 | 22.5 | 152 | 30 | 18 | 18 | 48 | 10.5 |
| 20 | 65 | 22.5 | 28.5 | 190 | 32 | 20 | 25 | 65 | 10.5 |
| 40 | 85 | 22.5 | 28.5 | 256 | 36 | 35 | 28 | 89 | 12.5 |
| 70 | 100 | 34 | 35 | 328 | 40 | 50 | 32 | 120 | 15 |
| 100 | 120 | 44 | 45 | 328 | 40 | 50 | 32 | 120 | 15 |
| lb/inches (conversion of above dimensions) | |||||||||
| Capacity | C | H1 | H2 | L | L1 | L2 | L3 | L4 | L5 |
| Lb | Inches | ||||||||
| 4,409.2~11,023.1 | 1.38 | 0.45 | 0.63 | 4.13 | 0.79 | 0.47 | 0.47 | 1.38 | 0.25 |
| 22046.2 | 1.97 | 0.79 | 0.89 | 5.98 | 1.18 | 0.71 | 0.71 | 1.89 | 0.41 |
| 44092.5 | 2.56 | 0.89 | 1.12 | 7.48 | 1.26 | 0.79 | 0.98 | 2.56 | 0.41 |
| 88184.9 | 3.35 | 0.89 | 1.12 | 10.08 | 1.42 | 1.38 | 1.1 | 3.5 | 0.49 |
| 154323.6 | 3.94 | 1.34 | 1.38 | 12.91 | 1.57 | 1.97 | 1.26 | 4.72 | 0.59 |
| 220462.3 | 4.72 | 1.73 | 1.77 | 12.91 | 1.57 | 1.97 | 1.26 | 4.72 | 0.59 |
LC703 Load Pin Technical Parameter:
| Rated Load: | 2/5/10/20/40/70t | Operating Temp.Range: | -30~+70℃ |
| Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
| Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
| Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
| Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
| Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), |
| Black(Input-),White(Output-) |
Note:Load Pin load cell sensor are available with optional 0~5Vdc to 0~10Vdc or 4 mA to 20 mA output.

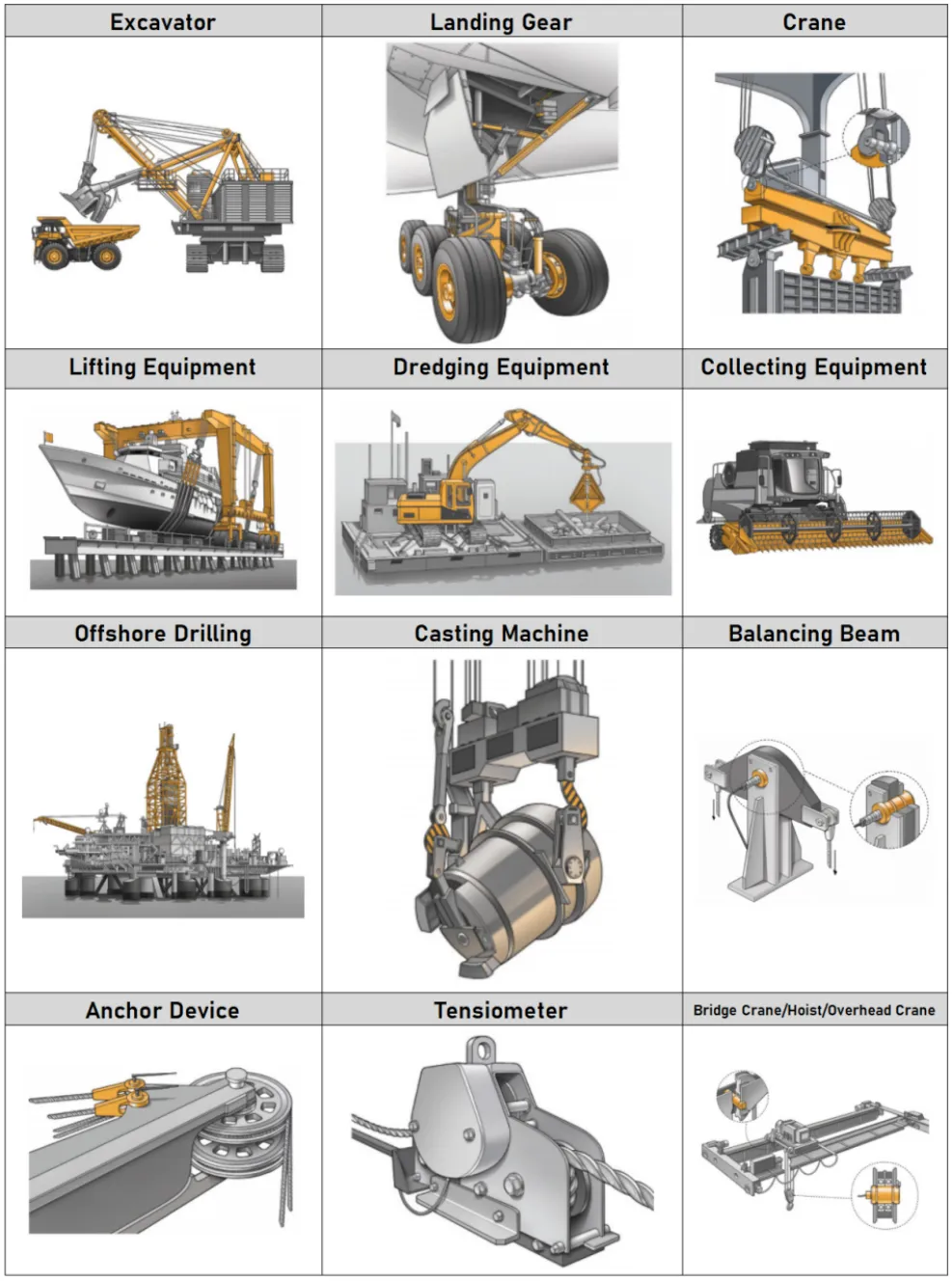

| Capacity | Shipping Weight (Approx.) | Application Examples |
| (Ton) | (Kg) |  |
| 2t | 0.8 | |
| 5t | 0.8 | |
| 10t | 2.1 | |
| 20t | 4.6 | |
| 40t | 11.2 | |
| 70t | 20 | |
| 100t | 30 |
