Load Cell Shackle

LC785

Load Cell Shackle – Precision Force Measurement

Load Cell Shackle replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy. Load Cell Shackle Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments.

Quantity:

Contact Now

add to cart

Load Cell Shackle – Precision Force Measurement

Load Cell Shackle replace standard shafts or bolts to measure tension, compression, and shear forces. Made from durable alloy steel with strain gauges for accuracy. Load Cell Shackle Ideal for cranes, hoists, and industrial machinery. Waterproof, customizable, and certified for safety. Reliable performance in harsh environments. 1000kg Load Cell Price /1 ton load cell price– High Accuracy, Durable Alloy Steel, Waterproof, Competitive Cost. Contact us for specs! ( load cell shackle, 1 ton load cell price, load cell price 1000kg )

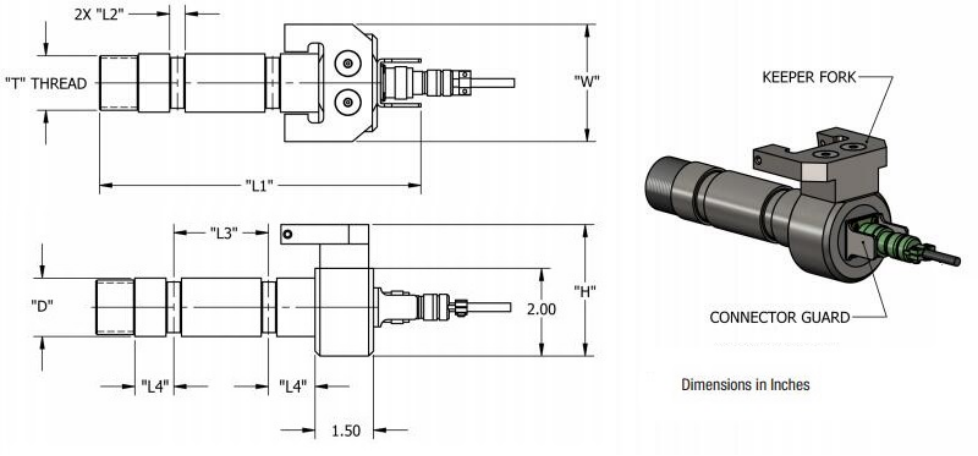

LC785 Load Cell Shackle Dimension (Inch):

Cap.	H	W	L1	L2	L3	L4	D	T(Thread)	Weight
(klbs)	inches								lbs
12	2.75NOM	1.12NOM	7.21	0.31	1.44	0.88	1	3/4-16UNF	2.5
16	3.13NOM	1.22NOM	7.82	0.31	1.69	1	1.25	7/8-14UNF	3
19	3.44NOM	1.41NOM	8.69	0.38	1.81	1.25	1.25	1-14UNF	3
24	3.75NOM	1.54NOM	9.3	0.5	2.03	1.38	1.38	1-14UNF	3.5
27	4.06NOM	1.66NOM	9.88	0.56	2.25	1.5	1.5	1-1/4-12UNF	3.7
32	4.38NOM	1.78NOM	10.4	0.63	2.38	1.63	1.63	1-1/4-12UNF	4.2
50	4.94NOM	2.41NOM	11.26	0.69	2.38	1.75	2	1-1/4-12UNF	5.7
65	5.56NOM	2.56NOM	13.13	0.69	3.25	2.25	2.25	1-3/4-16UNF	11

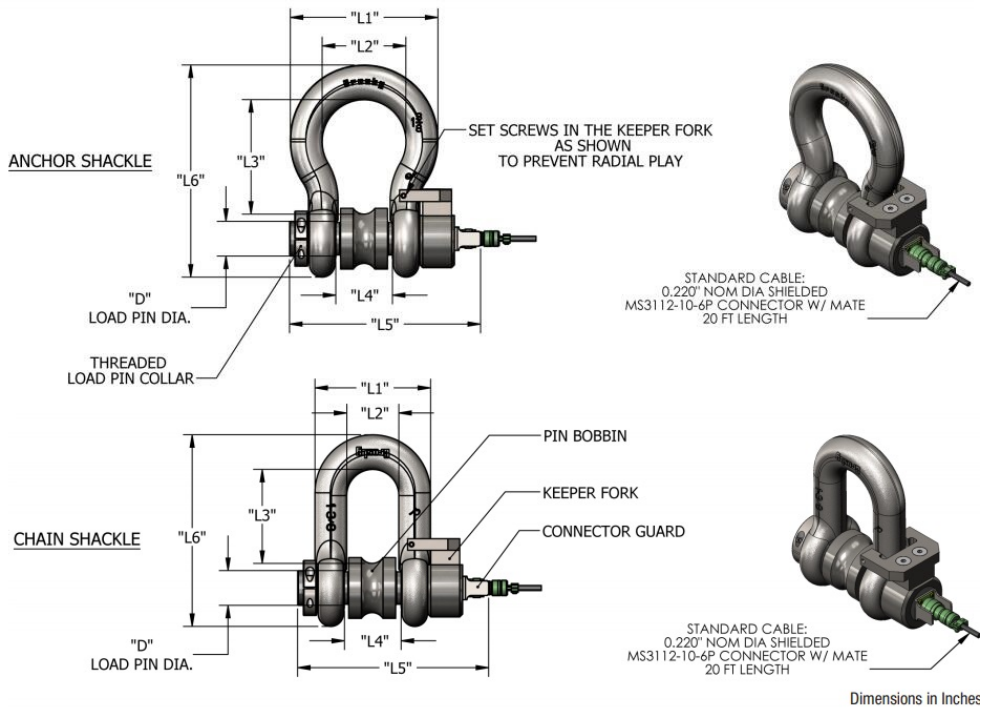

LC785 Load Cell With Shackle Dimension:

Anchor Shackle:

Cap.	L1	L2	L3	L4	L5	L6	D	Shackle Size	Weight
(klbs)	inches								lbs
12	4.03	2.28	3.19	1.44	7.21	5.83	1	7/8”	2.5
16	4.69	2.69	3.55	1.69	7.82	6.56	1.25	1”	3
19	5.16	2.91	4.25	1.81	8.69	7.47	1.25	1-1/8”	3
24	5.75	3.25	4.32	2.03	9.3	8.25	1.38	1-1/4”	3.5
27	6.38	3.63	5	2.25	9.88	9.16	1.5	1-3/8”	3.7
32	6.88	3.88	5.69	2.38	10.4	10	1.63	1-1/2”	4.2
50	8.86	5	6.5	2.88	11.26	12.34	2	1-3/4”	5.7
65	9.97	5.75	7.75	3.25	13.13	13.68	2.25	2”	11

Chain shackle:

Cap.	L1	L2	L3	L4	L5	L6	D	Shackle Size	Weight
(klbs)	inches								lbs
12	3.2	1.44	2.74	1.44	7.21	5.33	1	7/8”	2.5
16	3.69	1.69	3.04	1.69	7.82	5.94	1.25	1”	3
19	4.07	1.81	3.36	1.81	8.69	6.78	1.25	1-1/8”	3
24	4.53	2.03	3.6	2.03	9.3	7.5	1.38	1-1/4”	3.5
27	5.01	2.25	4.18	2.25	9.88	8.28	1.5	1-3/8”	3.7
32	5.38	2.38	4.81	2.38	10.4	9.05	1.63	1-1/2”	4.2
50	6.38	2.88	5.32	2.88	11.26	10.97	2	1-3/4”	5.7
65	7.25	3.25	6.32	3.25	13.13	12.74	2.25	2”	11

LC785 Load Cell Shackle Technical Parameter:

Rated Load:	12/16K/19/24/27/32/50/65Klb
Operating Modes:	Tension/Compression / Tension & Compression
Sensitivity:	2mV/V±0.1 %
Combined Error:	±0.5% F.S	Operating Temp. Range:	-10~+70℃
Creep Error(30min):	±0.05% F.S	Maximum Safe Over Load:	150%F.S
Zero Balance:	±2% F.S	Ultimate Over Load::	300%F.S
Temp. Effect On Zero:	±0.02% F.S/10℃	Recommend Excitation Vol.:	10~12V DC
Temp. Effect On Span:	±0.02% F.S/10℃	Maximum Excitation Vol.:	15V DC
Input Resistance:	350±5Ω	Sealing Class:	IP67/68
Output Resistance:	350±3Ω	Element Material:	Alloy /Stainless Steel
Insulation Resistance:	≥5000MΩ	Cable:	Length=L:3m

Remarks:

1: You can choose analog signals such as 0~5V, 0~10V, 4~20mA output from the transmitter, or opt for a digital transmitter, which can be used in conjunction with RS232/RS485 and smart instruments.

2: Load Cell Shackle the measuring range, size, installation location, etc. can be customized according to customer requirements;
