LC784
Pin Best Load Cell – Precision Force Measurement

The LC784 best load cell is an extremely rugged, high performance load pin. The LC784 best load cell load pins are designed to accurately measure compression and tension loads in capacities ranging from 0-2,000 lbs. to 0-500,000 lbs. The robust Dual Shear Beam design readily tolerates angular, end loading and side loading effects, with minimal sensitivity to these anomalies. Proprietary, axial “gun-bore” gauging techniques produce the benefits of relatively compact size and enhanced environmental sealing.
Quantity:
Contact Now
add to cart
All Products
Pin Best Load Cell – Precision Force Measurement

The LC784 best load cell is an extremely rugged, high performance load pin. The LC784 best load cell load pins are designed to accurately measure compression and tension loads in capacities ranging from 0-2,000 lbs. to 0-500,000 lbs. The robust Dual Shear Beam design readily tolerates angular, end loading and side loading effects, with minimal sensitivity to these anomalies. Proprietary, axial “gun-bore” gauging techniques produce the benefits of relatively compact size and enhanced environmental sealing. The LC784 6 wire to 4 wire load cell is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. The load pins are fitted with durable MS connectors. Companion cable/connector assemblies are available in a variety of lengths. The LC784 6 wire to 4 wire load cell offers unique mounting capabilities to address application-specific requirements. The attributes of the LC784 6 wire to 4 wire load cell make it ideal for crane/lift/winch loading, mooring line tension monitoring, sprocket/pulley force measurements, specialty applications such as web tension and steel coil weighing, as well as for O.E.M. situations where a versatile, rugged and high performance solution is needed. The LC784 Series reliability produces exceptional performance yields under extraordinary conditions in aerospace, automotive, steel processing, off-shore, power generation, mining, material handling, wood/pulp/paper, petrochemical and similarly demanding applications. ( strainsert load pin, best load cell, 6 wire to 4 wire load cell)

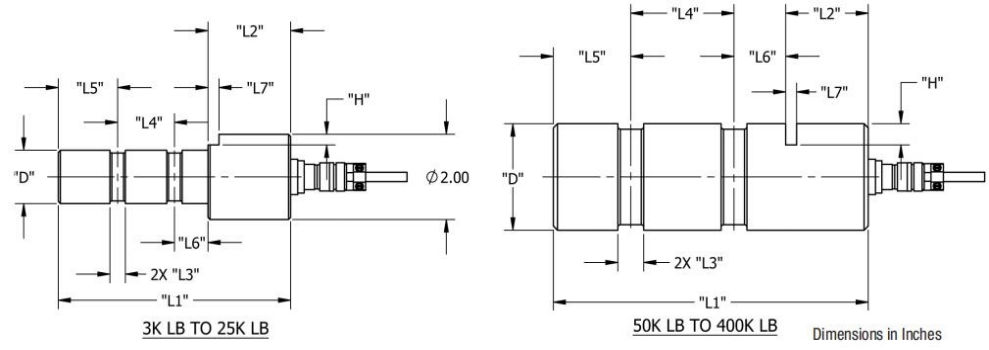

LC784 Best Load Cell Dimension (Inch):

Cap.           H            L1        L2        L3       L4          L5           L6          L7             D            Weigh
lbsDimensions (Inch)lbs
3K0.254.520.3110.910.60.20.752
10K0.254.7520.3111.130.630.212.5
15K0.255.6320.381.381.440.810.271.253
25K0.256.1320.51.631.560.940.271.53.7
50K0.386.6320.5621.6310.2725.7
75K0.57.6320.632.51.881.250.272.510.5
100K0.58.3820.692.692.221.470.42.7513.8
125K0.638.7520.6932.311.440.4317.2
160K0.631020.883.52.751.750.533.526.7
200K0.7511.752143.52.250.53441
300K115.252.251.1354.753.250.78583.2
400K1.1317.752.251.3865.633.880.786140

LC784 Best Load Cell Technical Parameter:
Rated Load:3/10/15/25/50/75/100/125/160/200/300/400Klb
Operating Modes:Tension/Compression / Tension & Compression
Sensitivity:2mV/V±0.1 %
Combined Error:±0.5% F.SOperating Temp. Range:-10~+70℃
Creep Error(30min):±0.05% F.SMaximum Safe Over Load:150%F.S
Zero Balance:±2% F.SUltimate Over Load::300%F.S
Temp. Effect On Zero:±0.02% F.S/10℃Recommend Excitation Vol.:10~12V DC
Temp. Effect On Span:±0.02% F.S/10℃Maximum Excitation Vol.:15V DC
Input Resistance:350±5ΩSealing Class:IP67/68
Output Resistance:350±3ΩElement Material:Alloy /Stainless Steel
Insulation Resistance:≥5000MΩCable:Length=L:3m

Remarks:
1: You can choose analog signals such as 0~5V, 0~10V, 4~20mA output from the transmitter, or opt for a digital transmitter, which can be used in conjunction with RS232/RS485 and smart instruments.
2: Best load cell the measuring range, size, installation location, etc. can be customized according to customer requirements;
