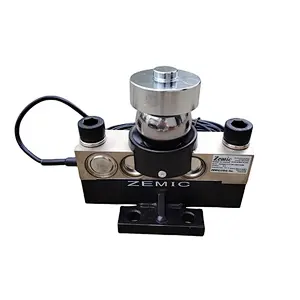

zemic hm9b /zemic hm9b 30t Short Description:
✅ Nickel plated alloy steel IP68 dual shear beam load cell;
✅ High accuracy;
✅ Suitable for truck, track, hopper and other electronic weighing devices;
✅ Current calibrated (sc-option);
✅ Nickel plated alloy steel IP68 dual shear beam load cell;
✅ High accuracy;
✅ Suitable for truck, track, hopper and other electronic weighing devices;
✅ Current calibrated (sc-option);
Quantity:
zemic hm9b /zemic hm9b 30t Short Description:
✅ Nickel plated alloy steel IP68 dual shear beam load cell;
✅ High accuracy;
✅ Suitable for truck, track, hopper and other electronic weighing devices;
✅ Current calibrated (sc-option);
load cell zemic hm9b Available models:
| Capacity | Accuracy | Full article description |
| 10t | C3 | HM9B-C3-10t-16B |
| 20t | C3 | HM9B-C3-20t-16B |
| 25t | C3 | HM9B-C3-25t-16B(-SC) |
| 30t | C3 | HM9B-C3-30t-16B(-SC) |
| 40t LE | C3 | HM9B-C3-40t LE-16B |
| 40t | C3 | HM9B-C3-40t-16B |
| 50t | C3 | HM9B-C3-50t-16B |

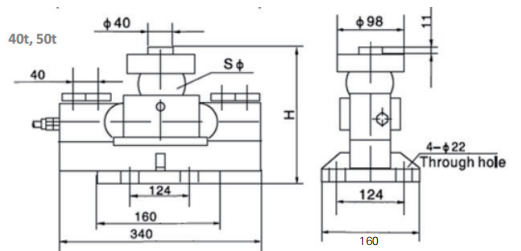

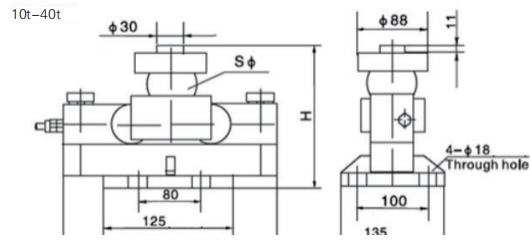

zemic hm9b /zemic hm9b 30t Dimension: mm
| Dimension | H | ΦS |
| Capacity | ||
| 10t | 195(7.68) | 50(1.97) |
| 20t-40t | 225(8.86) | 76(2.99) |
| 40tLE, 50t | 267(10.51) | 82(3.23) |
zemic hm9b /zemic hm9b c3 30t load cell Technical Parameter:
| Accuracy class | OIML R60 C3 | ||||
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.002 | |||
| Maximum capacity ( Emax ) | t | 10, 20, 25 | 30, 40LE, 40, 50 | ||
| Maximum number of load cell intervals ( nLC ) | 3000 | ||||
| Ratio of minimum LC verification interval Y = Emax / vmin | 15000 | 7500 | |||
| Combined error | %FS | ± 0.023 | |||
| Minimum dead load | klb | 0 | |||
| Safe overload | of Emax | 150% | |||
| Ultimate overload | of Emax | 300% | |||
| Zero balance | %FS | ± 1.5 | |||
| Excitation, recommended voltage | V | 5 ~ 12( DC ) | |||
| Excitation maximum | V | 18( DC ) | |||
| Input resistance | Ω | 700 ± 7 | |||
| Output resistance | Ω | 700 ± 7 | |||
| Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | |||
| Compensated temperature | ℃ | -10 ~ +40 | |||
| Operating temperature | ℃ | -35 ~ +65 | |||
| Storage temperature | ℃ | -40 ~ +70 | |||
| Element material | Nickel plated alloy steel | ||||
| Ingress protection (according to EN 60529) | IP68 | ||||
| ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | ||
zemic hm9b / zemic dhm9bd10 digital load cell Wiring:
✅ Shielded, 4 conductor cable;
✅ Cable diameter: Φ5.5mm;
✅ Standard cable length: 16m, also available in 12m;
✅ Shield not connected to element;
