Yarn Tension Sensors

Yarn Tension Sensors

LC7010
The yarn tension sensor for a textile machine, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Yarn Tension Sensors for Textile Industry /yarn tension sensor for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials.
Quantity:
Contact Now
add to cart
All Products
The yarn tension sensor for a textile machine, made of aluminium alloy, resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, low tension can also be accurately measured. A variety of installation methods: stack or hole type, can meet various installation needs.Yarn Tension Sensors for Textile Industry /yarn tension sensor for a textile machine used for tension detection between unwinding, winding and moving, including wire, wire, glass fiber, rubber and composite materials. ( yarn tension sensors, yarn tension sensor for a textile machine, Yarn Tension Sensors for Textile Industry )

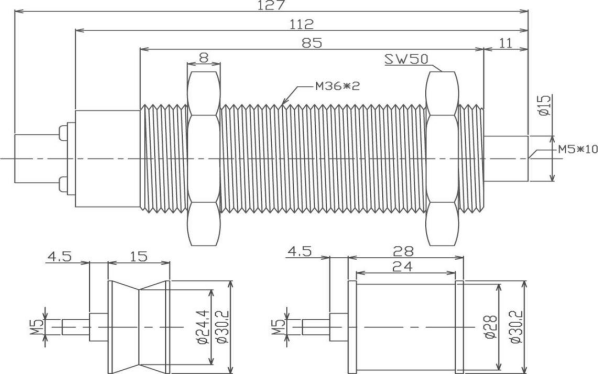

LC7010 Yarn Tension Sensors Dimension:mm


LC7010 Yarn Tension Sensors Technical Parameter:
Capacity:200/500/1000/2000g
Rated Output:1.0mv/v±1%Temp.Compensated-10℃ to+40℃
Zero Balance:±1% of rated outputSafe Overload1.5
Creep After 30 Minutes:±0.03% of rated outputInput Impedance387 Ω±20Ω
Nonlinearity:±0.3% of rated outputOutput Impedance350 Ω±5Ω
Hysteresis:±0.03% of rated outputInsulation Resistance≥5000MΩ(50VDC)
Repeatability:±0.3% of rated outputRated Excitation5V DC/AC
Temp. effect on output:≤0.03% of applied output/℃Max. Excitation10V DC/AC
Temp. Effect on zero:≤0.03% of rated output/℃Protection ClassIP65
Safe temp. Range:-20℃ to+70℃Load Cell BlockAluminum and Stainless Steel Shell
