Rope Tension Load Cell
LCMR100
Multi-rope Hoist Monitoring System / miniature tension sensor,This system provides real-time monitoring of load and tension across all ropes on multi-rope friction hoists.Multi-rope Hoist Monitoring System / miniature tension sensor, detects imbalances to prevent failures, ensures safety in harsh mining environments, reduces downtime, and extends equipment life. A vital solution for predictive maintenance and operational reliability.
Quantity:
Multi-rope Hoist Monitoring System / miniature tension sensor,This system provides real-time monitoring of load and tension across all ropes on multi-rope friction hoists.Multi-rope Hoist Monitoring System / miniature tension sensor, detects imbalances to prevent failures, ensures safety in harsh mining environments, reduces downtime, and extends equipment life. A vital solution for predictive maintenance and operational reliability. ( Multi-rope Hoist Monitoring System, rope tension load cell, miniature tension sensor )
LCMR100 Rope Tension Load Cell Main Features:
◼ Meets the requirements of EN81;
◼ Supports 2 sets of relay signal outputs (optional for 3 sets of relays);
◼ Multi button operation, quick and easy debugging;
◼ Green, high-efficiency, low energy power supply;
◼ No need to predict weight, visually display load capacity;
◼ 4-digit LED digital tube and multi status indicator display;
◼ Accurate, convenient, and stable with excellent cost-effectiveness;
◼ Integrated design structure without the need for additional cable connections;
◼ Suitable for measuring multiple steel wire ropes with a diameter of 4-16mm;

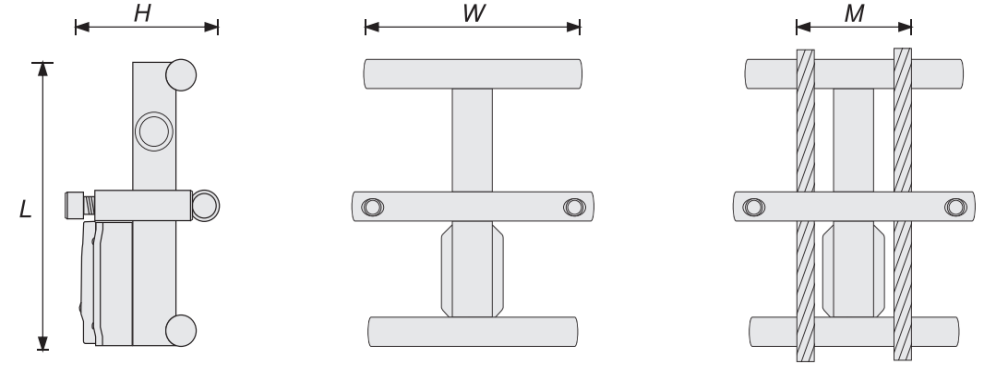

LCMR100 Rope Tension Load Cell Dimension:
| Type | LCMR100 | LCMR200 | LCMR300 |
 |  |  | |
| Length (L) | 208mm | 208mm | 208mm |
| Width (W) | 158mm | 230mm | 306mm |
| Height (H) | 93mm | 93mm | 93mm |
| Max. Width (M) | 114mm | 187mm | 264mm |
LCMR100 Rope Tension Load Cell Technical Parameter:
| Operating voltage | 16~48V AC/DC |
| Rated frequency | 50/60Hz |
| Rated power | ≤4W |
| Wire rope diameter | 4-16mm |
| Load range | 300～2500kg |
| Maximum load | ≤5000kg |
| Input voltage | 12～230V AC/DC |
| Alarm method | Sound, light, and electricity |
| Display data | 4-digit digital tube display |
| Number of alarm relays | 2 Pcs |
| Contact rating | 3A/250VAC 3A/24VDC |
| Shell material | Flame-retardant abs |
| Sensor material | Aluminum alloy+iron |
| Working temperature | .-20℃ ... +60℃ |
| Protection class | IP45 |
| Size | 208 × 158 × 93mm |
| Cable length | 3m (standard) |

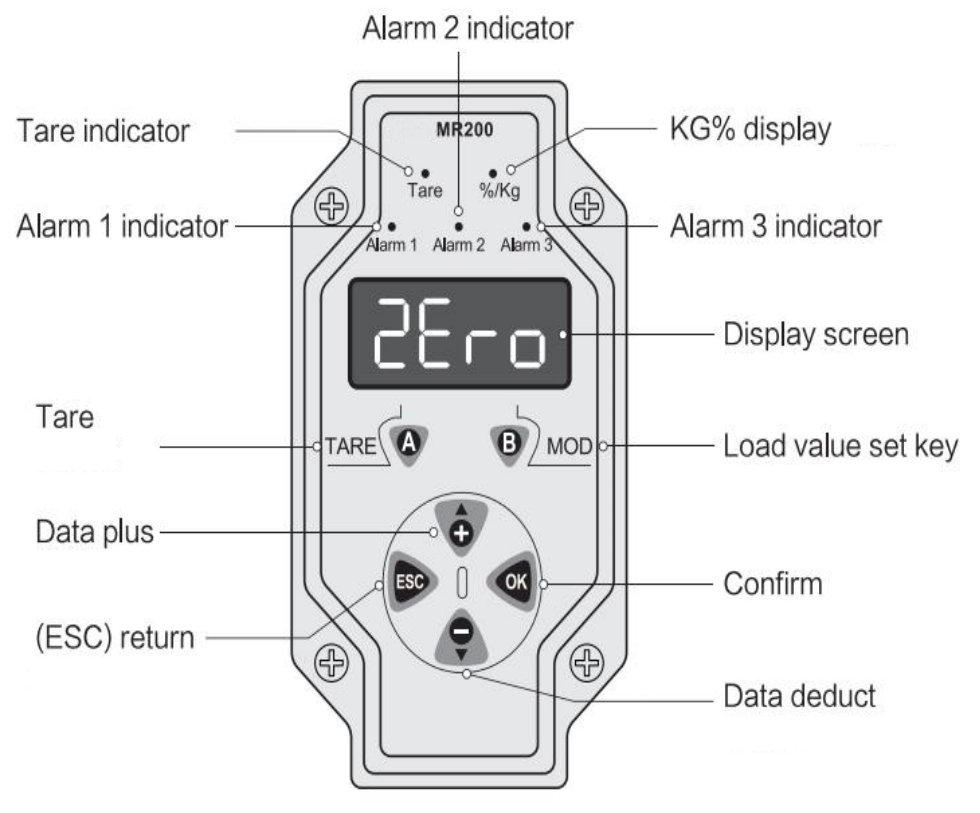

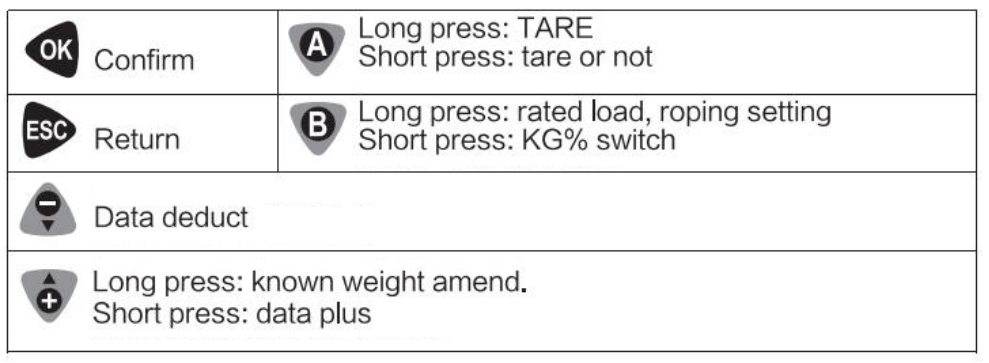

LCMR100 Rope Tension Load Cell Controller Apperance:
