Rope Load Cell
LC3003
Three Pulley Load Cell / Three pulley tension sensor accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Three Pulley Load Cell / Three pulley tension sensor provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments.
Quantity:
Three Pulley Load Cell / Three pulley tension sensor accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Three Pulley Load Cell / Three pulley tension sensor provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments. ( rope load cell, Three Pulley Load Cell, Three pulley tension sensor )
LC3003 Rope Load Cell Product Features:
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
LC3003 Rope Load Cell Product Usage:
Three Pulley Load Cell / Three pulley tension sensor Suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.
Three Pulley Load Cell / Three pulley tension sensor Suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.

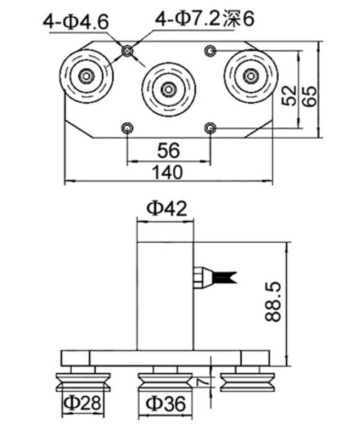

LC3003 Rope Load Cell Dimension:mm
LC3003 Rope Load Cell Technical Parameter:
| Capacity: | 0N~500N | Temp. Effect on zero: | ≤±0.03％F·S/10℃ |
| Zero Balance: | ≤±1%F.S | Safe temp. Range: | -20℃～+60℃ |
| Sensitivity: | 1.5mV/V | Input Impedance: | 380±30Ω |
| Nonlinearity: | ≤±0.5%F.S | Output Impedance: | 350±2Ω |
| Hysteresis: | ≤±0.5%F.S | Insulation Resistance: | ≥5000MΩ/100VDC |
| Repeatability: | ≤±0.5%F.S | Max. Safe Over Load: | 120％F·S |
| Creep After 30 Minutes: | ≤±0.05%F.S/30Mini | Rated Excitation | 5～12VDC(Recommend 10VDC) |
| Temp. effect on output: | ≤±0.03％F·S/10℃ | Load Cell Block | Alloy /Stainless Steel |
