Yarn Tension Sensor
LC3005
Three Pulley Sensor / three pulley tension measuring transducer, Designed for precise tension measurement in industrial applications such as conveyor systems, textile machinery, and automated processing lines.Its three-pulley structure ensures enhanced accuracy, stability, and durability. Three Pulley Sensor / three pulley tension measuring transducer Supports analog or digital output for easy integration with control systems. Robust construction resists wear in harsh environments, ensuring long-term reliability and minimal maintenance. Ideal for real-time monitoring and process optimization.
Quantity:
Three Pulley Sensor / three pulley tension measuring transducer, Designed for precise tension measurement in industrial applications such as conveyor systems, textile machinery, and automated processing lines.Its three-pulley structure ensures enhanced accuracy, stability, and durability. Three Pulley Sensor / three pulley tension measuring transducer Supports analog or digital output for easy integration with control systems. Robust construction resists wear in harsh environments, ensuring long-term reliability and minimal maintenance. Ideal for real-time monitoring and process optimization. ( Three pulley sensor, yarn tension sensor, three pulley tension measuring transducer )
LC3005 Yarn Tension Sensor Key Features:
✅ High-precision tension sensing
✅ Triple-pulley design for reduced error
✅ Compatible with industrial automation protocols
✅ Corrosion-resistant materials
✅ Low maintenance, high durability

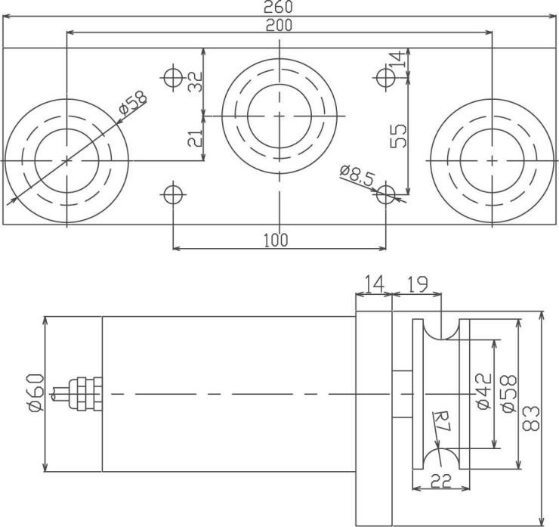

LC3005 Yarn Tension Sensor Dimension: in mm
LC3005 Yarn Tension Sensor Products specification:
Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes, steel belts. It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc. It has high measurement accuracy, reliability and stability in the field of tension measurement. The Three Pulley Sensor / three pulley tension measuring transducer has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product. It is the choice for high-performance tension control applications in continuous material processing and production;
LC3005 Yarn Tension Sensor Technical Parameter:
| Wire Rope Size: | 100/200/300/500/1000kg | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
