Wireless Scales Racing
WS1180-4
A wireless scales racing is a high-precision weighing tool used to measure a race car's weight distribution, optimizing balance, handling, and performance while ensuring compliance with regulations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static Weighing;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static Weighing;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Quantity:
( wireless scales racing , corner weight scales , corner weight scales for sale wireless scales racing , corner weight scales , corner weight scales for sale wireless scales racing , corner weight scales , corner weight scales for sale wireless scales racing , corner weight scales , corner weight scales for sale wireless scales racing , corner weight scales , corner weight scales for sale )
A corner weight scales is a high-precision weighing tool used to measure a race car's weight distribution,optimizing balance, handling, and performance while ensuring compliance with regulations.
Corner weight scales with compact design aluminum alloy. Capacity up to 500kg/each. IP67 alloy aluminum steel load cell. With handle for easy movement. Optional oxidation process. Electronic corner weight scales for sale are an integral part of any professional race team's set up equipment. Corner weight scales are essential to assist in adjustment of weight distribution through ride height, spring/damper stiffness and suspension geometry to ensure maximum grip for your race car. Special edition for race cars. ABS suitcase. RS232 interface, Weighing records retrieve.
Precision Tool for Weight Distribution: A wireless scales racing measures a car's weight distribution with high accuracy, crucial for optimizing balance and performance on the track.
Essential for Performance Tuning: Wireless scales racing be used to analyze static and dynamic weight loads, racing scales help fine-tune suspension and handling for maximum speed and stability.
Compliance and Optimization: Wireless scales racing ensure vehicles meet weight regulations while providing data to improve weight distribution and overall race performance.
Dynamic and Static Weighing: These wireless scales racing offer both static measurements for setup and dynamic data during motion, enabling real-time adjustments for better handling and grip.

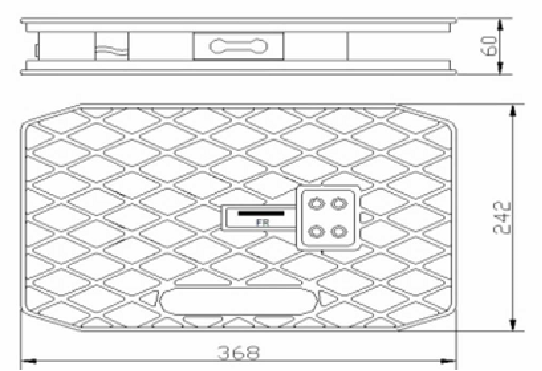

WS1180 Wireless Scales Racing Dimension:mm
WS1180 Wireless Scales Racing Key Features:
◎One set consists of 4 weigh pads and 1dispaly indicator;
◎Platform Size:368x242x60mm;
◎Material: Aluminum Alloy;
◎Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
◎Ultra precise load cells with 0.05% accuracy;
◎Displays to 4 significant places;
◎Large backlit screen for easy reading, even in direct sunlight;
◎Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
◎Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
◎Selectable display in either Kgs or lbs;
◎Max weight: 500Kg per pad, 2000Kg in total;
◎USB & parallel printer output ports;
◎Designed to meet strict quality control standards;
◎12-month warranty as standard;
◎Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
◎Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
◎50:50 Driving, Target weight calculation for each wheel;
◎Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);

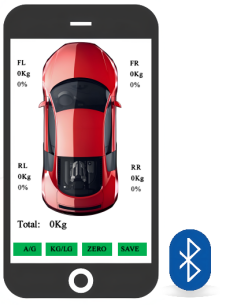

Wireless mobile phone software version:
Optional Car Scales app for iOS and Android
WS1180 Wireless Scales Racing Use:
◎Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time;
◎Ensure you comply with min/max weight restrictions for your class;
◎If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings;
Waring:
The effectiveness of this wireless scales racing system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult wireless scales racing the manufacturer. Wireless scales racing systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the corner weight scales for sale manufacturer if the software or hardware is damaged in any way or does not function properly.
Corner Weight Scales Applications:
✅ Circuit Racing: (GT, Touring Car, Open-Wheel) Fine-tuning handling for specific tracks and conditions.
✅ Drag Racing: Optimizing weight transfer for maximum traction off the line.
✅ Rally & Off-Road: Setting up suspension for a balance of stability and agility.
✅ High-Performance Automotive: For track-day enthusiasts and professional tuning shops.
✅ Karting: Establishing the fundamental balance of competition karts.
✅ Circuit Racing: (GT, Touring Car, Open-Wheel) Fine-tuning handling for specific tracks and conditions.
✅ Drag Racing: Optimizing weight transfer for maximum traction off the line.
✅ Rally & Off-Road: Setting up suspension for a balance of stability and agility.
✅ High-Performance Automotive: For track-day enthusiasts and professional tuning shops.
✅ Karting: Establishing the fundamental balance of competition karts.

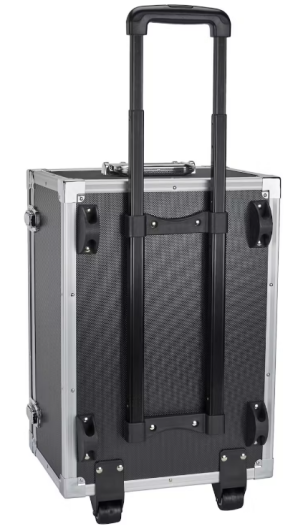

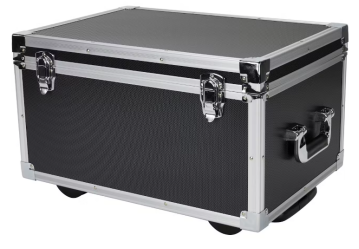

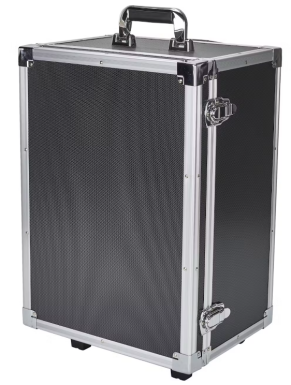

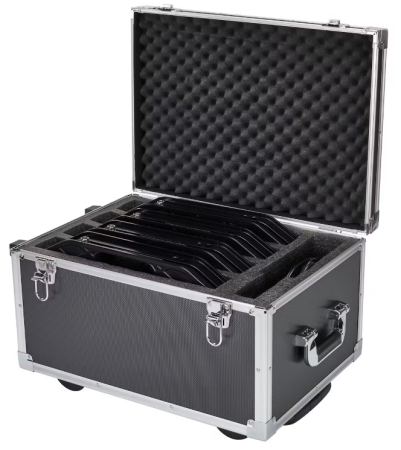

Wireless scales racing Packaging Details ——Tool Box:
