Race Scale
WS1180-3
A Race Scale is a high-precision weighing tool used to measure a race car's weight distribution,optimizing balance, handling, and performance while ensuring compliance with regulations.
Quantity:
A Race Scale is a high-precision weighing tool used to measure a race car's weight distribution,optimizing balance, handling, and performance while ensuring compliance with regulations.
Race scale Compact design aluminum alloy. Race scale Capacity up to 500kg/each. IP67 alloy aluminum steel load cell. With handle for easy movement. Optional oxidation process. Electronic race scale are an integral part of any professional race team's set up equipment. These are essential to assist in adjustment of weight distribution through ride height, spring/damper stiffness and suspension geometry to ensure maximum grip for your race car. Special edition for race cars. ABS suitcase. RS232 interface, Weighing records retrieve.
Precision Tool for Weight Distribution: A race scale measures a car's weight distribution with high accuracy, crucial for optimizing balance and performance on the track.
Essential for Performance Tuning: Digital race scale be used to analyze static and dynamic weight loads, racing scales help fine-tune suspension and handling for maximum speed and stability.
Compliance and Optimization: Digital race scale ensure vehicles meet weight regulations while providing data to improve weight distribution and overall race performance.
Dynamic and Static Weighing: These race scale offer both static measurements for setup and dynamic data during motion, enabling real-time adjustments for better handling and grip.
Dimension:mm
Motorsport corner weight scales' Key Features:
◎One set motorsport corner weight scales consists of 4 weigh pads and 1dispaly indicator;
◎Platform Size:368x242x60mm;
◎Motorsport corner weight scales body material: Aluminum Alloy;
◎Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
◎Ultra precise load cells with 0.05% accuracy;
◎Displays to 4 significant places;
◎Large backlit screen for easy reading, even in direct sunlight;
◎Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
◎Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
◎Selectable display in either Kgs or lbs;
◎Max weight: 500Kg per pad, 2000Kg in total;
◎USB & parallel printer output ports;
◎Designed to meet strict quality control standards;
◎12-month warranty as standard;
◎Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
◎Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
◎50:50 Driving, Target weight calculation for each wheel;
◎Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
Wired version can be equipped with optional instruments: Wireless version can be equipped with optional instruments:
MWI110 WI6901
Use:
◎Record measurements & once your ideal setup is found, use this motorsport corner weight scales system to ensure that on your car is race ready every time;
◎Ensure you comply with min/max weight restrictions for your class;
◎If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings;
Waring:
The effectiveness of this car corner scales system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Car corner scales systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the car corner scales manufacturer if the software or hardware is damaged in any way or does not function properly.

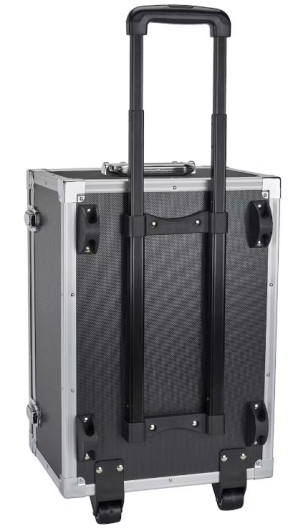

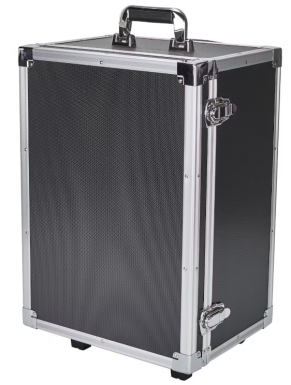

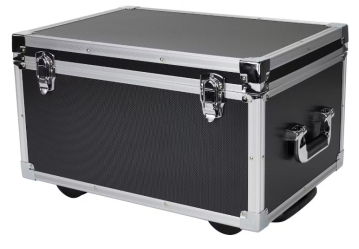

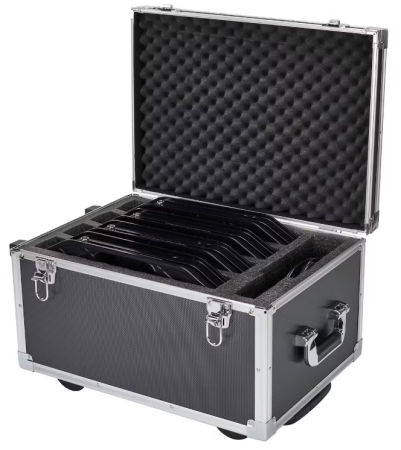

Car corner scales Packaging Details ——Tool Box:
