Race scales
WS1180-1
A race scales is a high-precision tool used to measure a race car's weight distribution. It helps optimize balance, handling, and performance by providing accurate data on wheel or axle loads. Essential for tuning and compliance, race scales ensures the car meets weight regulations while maximizing speed and stability on the track.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static Weighing;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Static Weighing;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Quantity:
Race scales , cheap race car scales , digital racing scales Race scales , cheap race car scales , digital racing scales Race scales , cheap race car scales , digital racing scales Race scales , cheap race car scales , digital racing scales Race scales , cheap race car scales , digital racing scales Race scales , cheap race car scales , digital racing scales
Precision Race scales are an indispensable tool for the serious racing team. They go beyond simple weighing to provide critical data on a vehicle's weight distribution, corner weights, and ride height. In a sport where tenths of a second separate winners from the rest, achieving perfect chassis balance is non-negotiable. Our Race scales deliver the laboratory-grade accuracy required to fine-tune your vehicle's setup for optimal grip, handling, and performance on the track.
Precision Race scales are an indispensable tool for the serious racing team. They go beyond simple weighing to provide critical data on a vehicle's weight distribution, corner weights, and ride height. In a sport where tenths of a second separate winners from the rest, achieving perfect chassis balance is non-negotiable. Our Race scales deliver the laboratory-grade accuracy required to fine-tune your vehicle's setup for optimal grip, handling, and performance on the track.
Precision Tool for Weight Distribution: A digital racing scales measures a car's weight distribution with high accuracy, crucial for optimizing balance and performance on the track.
Essential for Performance Tuning: Digital racing scales be used to analyze static and dynamic weight loads, racing scales help fine-tune suspension and handling for maximum speed and stability.
Compliance and Optimization: Digital racing scales ensure vehicles meet weight regulations while providing data to improve weight distribution and overall race performance.
Dynamic and Static Weighing: These race scales offer both static measurements for setup and dynamic data during motion, enabling real-time adjustments for better handling and grip.
Race scales with compact design aluminum alloy. Capacity up to 500kg/each. IP67 alloy aluminum steel load cell. With handle for easy movement. Optional oxidation process. Cheap race car scales are an integral part of any professional race team's set up equipment. Digital racing scales are essential to assist in adjustment of weight distribution through ride height, spring/damper stiffness and suspension geometry to ensure maximum grip for your race car. Special edition for race cars. ABS suitcase. RS232 interface, Weighing records retrieve.

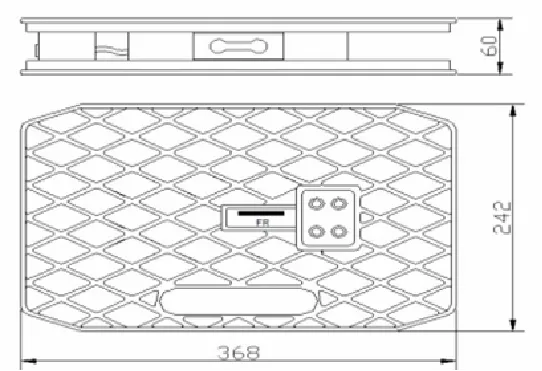

WS1180 Race Scales Dimension:mm
WS1180 Race scales Key Features:◎One set consists of 4 weigh pads and 1dispaly indicator;
◎Platform Size:368x242x60mm;
◎Material: Aluminum Alloy;
◎Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
◎Ultra precise load cells with 0.05% accuracy;
◎Displays to 4 significant places;
◎Large backlit screen for easy reading, even in direct sunlight;
◎Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
◎Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
◎Selectable display in either Kgs or lbs;
◎Max weight: 500Kg per pad, 2000Kg in total;
◎USB & parallel printer output ports;
◎Designed to meet strict quality control standards;
◎12-month warranty as standard;
◎Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
◎Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
◎50:50 Driving, Target weight calculation for each wheel;
◎Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
Wired version can be equipped with optional instruments:
MWI110WS1180 Race scales Use:◎Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time;
◎Ensure you comply with min/max weight restrictions for your class;
◎If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings;
Waring:
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.

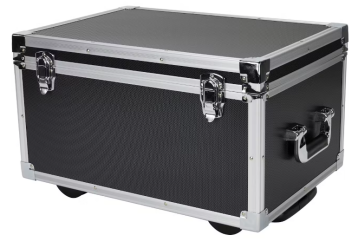

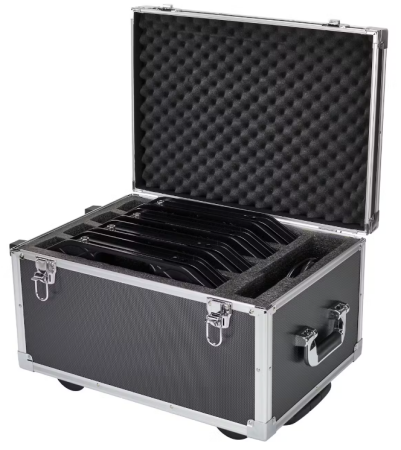

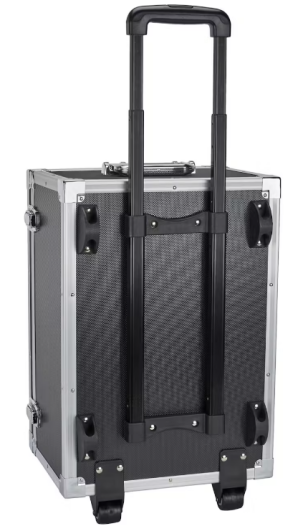

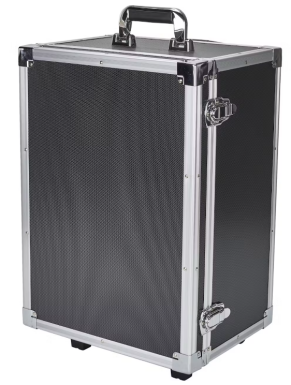

WS1180 Race scales Packaging Details ——Tool Box:
