wireless Compression Load Cell
LC4507
Removing the reliability issues with troublesome and hard to maintain cables, large scale weighing projects can now be completed in a fraction of the time previously required. The Saintbond wireless compression load cells are manufactured from alloy steel or stainless steel with a lightweight aluminium jacket and with a load centring domed top.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.:LC4507
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:10~300t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.:LC4507
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:10~300t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
Delivery
EXW or FOB
minimum order
2 sheets
Supply Ability
20000sheets / Month
Country of Origin
China
Stock Time
25-35Day
Quantity:
wireless compression load cell, compression load cell , compressive load cell wireless compression load cell, compression load cell , compressive load cell wireless compression load cell, compression load cell , compressive load cell wireless compression load cell, compression load cell , compressive load cell wireless compression load cell, compression load cell , compressive load cell
LC4507 compressive load cell Vailable in capacities from 10t to 500t.
Removing the reliability issues with troublesome and hard to maintain cables, large scale weighing projects can now be completed in a fraction of the time previously required. The Saintbond wireless compression load cells are manufactured from alloy steel or stainless steel with a lightweight aluminium jacket and with a load centring domed top. They can also be supplied with optional load-cap to protect the item being weighed. Maintenance costs are all but eliminated due to the absence of cables and connectors, and the products added flexibility opens the door to world of new possibilities. All Saintbond wireless compression load cells benefit from our advanced microprocessor based electronics and un-rivalled resolution and accuracy. Data transmission is handled by the Saintbond Wireless system, providing high integrity, error free transmission of data via the latest in wireless technology and is capable of a license free transmission range of up to 50~200m or 800m (can be customized ).
LC4507 Wireless Compression Load Cell Features & Benefits:
✅ Alloy Steel / Stainless Steel loadcell with lightweight aluminium jacket;
✅ No easy to break cables;
✅ Industry Leading Wireless Range of 50~200m / 800m (can be customized);
✅ Massive battery life from standard AA batteries;
✅ Remote On-Off;
✅ Error Free Data Transmission;
✅ Connects to Saintbond range of wireless accessories and software solutions;
The Saintbond wireless compression load cells require connection to our wireless weighing indicator or weighing system. Saintbond wireless compression load cells are used in a broad range of industries including steel fabrication, ship building, structural weighing, shipping, and general transportation sectors, allowing for the calculation of total mass and the centre of gravity on loads up to and exceeding 12,000t.

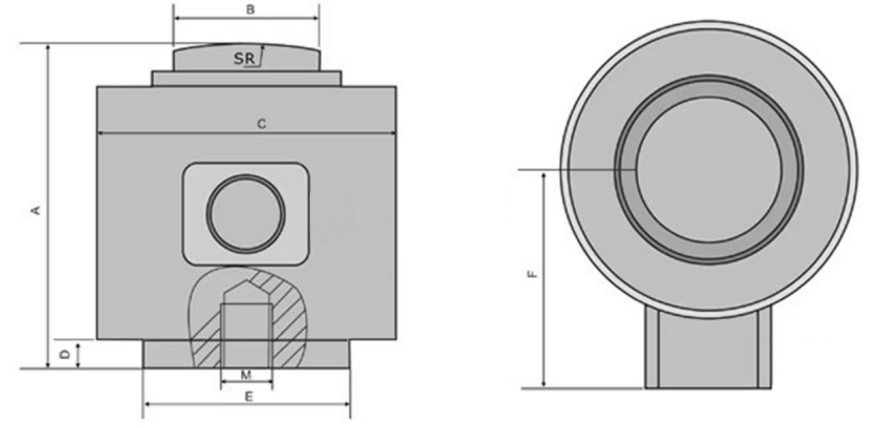

LC4507 Wireless Compression Load Cell Dimension: mm
| Capacity | A | B | C | D | E | F | M | SR |
| 10~20t | 83.3 | 31.8 | 82 | 1.8 | 58 | 64 | M12 | 152 |
| 50t | 129.9 | 58.7 | 120 | 11 | 82.5 | 87 | M20X2.5 | 152 |
| 100t | 186 | 79.2 | 152 | 21.8 | 123.8 | 108.2 | M20X2.5 | 432 |
| 300t | 250 | 115 | 167.6 | 25.7 | 155.6 | 111.2 | M20X2.5 | 600 |
LC4507 Wireless Compression Load Cell Technical Parameter:
| Rated Load: | 10/20/30/50/100/200/300/500t | ||
| Sensitivity: | 1.0mV/V ± 0.1% | Recommended Excitation: | 10~12V DC |
| Zero Balance: | ± 0.02mV/V | Maximum Excitation: | 15V DC |
| Non-linearity: | < ± 0.023%F.S | Temperature Effect on Sensitivity: | < ±0.0012% of Cn/k |
| Repeatability: | < ± 0.030%F.S | Temperature Effect on Zero Balance: | < ± 0.0040% of Cn/k |
| Hysteresis Error: | < ± 0.030%F.S | Operating Temperature Range: | .-30°C to 70°C/-20°F to 160°F |
| Creep in 30 minutes: | < ± 0.030%F.S | Storage Temperature Range: | .-50°C to 85°C/-58°F to 185°F |
| Input Resistance: | 775Ω ±5Ω | Safe Overload: | 150%F.S |
| Output Resistance: | 700Ω ± 2Ω | Breaking Overload: | 300%F.S |
| Insulation Resistance: | > 5000MΩ (50V DC) | Sealing Class: | IP67 / IP68 |
Wireless Weighing Indicator Technical Parameter:
| Model name | WI280 / WI680 |
| Display | 192 × 64 dot matrix LCD screen |
| Weighing Units | kg/t/lb/kN… |
| Division | 1/2/5/10/20/50/100 optional |
| Dimension(mm) | 230×120×100mm |
| Power supply | Rechargeable battery 7.4V / 2500mA |
| Power supply | or 8.4V / 1A charger |
| External Interface | Optional |
| Operating temperature | -25°C~50°C, RH 10%~85%, Non-condensing |
| Storage temperature | -30°C~55°C, RH 10%~85%,Non-condensing |
| Communication | Wireless interface,434M~470MHZ |
| Characteristic | Wireless display indicator, it can connect to 1~16 channel wireless sender for show each weight and total weight, it can save 200pcs weighing records, optional RS232 for continuous output current weight |
