Wire Tension Sensor
LC4001
Web tension transducer / ultrasonic tension meter accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Web tension transducer / ultrasonic tension meter provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments.
Quantity:
Web tension transducer / ultrasonic tension meter accurately measure and monitor tension in wire ropes, cables, and synthetic lines with our robust load cell. Designed for demanding applications in rigging, marine, construction, and safety systems, Web tension transducer / ultrasonic tension meter provides reliable, real-time data to ensure operational safety and efficiency. Its durable, weather-resistant design offers easy installation and high-precision performance in the harshest environments. ( wire tension sensor, ultrasonic tension meter, web tension transducer )
LCS4001 Wire Tension Sensor Product Features:
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
It has the characteristics of high precision and reliable sealing, and can be used for both portable handheld and online tension detection and control of devices.
LCS4001 Wire Tension Sensor Product Usage:
Web tension transducer / ultrasonic tension meter suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.
Web tension transducer / ultrasonic tension meter suitable for tension measurement of various optical fibers, yarns, chemical fiber metal wires, wires, cables, tapes, and steel strips; Widely used in the fields of textile, electronic chemical papermaking, machinery, and industrial automation measurement and control.

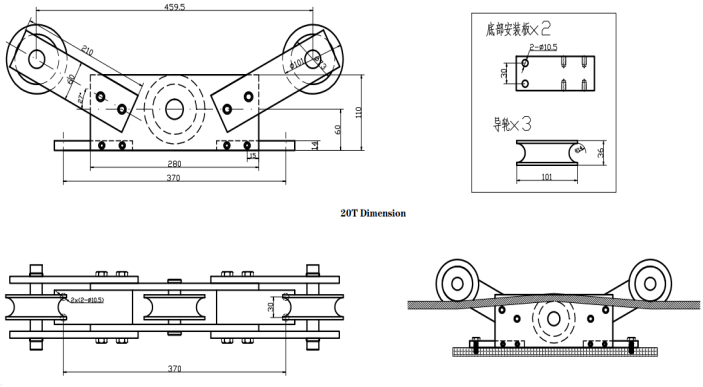

LCS4001 Wire Tension Sensor Dimension:mm
Note: Can be designed and customized according to customer requirements;
LCS4001 Wire Tension Sensor Technical Parameter:
| Wire Rope Size: | 0~50t | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temperature Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 700±10Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 700±5Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
