Wire Rope Tension Load Cell
LC104-1
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC104
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~20t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC104
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~20t
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
EXW FOB
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
30Day
Quantity:
wire rope tension load cell, load cell sensor 500kg,10kn load cell wire rope tension load cell, load cell sensor 500kg,10kn load cell wire rope tension load cell, load cell sensor 500kg,10kn load cell wire rope tension load cell, load cell sensor 500kg,10kn load cell
Ningbo Saintbond ——Wire Rope Tension Load Cell
Precision Tension Measurement, Seamlessly Integrated.
Precision Tension Measurement, Seamlessly Integrated.
The Ningbo Saintbond Wire Rope Tension Load Cell is an innovative, in-line sensor designed to directly and accurately measure the tensile force in a wire rope system. By replacing a section of your existing wire rope, it transforms your rigging, lifting, or suspension setup into a smart, monitored system, providing critical data for safety, control, and operational efficiency.

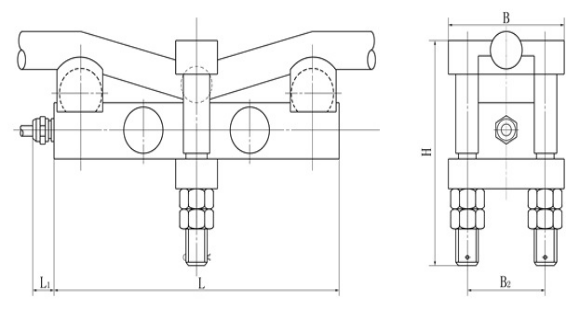

LC104 Wire Rope Tension Load Cell Dimension:mm
| Wire Rope Tension | Cap. | Wire Rope Dia. | H | L | L1 | B | B1 |
| (t) | (t) | ( mm ) | |||||
| 1t | 1t | Ø6-14 | 117 | 160 | 18 | 76 | 45 |
| 2t | 1t | Ø10-18 | 117 | 160 | 18 | 76 | 45 |
| 5t | 2t | Ø16-26 | 117 | 160 | 18 | 76 | 45 |
| 10-20t | 5-10t | Ø24-36 | 170 | 260 | 18 | 108 | 68 |
| 20t | 10t | Ø24-36 | 175 | 272 | 18 | 112 | 72 |
LC104 Wire Rope Tension Load Cell Technical Parameter:
| Wire Rope Size: | 1/2/3/5/10t | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temperature Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
LC104 Wire Rope Tension Load Cell Typical Applications:
This LC104 Wire Rope Tension Load Cell is ideal for any industry where monitoring the tension in wire ropes is crucial for safety and performance:
Cranes & Hoists: Overhead cranes, mobile cranes, and tower cranes for load moment indication and anti-sway systems.
Marine & Offshore: Mooring line tension monitoring, anchor handling, winch load monitoring, and deck cranes.
Construction & Infrastructure: Monitoring tension in suspension bridges, elevators, and cable-supported structures.
Mining & Quarrying: Shovel and dragline hoist rope monitoring, and conveyor belt tensioning systems.
Stage & Rigging: For safely suspending heavy lighting, sound equipment, and displays in theatres and concert venues.
This LC104 Wire Rope Tension Load Cell is ideal for any industry where monitoring the tension in wire ropes is crucial for safety and performance:
Cranes & Hoists: Overhead cranes, mobile cranes, and tower cranes for load moment indication and anti-sway systems.
Marine & Offshore: Mooring line tension monitoring, anchor handling, winch load monitoring, and deck cranes.
Construction & Infrastructure: Monitoring tension in suspension bridges, elevators, and cable-supported structures.
Mining & Quarrying: Shovel and dragline hoist rope monitoring, and conveyor belt tensioning systems.
Stage & Rigging: For safely suspending heavy lighting, sound equipment, and displays in theatres and concert venues.
How Wire Rope Tension Load Cell Works?
The LC104 Wire Rope Tension Load Cell is manufactured as a dedicated, high-strength section with a central sensing element. When tension is applied to the wire rope, the force is transmitted through the load cell, causing a minute, elastic deformation. This deformation is detected by the internal strain gauges, which convert the mechanical force into a proportional electrical signal (typically mV/V for analog versions or digital outputs like RS485). This signal is then transmitted to a readout meter, PLC, or data acquisition system for display, recording, and control.
The LC104 Wire Rope Tension Load Cell is manufactured as a dedicated, high-strength section with a central sensing element. When tension is applied to the wire rope, the force is transmitted through the load cell, causing a minute, elastic deformation. This deformation is detected by the internal strain gauges, which convert the mechanical force into a proportional electrical signal (typically mV/V for analog versions or digital outputs like RS485). This signal is then transmitted to a readout meter, PLC, or data acquisition system for display, recording, and control.
Why Choose Ningbo Saintbond LC104 Wire Rope Tension Load Cell?
Proven Expertise: Specialized in the design and manufacture of force measurement solutions.
Customization:We offer customized end fittings, capacities, and cable lengths to perfectly match your specific application requirements.
Cost-Effective:Provides a reliable and economical solution for adding critical load monitoring capabilities to your equipment.
Global Support: Backed by a professional team offering technical support and service.
Proven Expertise: Specialized in the design and manufacture of force measurement solutions.
Customization:We offer customized end fittings, capacities, and cable lengths to perfectly match your specific application requirements.
Cost-Effective:Provides a reliable and economical solution for adding critical load monitoring capabilities to your equipment.
Global Support: Backed by a professional team offering technical support and service.
In summary, the Ningbo Saintbond Wire Rope Tension Load Cell is a vital tool for engineers and operators who prioritize safety, efficiency, and data-driven decision-making in their wire rope applications.

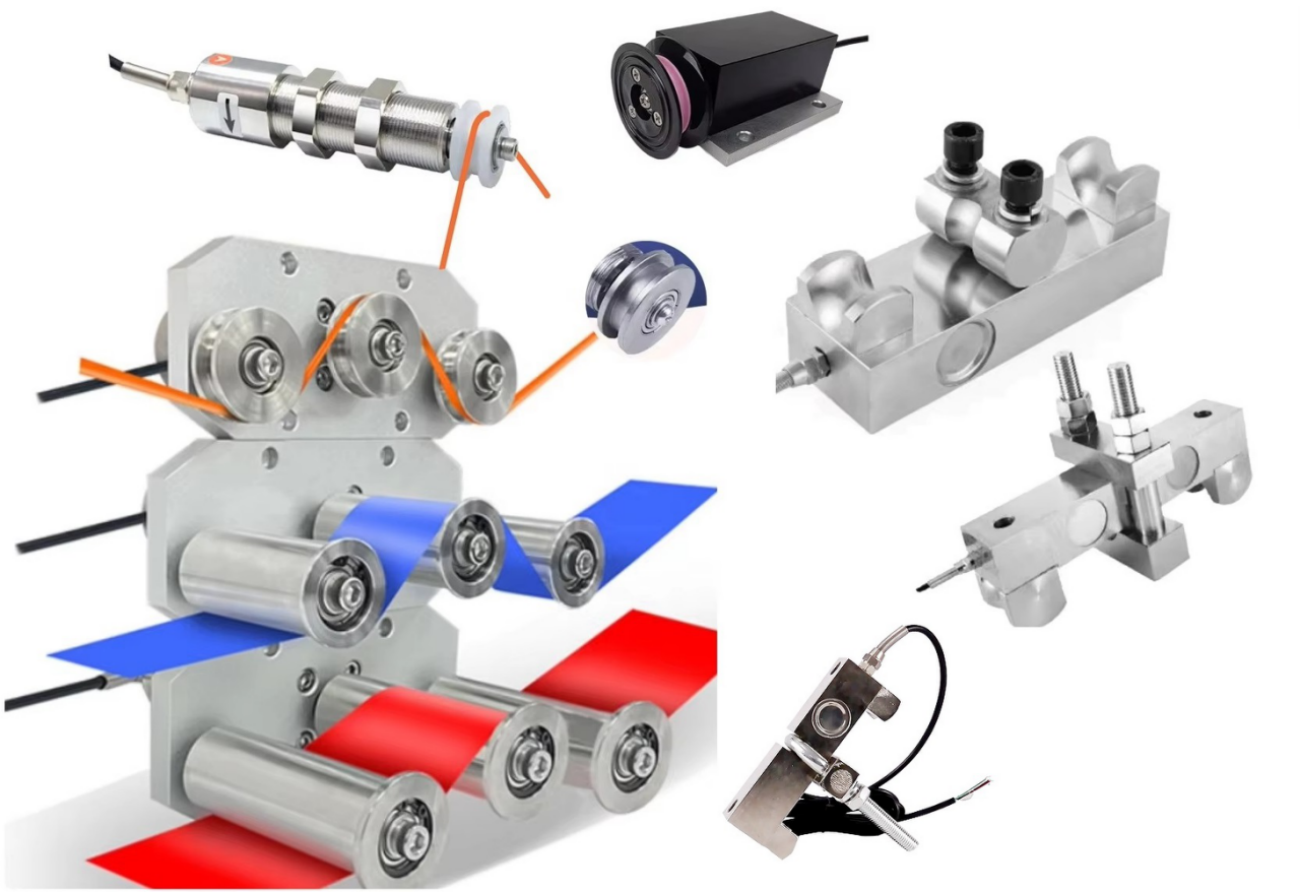

Multiple Models Available:
