Wifi Load Cell
LCSW6M-1
Multiple Wireless Load Cell Interface Controller Software
Saintbond’s Multiple Wireless Load Cell Interface Controller Software package is a versatile, user friendly wireless load cell control, display and data logging tool designed for use on the Windows PC platforms.
Saintbond’s Multiple Wireless Load Cell Interface Controller Software package is a versatile, user friendly wireless load cell control, display and data logging tool designed for use on the Windows PC platforms.
Quantity:
Multiple Wireless Load Cell Interface Controller Software
Saintbond’sMultiple Wireless Load Cell Interface Controller Software package is a versatile, user friendly wireless load cell control, display and data logging tool designed for use on the Windows PC platforms. ( web loadlink, compression load cell with digital readout, wifi load cell, wireless load cell interface )
Using Multiple Wireless Load Cell Interface Controller Software for weighing and force measurement applications has many advantages over cabled load cell connections. Not only because of being wireless but in some cases is more economical than running conduit, digging trenches, or installing wire trays for the load cell cables. Going wireless also opens the options to easily connect various types of sensors in the same network.
LCSW6M Wifi Load Cell Features:
✅ Rugged construction.
✅ Accuracy: 0.05% of capacity.
✅ All functions and units are clearly display on the LCD (with backlighting) .
✅ Digits are 1 inch high for easy distant viewing.
✅ Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
✅ Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
✅ All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
✅ Infrared Remote control easier to calibration(with password).
✅ Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.
✅ 4 local mechanical keys :“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”.
✅ Low battery warning;
✅ Hazardous area Zone 1 and 2
✅ Built-in-display option
✅ Available with a range of displays to suit each application
✅ Environmentally sealed to IP67 or IP68
✅ Can be used singularly or in sets
LCSW6M Wifi Load Cell Specifications:
| Rate Load: | 1/3/5/12/25/35/50/55/85/100/150/200/250/300/500t | ||
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | System Range: | 100~300m(Open Area),800~1500m (Optional) |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 430MHz to 470MHz |

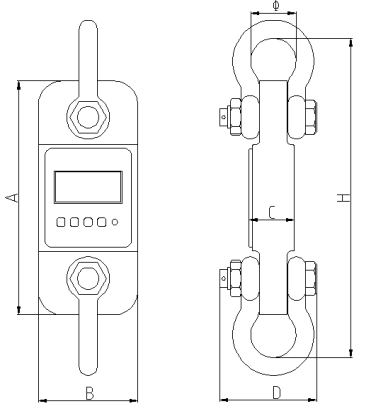

LCSW6M Wifi Load Cell Dimension:
| Model | Cap. | Div | A | B | C | D | φ | H | Material |
| ( Ton ) | (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| LCSW6-01 | 1t | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW6-02 | 2t | 1 | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
| LCSW6-03 | 3t | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| LCSW6-05 | 5t | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| LCSW6-10 | 10t | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy /Stainless Steel |
| LCSW6-20 | 20t | 10 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy /Stainless Steel |
| LCSW6-30 | 30t | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy /Stainless Steel |
| LCSW6-50 | 50t | 20 | 465 | 150 | 100 | 305 | 184 | 930 | Alloy /Stainless Steel |
| LCSW6-55 | 55t | 20 | 465 | 150 | 100 | 305 | 188 | 940 | Alloy /Stainless Steel |
| LCSW6-85 | 85t | 50 | 500 | 180 | 120 | 365 | 200 | 1050 | Alloy /Stainless Steel |
| LCSW6-100 | 100t | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy /Stainless Steel |
| LCSW6-150 | 150t | 50 | 680 | 303 | 140 | 400 | 252 | 1311 | Alloy /Stainless Steel |
| LCSW6-200 | 200t | 100 | 700 | 350 | 144 | 440 | 280 | 1380 | Alloy /Stainless Steel |
| LCSW6-250 | 250t | 100 | 700 | 350 | 144 | 500 | 305 | 1880 | Alloy /Stainless Steel |
| LCSW6-300 | 300t | 200 | 806 | 426 | 150 | 500 | 305 | 1955 | Alloy /Stainless Steel |
| LCSW6-500 | 500t | 200 | 930 | 570 | 150 | 500 | 305 | 2065 | Alloy /Stainless Steel |
(Dimensions shown are nominal and subject to tolerances)
LCSW6M Wifi Load Cell Weight:
| Model | 1t | 2t | 3t | 5t | 10t | 20t | 30t | 50/55t |
| Weight(kg) | 1.6 | 1.7 | 2.1 | 2.7 | 10.4 | 17.8 | 25 | 39 |
| Weight with shackles(kg) | 3.1 | 3.2 | 4.6 | 6.3 | 24.8 | 48.6 | 87 | 128 |
| Model | 85t | 100t | 150t | 200t | 250t | 300t | 500t | |
| Weight(kg) | 50 | 81 | 90 | 95 | 95 | 125 | 210 | |
| Weight with shackles(kg) | 195 | 321 | 435 | 585 | 822 | 865 | 1600 |
