Weight Transmitter Load Cell
LC5413
Weight Transmitter Load Cell – High-Precision Force Measurement
Saintbond Weight Transmitter Load Cell designed for tension and compression applications, this Saintbond piezoelectric load cell offers robust construction and high accuracy. Saintbond piezoelectric load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Saintbond Weight Transmitter Load Cell designed for tension and compression applications, this Saintbond piezoelectric load cell offers robust construction and high accuracy. Saintbond piezoelectric load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available.
Quantity:
Weight Transmitter Load Cell – High-Precision Force Measurement
Saintbond Weight Transmitter Load Cell designed for tension and compression applications, this Saintbond piezoelectric load cell offers robust construction and high accuracy. Saintbond piezoelectric load cell ideal for industrial automation, machinery monitoring, and test stands. Features easy integration, overload protection, and corrosion-resistant materials. Provides reliable performance in demanding environments. Custom ranges available. ( piezoelectric load cell, weight transmitter load cell, Saintbond weight transmitter load cell )
LC5413 Weight Transmitter Load Cell is small in volume, strong in stability, high in precision and strong in resistance to overload, and can be used to measure the two-way force of tension and pressure. It is mainly applied to tensile pressure tester, such as test machine, hook scale, plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard and button handle tester, as well as automation equipment field and test area.
LC5413 Weight Transmitter Load Cell Features:
✅ Tension and Compression load cells
✅ Capacity:20N,...,5000N
✅ Super micro structure
✅ Stainless steel construction
✅ Environment protection class:IP65+

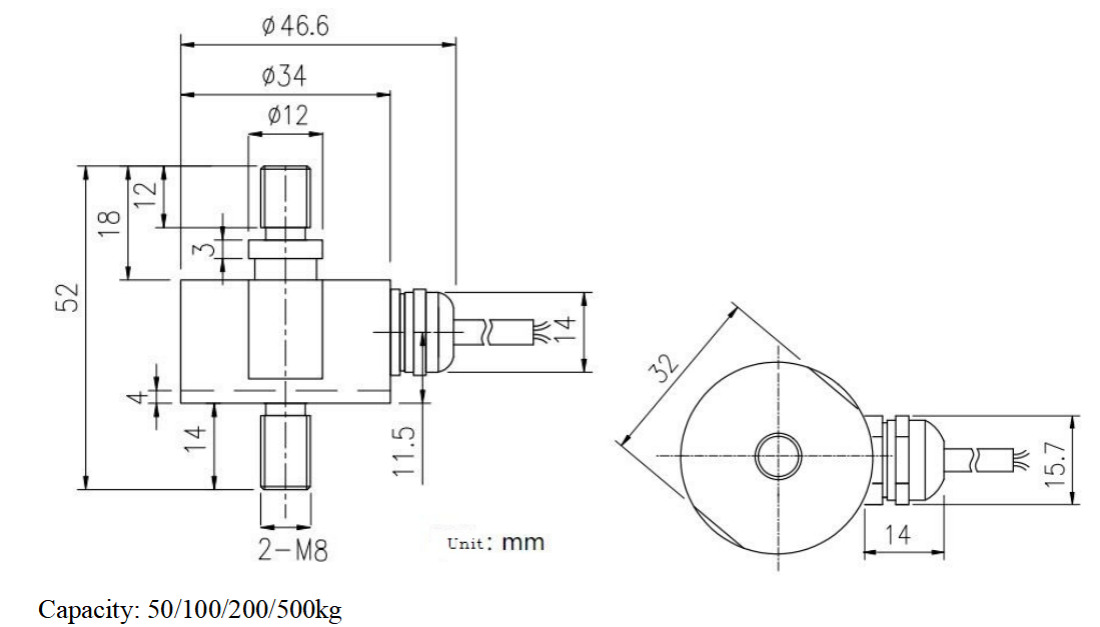

LC5413 Weight Transmitter Load Cell Dimension:(mm)
LC5413 Weight Transmitter Load Cell Technical Parameter:
| Capacity | 0-50/100/200/500kg | Material | Stainless Steel |
| Rated output | 1.5-2.0 mV/V | Output Impedance | 700±3Ω |
| Non-linearity | 0.5% F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.5 % F.S. | Recommended Excitation | 5~10V |
| Repeatability | 0.5 % F.S. | Excitation max | 15V |
| Creep(30min) | 0.1 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.05 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.05 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 750±5Ω | Cable Length | ∅4 x 3m |
