Weight Sensor Module
LC3541
Single ended weight sensor module crafted from high-strength aluminum, this single ended weight sensor module features a sturdy yet lightweight construction. The strain gauge technology provides accurate tension and compression measurements. aluminum weight sensor module's anodized surface offers excellent corrosion resistance, making it suitable for challenging environments. A perfect core component for building custom industrial scales and monitoring systems.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3541
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:10kg~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3541
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities:10kg~500kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Single ended weight sensor module crafted from high-strength aluminum, this single ended weight sensor module features a sturdy yet lightweight construction. The strain gauge technology provides accurate tension and compression measurements. aluminum weight sensor module's anodized surface offers excellent corrosion resistance, making it suitable for challenging environments. A perfect core component for building custom industrial scales and monitoring systems. ( weight sensor module, aluminum weight sensor module, single ended weight sensor module)

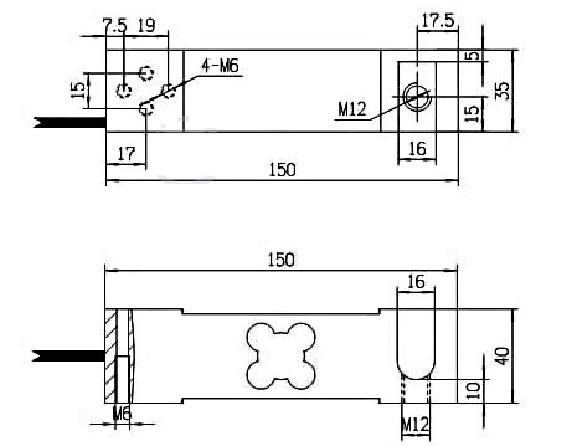

LC3541 Weight Sensor Module Dimension:
The dimension can design and produce according to customers’requirement.
LC3541 Weight Sensor Module Technical Parameter:
| Rated Load: | 10kg~500kg | ||
| Sensitivity: | (2.0±0.1%) mV/V | Insulation Resistance: | ≥5000MΩ |
| Combined Error: | ±0.05% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(5min): | ±0.05% F.S | Max. Safe Over Load: | 120%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 150%F.S |
| Temp. Effect On Zero: | ±0.03% F.S/10℃ | Recommend Excitation Vol.: | 5~12V DC |
| Temp. Effect On Span: | ±0.03% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP65 |
| Output Resistance: | 353±2Ω | Element Material: | Aluminum |
| Citation: | GB/T7551-2008/ OIML R60 | Cable: | Length=L:0.5m |
