Weight Sensor iot
LC3599
Parallel beam weight sensor iot featuring a parallel beam structure, this balance weight sensor iot delivers outstanding accuracy and repeatability. The design minimizes the impact of side forces, ensuring consistent results. Its compact size and high reliability make it a perfect component for bench scales, process control, and automated batching systems where precise weight data is critical.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3599
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3599
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 1 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
Parallel beam weight sensor iot featuring a parallel beam structure, this balance weight sensor iot delivers outstanding accuracy and repeatability. The design minimizes the impact of side forces, ensuring consistent results. Its compact size and high reliability make it a perfect component for bench scales, process control, and automated batching systems where precise weight data is critical. ( weight sensor iot, parallel beam weight sensor iot, balance weight sensor iot)

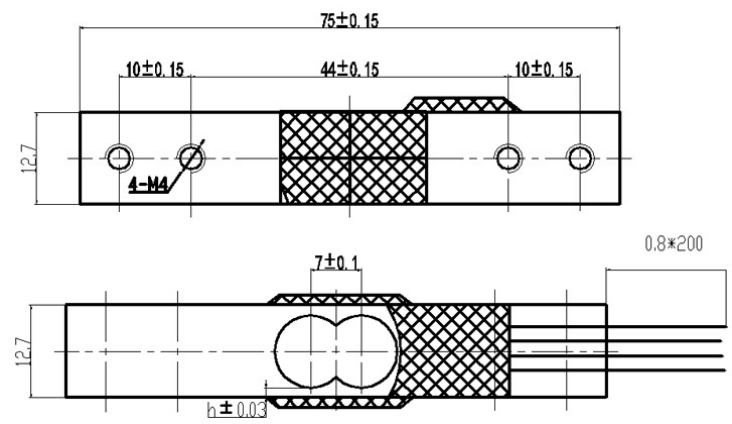

LC3599 Weight Sensor iot Dimension:
LC3599 Weight Sensor iot Technical Parameter:
| Rated Load: | 1~10kg | Four Angle Error: | 0.05%F.S |
| Comprehensive Error: | 0.02%F.S | Input Resistance: | 1000±10Ω |
| Rated Output: | 1±0.1mV/V | Output Resistance: | 1000±10Ω |
| Non-Linearity: | 0.03%F.S | Compensated Temp. Range: | -10℃~+40℃ |
| Hysteresis: | 0.03%F.S | Use Temp. Range: | -20℃~+60℃ |
| Repeatability: | 0.03%F.S | Temp. Effect On Zero: | 0.03%F.S/10℃ |
| Creep: | & 0.05%F.S/3min | Temp. Effect On Span: | 0.3%F.S/10℃ |
| Zero Balance: | -0.15±0.05%F.S | Safe Overload: | 120% |
| Dimension: | 75×12.7×12.7 | Ultimate Overload: | 150% |
