Weight Machine Load Cell
LC3604
LC3604 aluminum weight machine load cell / aluminium weight machine load cell engineered for the aluminum industry, this load cell boasts a high-strength aluminum alloy body, achieving an optimal balance between durability and light weight. It delivers precise weight data for extrusion monitoring, billet counting, and finished product checks. LC3604 aluminum weight machine load cell / aluminium weight machine load cell robust design resists industrial wear, ensuring reliable performance in demanding shop floor environments.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3604
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.3 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin:China
Item No.:LC3604
Shipping Port:Ningbbo
Payment:100% payment before shipment
Capacities: 0.3 ~10kg
Material:Aluminum Alloy
Protection Class:IP65/66
Your Application, Our Custom Load Cell Solution:
✅ Aluminum alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Wire Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Quantity:
( weight machine load cell, aluminum weight machine load cell, weight machine load cell aluminium weight machine load cell, aluminum weight machine load cell, weight machine load cell aluminium weight machine load cell, aluminum weight machine load cell, weight machine load cell aluminium )
LC3604 aluminum weight machine load cell / weight machine load cell aluminium engineered for the aluminum industry, this load cell boasts a high-strength aluminum alloy body, achieving an optimal balance between durability and light weight. It delivers precise weight data for extrusion monitoring, billet counting, and finished product checks. LC3604 aluminum weight machine load cell / weight machine load cell aluminium robust design resists industrial wear, ensuring reliable performance in demanding shop floor environments.

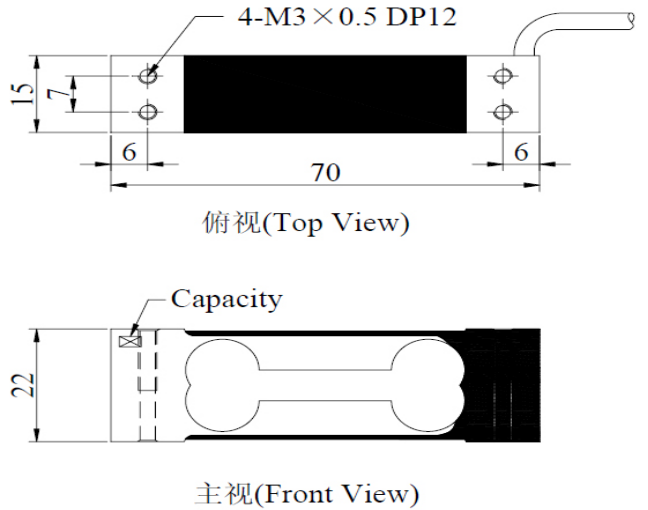

LC3604 Weight Machine Load Cell Dimension:
LC3604 Weight Machine Load Cell Key Features:
✅ Low profile and capacity ;
✅ Aluminum construction with surface anodized;
✅ Capacity: 0.3-10kg;
✅ Accuracy:0.02%R.O.;
✅ Low profile and capacity ;
✅ Aluminum construction with surface anodized;
✅ Capacity: 0.3-10kg;
✅ Accuracy:0.02%R.O.;
LC3604 Weight Machine Load Cell Usage & Applications:
✅ Retail scales
✅ Pricing scales
✅ Counting scales
✅ Balance
✅ Retail scales
✅ Pricing scales
✅ Counting scales
✅ Balance
LC3604 Weight Machine Load Cell Technical Parameter:
| Rated Capacities | 0.3/0.6/0.75/1/2/3/5/7/10kg | ||
| Rated Output | 1.0 ±0.15mV/V; | Temp. Effect On Output | 0.002 %R.O./℃ |
| 2.0 ±0.2mV/V | Temp. Effect On Zero | 0.003 %R.O./℃ | |
| Zero Balance | ±0.0200 mV/V | Input Impedance | 410±15 Ω |
| Non-linearity | 0.02 %R.O. | Output Impedance | 350±5 Ω |
| Hysteresis | 0.02 %R.O. | Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Repeatability | 0.02 %R.O. | Recommended Excitation | 5~12 VDC |
| 30mins Creep | 0.02 %R.O. | Maximum Excitation | 15 VDC |
| 30mins Return | 0.02 %R.O. | OperatingTemp.Range | -20~60 ℃ |
| Safe Overload | 150 %R.O. | Construction | Aluminum Alloy |
| Ultimate Overload | 200 %R.O. | Protection Class | IP66 / IP67 |
| Recommended Platform Size | 200×200 mm | Cable | φ3×0.3m |
