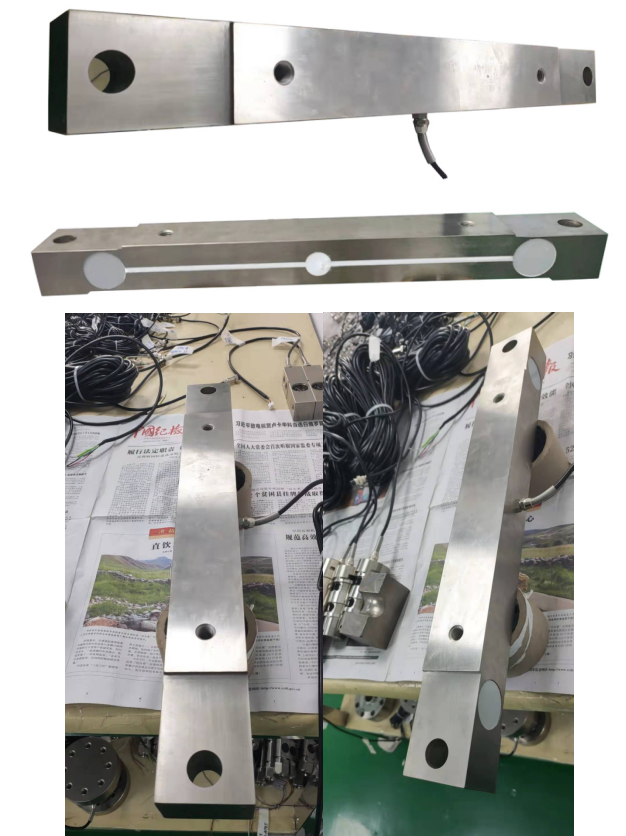

Weigh Double Beam Load Cell
LC1002
LC1002 Weigh Double Beam Load Cell / Weighing double beam load cell – High-precision, durable load cells designed for heavy-duty weighbridge applications. Built with robust materials for long-term stability, they ensure accurate weight measurement in harsh environments. LC1002 Weighing double beam load cell / double ended bridge load cell features overload protection, weather resistance, and easy installation. Ideal for truck scales, industrial weighing, and logistics. LC1002 Weighing double beam load cell / double ended bridge load cell certified for accuracy and reliability. Choose our load cells for superior performance and efficiency.
Quantity:
LC1002 Weigh Double Beam Load Cell / Weighing double beam load cell – High-precision, durable load cells designed for heavy-duty weighbridge applications. Built with robust materials for long-term stability, they ensure accurate weight measurement in harsh environments. LC1002 Weighing double beam load cell / double ended bridge load cell features overload protection, weather resistance, and easy installation. Ideal for truck scales, industrial weighing, and logistics. LC1002 Weighing double beam load cell / double ended bridge load cell certified for accuracy and reliability. Choose our load cells for superior performance and efficiency. ( Weigh Double Beam load cell, Weighing double beam load cell, double ended bridge load cell )

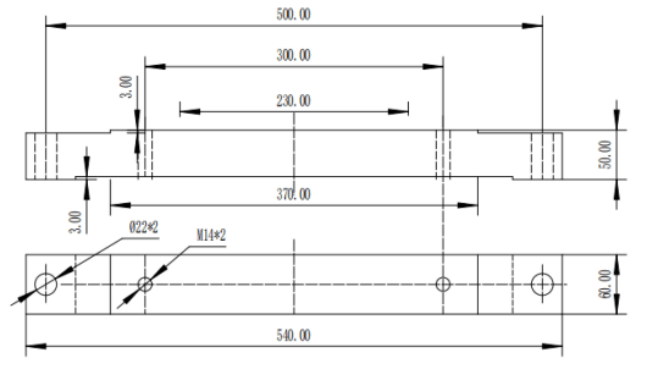

LC1002 Weigh Double Beam Load Cell Dimension: mm
LC1002 Weigh Double Beam Load Cell Technical Parameter:
| Rated Load: | 2/5/10/15/20/25t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Tco: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 380±30Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 350±2Ω | Cable: | Length=L:12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
