Web Tension Load Cell
LC104C
Rope clamp sensors / rope tension sensor with limiter, This advanced wireless load cell delivers precise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Rope clamp sensors / rope tension sensor with limiter ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy.
Quantity:
Rope clamp sensors / rope tension sensor with limiter, This advanced wireless load cell delivers precise real-time tension measurement for ropes and cables. Designed for harsh environments, it features robust construction, IP-rated weather resistance, and long-range data transmission. Ideal for lifting, rigging, marine, and safety-critical applications, Rope clamp sensors / rope tension sensor with limiter ensures operational efficiency and safety with easy integration and reliable, calibration-certified accuracy. ( rope clamp sensors, web tension load cell, rope tension sensor with limiter )
LC104C Web Tension Load Cell Features:
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;
✅ Can be fitted retrospectively;
✅ Sufficiently accurate for determining remaining design life of cranes and hoists;
✅ Available in capacities for measuring rated loads up to 310/20/30/40/50/60/100/150/200/250/300kN per fall;
✅ Can be fitted to ropes with diameters between 6 and 36 mm.
✅ IP67/IP68 rated;
✅ Simple installation - clamp on, connect up 4 wires and calibrate in situation;

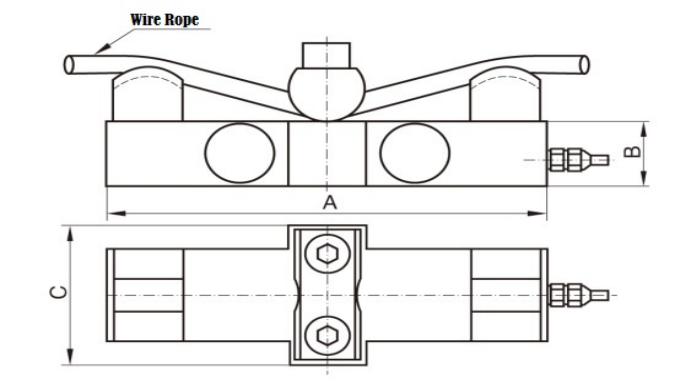

LC104C Web Tension Load Cell Dimension:mm
| Wire rope tension | Wire rope Diameter | Dimension(mm) | ||
| (kN) | (mm) | A | B | C |
| 10kN | Ø6-14 | 180 | 35 | 60 |
| 20kN | Ø10-18 | 180 | 35 | 60 |
| 40~60kN | Ø16-26 | 180 | 37 | 60 |
| 100~140kN | Ø24-36 | 180 | 37 | 60 |
| 200/250/300kN | Ø24-36 | 240 | 40 | 80 |
LC104C Web Tension Load Cell Technical Parameter:
| Wire Rope Size: | 10/20/40/50/60/100/120/140/200/250/300kN (6~40mm) | ||
| Sensitivity: | (1.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 700±2Ω | Cable: | Length=1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
